20 × 40mm Copper Wire Net Punching Rectangular Plate Light Weight Type

20 × 40mm Copper Wire Net Punching Rectangular Plate Light Weight Type

  • 20 × 40mm Copper Wire Net Punching Rectangular Plate Light Weight Type
  • 20 × 40mm Copper Wire Net Punching Rectangular Plate Light Weight Type
20 × 40mm Copper Wire Net Punching Rectangular Plate Light Weight Type
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-56-10
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Air Filter Mesh Plate Thickness (mm): 1.2mm
MOQ: 10 Rolls Processing Service: Bending,
Machinery Test Report: Provided Packing: Woven Bag
Material: Copper Plate Surface Treatment: Galvanized Plated
Use: Filter Protective Net Support Application: Construction, Highway And Bridge Are Used As Reinforcement.
High Light:

20 × 40mm copper wire net


punching copper wire net


rectangular copper wire mesh

20 × 40 Mm Punching Rectangular Copper Plate Net Light Weight Type Air Filter Mesh


1. Product introduction


  Plastic mesh is divided into drafting mesh and non drafting mesh. The plastic drafting net equipment is composed of extruder, rotary die cooling, shaping, traction, winding and other auxiliary machines. According to the special requirements of the product series, different configurations are adopted, which are suitable for the production of plastic drafting nets with different functions, such as drafting nets, non netting nets, plane water filtering nets, fence nets, fence nets, gardening and agricultural nets, engineering nets, stretching nets, packaging nets, fruit and vegetable net bags and mesh bags.



2. Parameter table


LWD(mm) SWD(mm) Strand Width Strand Gauge %Free Area Approx.Kg/m2
6.05 3.38 0.5 0.8 50 2.1
10.24 5.84 0.5 0.8 75 1.2
10.24 5.84 0.9 1.2 65 3.2
3.80 2.10 0.8 0.6 46 2.1
14.20 4.80 1.8 0.9 52 3.3
24.40 7.10 2.4 1.1 57 3.4
23.20 5.80 3.2 1.5 43 6.3
32.70 10.90 3.2 1.5 59 4
33.50 12.40 2.3 1.1 71 2.5
42.90 14.20 4.6 2.7 58 8.6
39.10 18.30 4.7 2.7 60 7.6
43.20 17.08 3.2 1.5 69 3.2
69.80 37.10 5.5 2.1 75 3.9


3. Product application



  It can be used as sound-absorbing material for ceiling and wallboard of buildings; It can be used for exquisite decorative orifice plates of building stairs, balconies and environmental protection tables and chairs; It can be used for the protective cover of mechanical equipment, gorgeous speaker net cover, grinding screen, ore screen and I-shaped screen for grain, feed and mine, stainless steel fruit blue, food cover, fruit tray and other kitchenware for kitchen equipment, as well as the shelf net, decorative exhibition stand for shopping malls, ventilation net for grain depots, and water seepage filter screen for football field lawn. Punching net is also widely used in electronic industry, such as dust-proof and sound insulation cover of sound, Product features: easy to process and shape · can be painted or polished · easy to install · eye-catching appearance · plates of various thicknesses · multiple selected apertures and arrangement modes · good sound absorption effect · lighter weight · longer service life · accurate size punching mesh is also widely used in chemical machinery, pharmaceutical equipment, food and beverage machinery, cigarette machinery, harvester Dry cleaning machine, ironing table, silencing equipment, refrigeration equipment (central air conditioning) speaker, handicraft production, papermaking, hydraulic accessories, filtration equipment and other industries.


4. Product advantages


1. High pressure, good straightness, stainless steel, without any burr, long service life.

2. It is made of steel plate by stamping and stretching; It is divided into steel mesh and stainless steel mesh; Beautiful and generous, firm and durable.

3. Steel mesh for slope protection has the advantages of high tensile strength, firm overall structure, light weight, convenient construction and low price.

4. The steel mesh for slope protection adopts 100 knife light steel mesh. The surface of the steel mesh is composed of uniform diamond mesh. The metal wire stems constituting the diamond mesh are overlapped and connected up and down. The surface is fish scale shaped, flat mesh surface, sprayed with Red Antirust Paint and placed in a cylindrical state

5. The special steel plate mesh for ceiling is a kind of metal plate mesh. The metal plates of various materials are cut by professional machinery to expand the length of the original steel plate to several times to dozens of times. It also increases the strength and hardness of the steel plate and reduces its own weight. The air can flow through the mesh without waste and reduces the cost.


5.Packing method


  Due to the large area of steel mesh, it is not as easy to pack as ordinary goods. It needs a series of processes. The following four steps are the whole process of steel mesh packaging. 1. Fabrication of steel plate mesh: make the skid frame in the population section of the chain conveyor: place the corresponding number and size of longitudinal and transverse beams on the chain frame according to the packaging specifications, and then operate the pneumatic nailing machine to fix them. According to the requirements of packaging form, when the side wooden frame is transported forward, the bottom plate and packaging paper can be placed, and the bottom plate can be moved manually, The wrapping paper is fed by the top paper distributor, cut and laid. 2. Placing steel mesh: the skid frame is transported forward to the lifting position of the transportation training frame, waiting for the steel mesh to be placed. The steel mesh is lifted out of the roller table by the disaster Tong through the half stack taking out device, and transferred horizontally to the skid frame for placement. 3. The steel mesh shall be bundled. The steel mesh shall be transported to the downstream working position, wrapped with paper, covered with panels and manually inserted into the side guard plate in sequence, and then the semi-automatic baler shall be operated for transverse and longitudinal bundling. 4. Steel mesh bearing, labeling and warehousing. The bundled plate package is transferred to the side plate transport chain, the quality is weighed by the digital load-bearing device, and the quality data is input into the printer and communicated with the production management computer The product label is printed together with the production data of the steel plate mesh, and the plate package can be transported to the warehouse after being labeled.


6. Production process

 At present, we use the advanced production equipment of wkc-2000 CNC punch in China. Stepping servo motor product feeding and PLC logic control make the product accuracy reach / -0.15mm, and implement standardized management. It can punch plates within the range of 10mm-0.2mm.

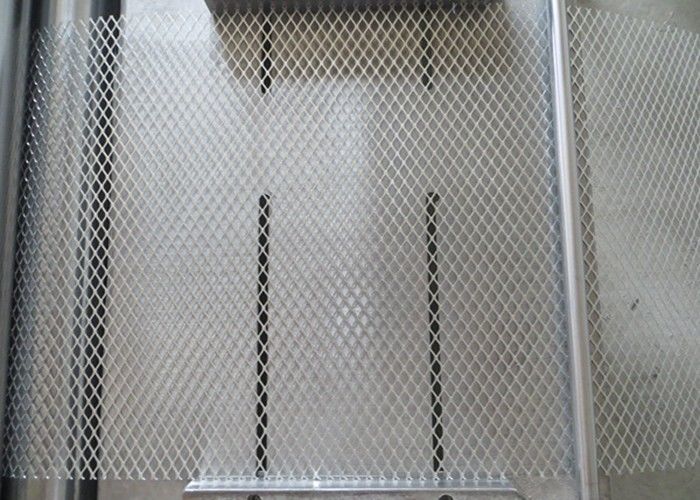

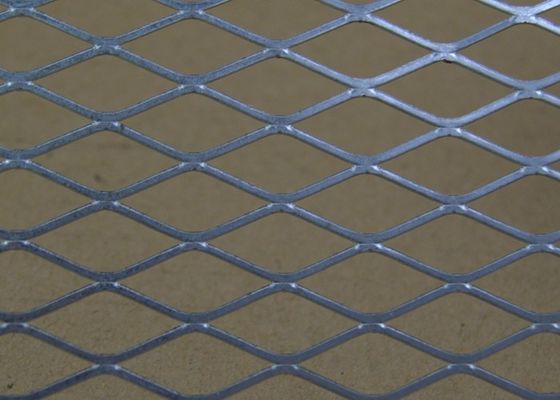

20 × 40mm Copper Wire Net Punching Rectangular Plate Light Weight Type 020 × 40mm Copper Wire Net Punching Rectangular Plate Light Weight Type 120 × 40mm Copper Wire Net Punching Rectangular Plate Light Weight Type 2
