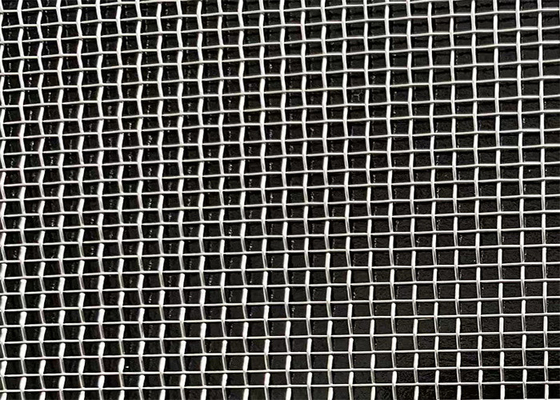

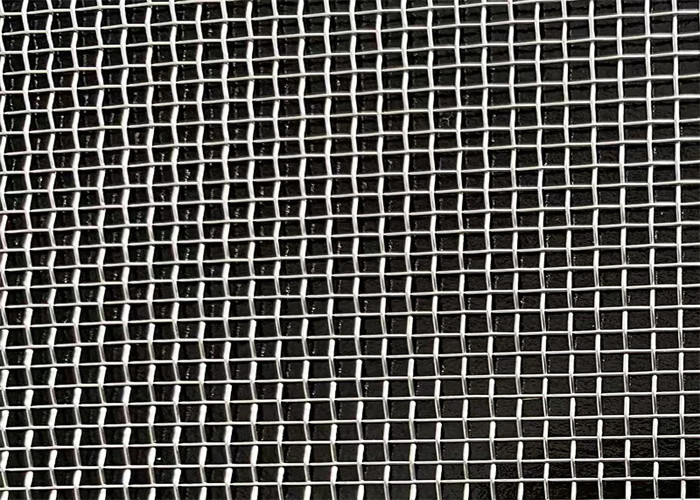

Corrosion Resistant Vibrating Screen Mesh Woven For Metal Sand Field

Corrosion Resistant Vibrating Screen Mesh Woven For Metal Sand Field

  • Corrosion Resistant Vibrating Screen Mesh Woven For Metal Sand Field
  • Corrosion Resistant Vibrating Screen Mesh Woven For Metal Sand Field
Corrosion Resistant Vibrating Screen Mesh Woven For Metal Sand Field
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-54-57
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Air Filter Mesh Opening Area: 60%
Technique: Woven Color: Customized
Hole Size (mm): Customized Length: 30m/roll ,50m/roll
Material: 304 316 316LStainless Steel Weave Style: Plain Weave, Twill Weave, Dutch Plain Weave, Dutch Twill Weave
Applicable Industries: Food, Medicine, Chemical Industry, Coal Mine Application: Component Of Filter, Supporting And Protection
High Light:

corrosion resistant vibrating screen mesh


sand field woven vibrating screen mesh


corrosion resistant vibrating screen wire mesh

Corrosion-Resistant Woven Mesh For Metal Sand Field Vibrating Screen Air Filter Mesh


1. Product introduction


Woven wire mesh, also sometimes called woven wire cloth, is made by weaving strands in an up-down or up-down method to form different patterns with different gauges. Some of the most common weave patterns include: plain/square weave, rectangular weave, plain Dutch weave, twill weave Dutch weave, inter-crimp weave.


2. Parameter table

Thickness Strand Width Hole Size Note
2mm 5mm 25×50mm In Panel
Big Hole
2.5mm 5mm 30×60mm
3mm 5-10mm 40×80mm
2-3mm 5-15mm 50×100mm
3mm 20-30mm 90×200mm
3mm 20-30mm 100×250mm
0.8mm 1.5mm 5×10mm In Roll
Small Hole
0.3-1.5mm 0.3-2.5mm (2-15)mm×(3-30)mm
as you need as you need 2×3
as you need as you need 3×4
as you need as you need 4×5
as you need as you need 4×6
Mesh/inch Wire Diameter(mm)



Mesh/inch Wire diameter(mm)



2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.025 0.0385


3. Product characteristic


1) High strength and durable.
2) Allow natural light and air to circulate.
3) Low transparency.
4) Provide protection for buildings.
5) Light weight and easy installation.

4. Application


1. Sieve: Mainly used in metallurgy, coal, rubber, petroleum, chemical, pharmaceutical, automobile, ceramics, glass and other industries for solid particles, powder, screening, etc.
2. Filtration: Mainly used for mud mesh in petroleum industry, pickling mesh in chemical fiber electroplating industry and liquid gas filtration and purification.
3. Protection: It is mainly used for cement construction in civil engineering, raising chickens, ducks, geese, rabbits and zoo enclosures. Protection of machinery and equipment, highway guardrails, stadium fences, road green belt protection nets.
4. Solid: can be used in construction industry, highways and bridges as steel reinforcement and skeleton support


5. AFQ


1.Q:Can you provide free samples?
A:Sorry, Free samples are not available. But after you place the order, samples cost would be return. Which is "FREE" in some way.

2.Q:Can we have the company LOGO to be printed on the products?
A:Of course. Private Label is absolutely welcome.

3. Q: Can you give me a discount price?
A: It is depending on the volume. The larger the volume is, the more discount you can enjoy.


4.Q:How do you guarantee your quality ?
A: Our workers and technical employees are with many years experiences to ensure the products are good. After production finished,check will be made by quality inspector.


5. Q:How can you guarantee the quality of mass production is same with the sample sent to me before?
A: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.


6. Q: How can you deal with quality issues that customers feedback after receiving the goods?
A: We will follow below steps to solve the quality issues the may occur.
1) Customers take photos of unqualified goods and then our sales staff will send them to Quality Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.





Corrosion Resistant Vibrating Screen Mesh Woven For Metal Sand Field 0
Corrosion Resistant Vibrating Screen Mesh Woven For Metal Sand Field 1Corrosion Resistant Vibrating Screen Mesh Woven For Metal Sand Field 2
