L30m Corrosion Resistant Woven Wire 20 Mesh Plain Weave Stainless Steel

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-54-5

Payment & Shipping Terms:

Minimum Order Quantity:	10 rolls
Price:	Negotiable
Packaging Details:	Woven bag
Delivery Time:	3-5 work days
Payment Terms:	L/C, T/T
Supply Ability:	5000 Kilogram/Kilograms per Week

Contact Now

Detailed Product Description

Product Name:	Air Filter Mesh	Length:	30m
Mesh Thickness:	3.3mm	Weight:	4.0kgs/m2
Packing:	Woven Bag	Hole Size (mm):	Customized
Weave Style:	Plain Weave	Material:	Stainless Steel
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory	Application:	Component Of Filter, Supporting And Protection
High Light:	ss woven wire 20 mesh , plain weave woven wire 20 mesh , corrosion resistant woven metal wire mesh

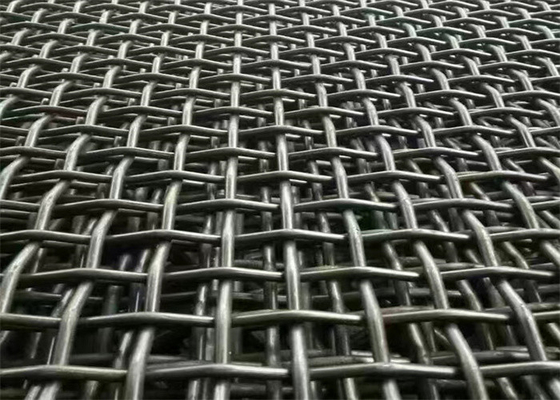

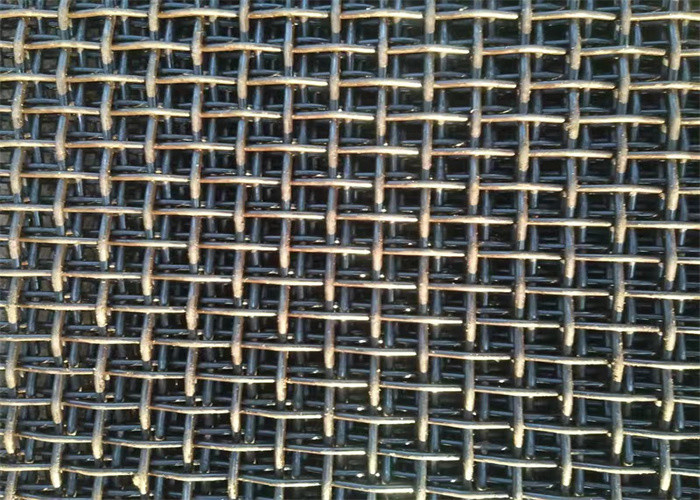

Corrosion-Resistant Plain Weave Stainless Steel Woven Mesh Air Filter Mesh

1. Product introduction

Woven wire mesh, also sometimes called woven wire cloth, is made by weaving strands in an up-down or up-down method to form different patterns with different gauges. Some of the most common weave patterns include: plain/square weave, rectangular weave, plain dutch weave, twill dutch weave, inter-crimp weave, etc.

2. Parameter table

Thickness	Strand Width		Hole Size			Note
2mm	5mm		25×50mm			In Panel Big Hole
2.5mm	5mm		30×60mm
3mm	5-10mm		40×80mm
2-3mm	5-15mm		50×100mm
3mm	20-30mm		90×200mm
3mm	20-30mm		100×250mm

0.8mm		1.5mm		5×10mm	In Roll Small Hole

0.3-1.5mm		0.3-2.5mm		(2-15)mm×(3-30)mm
as you need		as you need		2×3
as you need		as you need		3×4
as you need		as you need		4×5
as you need		as you need		4×6

Mesh/inch	Wire Diameter(mm)	Aperture (mm)	Mesh/inch	Wire diameter(mm)	Aperture (mm)
2mesh	1.80	10.90	60mesh	0.15	0.273
3mesh	1.60	6.866	70mesh	0.14	0.223
4mesh	1.20	5.15	80mesh	0.12	0.198
5mesh	0.91	4.17	90mesh	0.11	0.172
6mesh	0.80	3.433	100mesh	0.10	0.154
8mesh	0.60	2.575	120mesh	0.08	0.132
10mesh	0.55	1.990	140mesh	0.07	0.111
12mesh	0.50	1.616	150mesh	0.065	0.104
14mesh	0.45	1.362	160mesh	0.065	0.094
16mesh	0.40	1.188	180mesh	0.053	0.088
18mesh	0.35	1.060	200mesh	0.053	0.074
20mesh	0.30	0.970	250mesh	0.04	0.061
26mesh	0.28	0.696	300mesh	0.035	0.049
30mesh	0.25	0.596	325mesh	0.03	0.048
40mesh	0.21	0.425	350mesh	0.03	0.042
50mesh	0.19	0.318	400mesh	0.025	0.0385

3. Product characteristic

1) High tension: higher tension and smoother tension than ordinary polyester mesh;
2) Ultra-precision: the wire diameter and aperture are uniform, and the difference is very small;
3) Low elongation: The elongation of the wire mesh under high tension is very small;
4) High flexibility: the wire mesh will not lose its elasticity under extreme tension;
5) High corrosion resistance: the excellent corrosion resistance of stainless steel wire exceeds that of polyester fiber;

4. Application

It is mostly used in coal mountain, mining, construction, aquaculture, glass factory, petroleum, hardware products, petrochemical industry, construction machinery, protective net, barbecue net, handicraft net, food machinery net, cooking utensil net, wall net, It can also be used for grading screening of solid materials, filtration of liquids and mud, etc.
