Twill Weave 3.0mm Air Filter Mesh Acid And Alkali Resistant Metal

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-54-56

Payment & Shipping Terms:

Minimum Order Quantity:	10 rolls
Price:	Negotiable
Packaging Details:	Woven bag
Delivery Time:	3-5 work days
Payment Terms:	L/C, T/T
Supply Ability:	5000 Kilogram/Kilograms per Week

Contact Now

Detailed Product Description

Product Name:	Air Filter Mesh	Max Length:	25m
Mesh Thickness:	3.0mm	Color:	Customized
Packing:	Woven Bag	Hole Size (mm):	Customized
Weave Style:	Twill Weave	Material:	Stainless Steel
Applicable Industries:	Food, Medicine, Chemical Industry, Coal Mine	Application:	Component Of Filter, Supporting And Protection
High Light:	3.0mm air filter mesh , anti acid air filter mesh

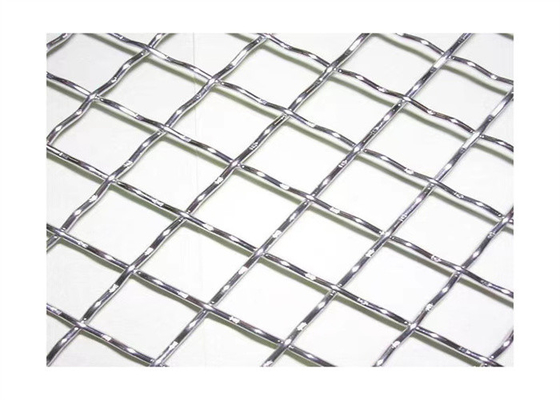

Twill Weave Acid And Alkali Resistant Metal Mesh Air Filter Mesh

1. Product introduction

Braided metal wire mesh is sometimes called braided metal wire cloth, which is made by braiding wire strands to form different patterns with different specifications through up-down or up-down methods. Some of the most common weaving patterns include plain / square weaving, rectangular weaving, plain Dutch weaving, twill Dutch weaving, curl weaving, etc

2. Parameter table

Thickness	Strand Width		Hole Size			Note
2mm	5mm		25×50mm			In Panel Big Hole
2.5mm	5mm		30×60mm
3mm	5-10mm		40×80mm
2-3mm	5-15mm		50×100mm
3mm	20-30mm		90×200mm
3mm	20-30mm		100×250mm

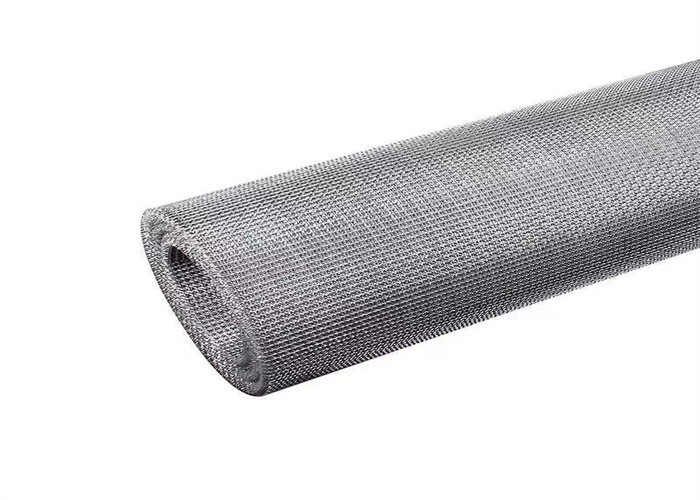

0.8mm		1.5mm		5×10mm	In Roll Small Hole

0.3-1.5mm		0.3-2.5mm		(2-15)mm×(3-30)mm
as you need		as you need		2×3
as you need		as you need		3×4
as you need		as you need		4×5
as you need		as you need		4×6

Mesh/inch	Wire Diameter(mm)	Aperture (mm)	Mesh/inch	Wire diameter(mm)	Aperture (mm)
2mesh	1.80	10.90	60mesh	0.15	0.273
3mesh	1.60	6.866	70mesh	0.14	0.223
4mesh	1.20	5.15	80mesh	0.12	0.198
5mesh	0.91	4.17	90mesh	0.11	0.172
6mesh	0.80	3.433	100mesh	0.10	0.154
8mesh	0.60	2.575	120mesh	0.08	0.132
10mesh	0.55	1.990	140mesh	0.07	0.111
12mesh	0.50	1.616	150mesh	0.065	0.104
14mesh	0.45	1.362	160mesh	0.065	0.094
16mesh	0.40	1.188	180mesh	0.053	0.088
18mesh	0.35	1.060	200mesh	0.053	0.074
20mesh	0.30	0.970	250mesh	0.04	0.061
26mesh	0.28	0.696	300mesh	0.035	0.049
30mesh	0.25	0.596	325mesh	0.03	0.048
40mesh	0.21	0.425	350mesh	0.03	0.042
50mesh	0.19	0.318	400mesh	0.025	0.0385

3. Product characteristic

1) Light weight but good strength, ideal for decoration.
2) Simple structure design makes the finished product beautiful and elegant.
3) Easy installation, durable and low maintenance cost.
4) Bright color, high temperature resistance, corrosion resistance and environmental protection.

4. Application

It is used for screening and filtration in acid and alkali environment, as mud mesh in petroleum industry, as screen filter in chemical fiber industry, and as pickling mesh in electroplating industry. Widely used in industry and construction to screen sand, filter and gas. It can also be used for the safety protection of mechanical accessories, etc., and it can also be used to replace wooden strips to make walls and ceilings. It can also make lunch box nets, coal washing nets, etc.
