15 × 25mm Rhombic Punching Steel Plate Tensile Expanded Mesh

15 × 25mm Rhombic Punching Steel Plate Tensile Expanded Mesh

  • 15 × 25mm Rhombic Punching Steel Plate Tensile Expanded Mesh
  • 15 × 25mm Rhombic Punching Steel Plate Tensile Expanded Mesh
15 × 25mm Rhombic Punching Steel Plate Tensile Expanded Mesh
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-56-8
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Air Filter Mesh Plate Thickness (mm): 0.8mm
MOQ: 10 Rolls Processing Service: Bending,
Machinery Test Report: Provided Packing: Woven Bag
Surface Treatment: Galvanized Plated Material: Stainless Steel Plate
Use: Filter Protective Net Support Application: Oil Tanker Pedal Net, Heavy Machinery And Boilers, Oil Mine Wells, Locomotives And 10000 Ton Ships
High Light:

rhombic punching steel plate


15 × 25mm punching steel plate


rhombic punched metal plate

15 × 25 Mm Punching Rhombic Steel Plate Tensile Expanded Mesh Air Filter Mesh


1. Product introduction



  The steel plate tensile mesh is named according to the material selected for the tensile mesh. For example, the stainless steel tensile mesh is called the stainless steel tensile mesh, the aluminum alloy tensile mesh is called the aluminum plate tensile mesh, and the low carbon steel tensile mesh is called the low carbon steel tensile mesh. The steel plate tensile mesh belongs to both the steel plate mesh series and the tensile mesh series.



2. Parameter table


LWD(mm) SWD(mm) Strand Width Strand Gauge %Free Area Approx.Kg/m2
6.05 3.38 0.5 0.8 50 2.1
10.24 5.84 0.5 0.8 75 1.2
10.24 5.84 0.9 1.2 65 3.2
3.80 2.10 0.8 0.6 46 2.1
14.20 4.80 1.8 0.9 52 3.3
24.40 7.10 2.4 1.1 57 3.4
23.20 5.80 3.2 1.5 43 6.3
32.70 10.90 3.2 1.5 59 4
33.50 12.40 2.3 1.1 71 2.5
42.90 14.20 4.6 2.7 58 8.6
39.10 18.30 4.7 2.7 60 7.6
43.20 17.08 3.2 1.5 69 3.2
69.80 37.10 5.5 2.1 75 3.9


3. Product application



  The application of tensile steel mesh on the external wall scaffold pedal of high-rise buildings is a steel mesh product with the best response effect from domestic users. It not only has the four characteristics of our factory's positioning of steel mesh products, anti-skid, wear-resistant, high bearing gravity and high tensile strength, but also can be used repeatedly for more than ten years. It is the best product to replace touch welded mesh pedal and bamboo wool pedal, It not only saves a lot of scaffold pedal cost for customers, but also greatly shortens the construction time


4. Product advantages


1. High pressure, good straightness, stainless steel, without any burr, long service life.

2. It is made of steel plate by stamping and stretching; It is divided into steel mesh and stainless steel mesh; Beautiful and generous, firm and durable.

3. Steel mesh for slope protection has the advantages of high tensile strength, firm overall structure, light weight, convenient construction and low price.

4. The steel mesh for slope protection adopts 100 knife light steel mesh. The surface of the steel mesh is composed of uniform diamond mesh. The metal wire stems constituting the diamond mesh are overlapped and connected up and down. The surface is fish scale shaped, flat mesh surface, sprayed with Red Antirust Paint and placed in a cylindrical state

5. The special steel plate mesh for ceiling is a kind of metal plate mesh. The metal plates of various materials are cut by professional machinery to expand the length of the original steel plate to several times to dozens of times. It also increases the strength and hardness of the steel plate and reduces its own weight. The air can flow through the mesh without waste and reduces the cost.


5.Packing method


  Due to the large area of steel mesh, it is not as easy to pack as ordinary goods. It needs a series of processes. The following four steps are the whole process of steel mesh packaging. 1. Fabrication of steel plate mesh: make the skid frame in the population section of the chain conveyor: place the corresponding number and size of longitudinal and transverse beams on the chain frame according to the packaging specifications, and then operate the pneumatic nailing machine to fix them. According to the requirements of packaging form, when the side wooden frame is transported forward, the bottom plate and packaging paper can be placed, and the bottom plate can be moved manually, The wrapping paper is fed by the top paper distributor, cut and laid. 2. Placing steel mesh: the skid frame is transported forward to the lifting position of the transportation training frame, waiting for the steel mesh to be placed. The steel mesh is lifted out of the roller table by the disaster Tong through the half stack taking out device, and transferred horizontally to the skid frame for placement. 3. The steel mesh shall be bundled. The steel mesh shall be transported to the downstream working position, wrapped with paper, covered with panels and manually inserted into the side guard plate in sequence, and then the semi-automatic baler shall be operated for transverse and longitudinal bundling. 4. Steel mesh bearing, labeling and warehousing. The bundled plate package is transferred to the side plate transport chain, the quality is weighed by the digital load-bearing device, and the quality data is input into the printer and communicated with the production management computer The product label is printed together with the production data of the steel plate mesh, and the plate package can be transported to the warehouse after being labeled.


6. Production process


  Cleaning of punching net plate surface: the process of punching net requires the use of lubricant, but we also have a degreasing process, which can remove the traces on its surface, make the punching net appear clean, and facilitate some surface treatment work, such as punching net bending, drum, welding, punching angle, forming, labeling, packaging, pricking and so on.

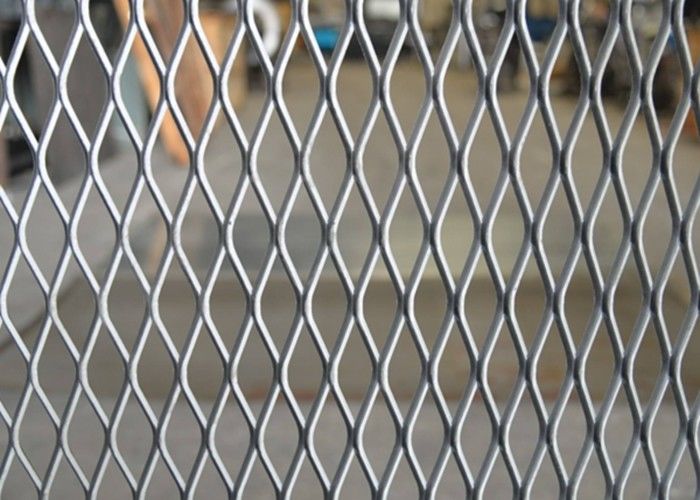

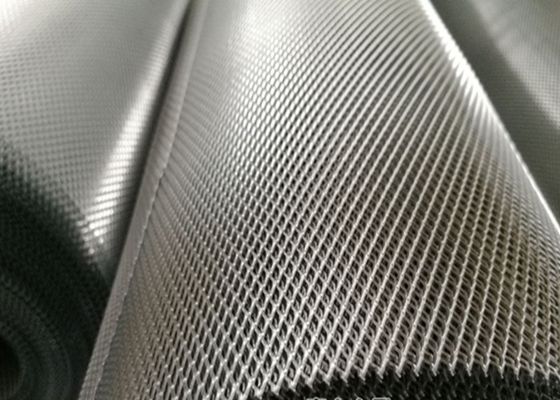

15 × 25mm Rhombic Punching Steel Plate Tensile Expanded Mesh 015 × 25mm Rhombic Punching Steel Plate Tensile Expanded Mesh 115 × 25mm Rhombic Punching Steel Plate Tensile Expanded Mesh 2
