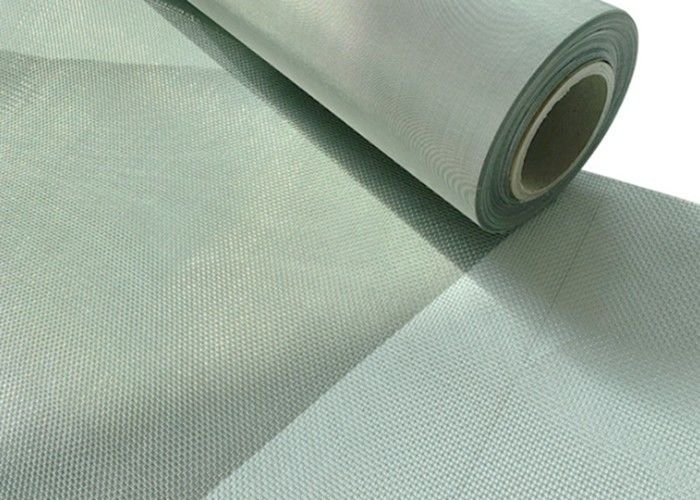

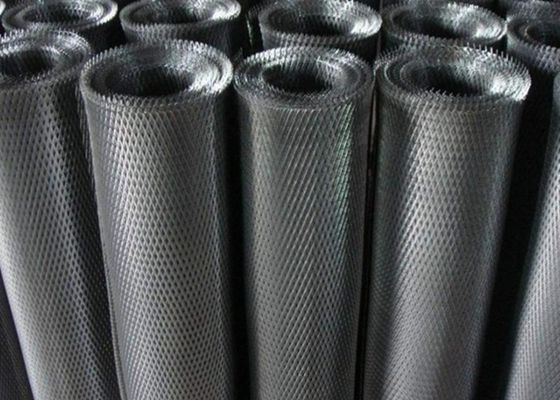

10 × 20 Mm Anti Skid Diamond Wire Mesh 0.5mm Thickness

10 × 20 Mm Anti Skid Diamond Wire Mesh 0.5mm Thickness

  • 10 × 20 Mm Anti Skid Diamond Wire Mesh 0.5mm Thickness
  • 10 × 20 Mm Anti Skid Diamond Wire Mesh 0.5mm Thickness
10 × 20 Mm Anti Skid Diamond Wire Mesh 0.5mm Thickness
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-56-7
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Air Filter Mesh Plate Thickness (mm): 0.5mm
MOQ: 10 Rolls Processing Service: Bending,
Machinery Test Report: Provided Packing: Woven Bag
Surface Treatment: Galvanized Plated Material: Hot Rolled Steel Sheet
Use: Filter Protective Net Support Application: Floor, Plant Escalator, Work Frame Pedal, Ship Deck And Automobile Floor, Etc.
High Light:

anti skid diamond wire mesh


10 × 20 mm diamond wire mesh


diamond wire mesh 0.5mm thickness

10 × 20 Mm Hot Rolled Steel Plate Anti-Skid Diamond Mesh Air Filter Mesh


1. Product introduction


   Steel mesh refers to the sheet metal formed into mesh after being processed by special machinery (steel mesh punching and shearing machine).

  Tensile steel mesh is a kind of metal mesh in the industry, also known as granary mesh, antenna mesh, filter element mesh, sound mesh, etc. As the name suggests, steel mesh refers to the sheet metal formed into mesh after being processed by special machinery (steel mesh punching and shearing machine).



2. Parameter table


LWD(mm) SWD(mm) Strand Width Strand Gauge %Free Area Approx.Kg/m2
6.05 3.38 0.5 0.8 50 2.1
10.24 5.84 0.5 0.8 75 1.2
10.24 5.84 0.9 1.2 65 3.2
3.80 2.10 0.8 0.6 46 2.1
14.20 4.80 1.8 0.9 52 3.3
24.40 7.10 2.4 1.1 57 3.4
23.20 5.80 3.2 1.5 43 6.3
32.70 10.90 3.2 1.5 59 4
33.50 12.40 2.3 1.1 71 2.5
42.90 14.20 4.6 2.7 58 8.6
39.10 18.30 4.7 2.7 60 7.6
43.20 17.08 3.2 1.5 69 3.2
69.80 37.10 5.5 2.1 75 3.9


3. matters needing attention



  Metal plate mesh is widely used. The metal plate mesh used in construction can play the role of roof reinforcement, roof insulation and so on; Highway guardrail, stadium fence, road green belt protective net; In terms of filtration, the filter protective screen is mainly used to support and protect the filter screen micropore aluminum mesh and steel mesh can be used as window screens to prevent insects and small animals from entering the room. Other uses include: guardrail, barrier, furniture, auto parts, ventilation, electronic machinery, etc.


4. Product advantages


1. High pressure, good straightness, stainless steel, without any burr, long service life.

2. It is made of steel plate by stamping and stretching; It is divided into steel mesh and stainless steel mesh; Beautiful and generous, firm and durable.

3. Steel mesh for slope protection has the advantages of high tensile strength, firm overall structure, light weight, convenient construction and low price.

4. The steel mesh for slope protection adopts 100 knife light steel mesh. The surface of the steel mesh is composed of uniform diamond mesh. The metal wire stems constituting the diamond mesh are overlapped and connected up and down. The surface is fish scale shaped, flat mesh surface, sprayed with Red Antirust Paint and placed in a cylindrical state

5. The special steel plate mesh for ceiling is a kind of metal plate mesh. The metal plates of various materials are cut by professional machinery to expand the length of the original steel plate to several times to dozens of times. It also increases the strength and hardness of the steel plate and reduces its own weight. The air can flow through the mesh without waste and reduces the cost.


5.Packing method


  Due to the large area of steel mesh, it is not as easy to pack as ordinary goods. It needs a series of processes. The following four steps are the whole process of steel mesh packaging. 1. Fabrication of steel plate mesh: make the skid frame in the population section of the chain conveyor: place the corresponding number and size of longitudinal and transverse beams on the chain frame according to the packaging specifications, and then operate the pneumatic nailing machine to fix them. According to the requirements of packaging form, when the side wooden frame is transported forward, the bottom plate and packaging paper can be placed, and the bottom plate can be moved manually, The wrapping paper is fed by the top paper distributor, cut and laid. 2. Placing steel mesh: the skid frame is transported forward to the lifting position of the transportation training frame, waiting for the steel mesh to be placed. The steel mesh is lifted out of the roller table by the disaster Tong through the half stack taking out device, and transferred horizontally to the skid frame for placement. 3. The steel mesh shall be bundled. The steel mesh shall be transported to the downstream working position, wrapped with paper, covered with panels and manually inserted into the side guard plate in sequence, and then the semi-automatic baler shall be operated for transverse and longitudinal bundling. 4. Steel mesh bearing, labeling and warehousing. The bundled plate package is transferred to the side plate transport chain, the quality is weighed by the digital load-bearing device, and the quality data is input into the printer and communicated with the production management computer The product label is printed together with the production data of the steel plate mesh, and the plate package can be transported to the warehouse after being labeled.


6. Production process


Steel mesh is made of steel plate by professional machinery. Steel mesh machinery is divided into light, medium and heavy models. Light and medium steel mesh machinery mainly make steel mesh with small aperture. Cold rolled steel plate is used as raw material. Coil can be used to produce longer mesh length. The advantage of heavy-duty steel mesh is that it can produce Hot-rolled sheets with a thickness of 2-8mm, with a maximum width of 2m, but the length of the mesh is limited by the length of the sheets.There are many processes in the manufacturing process of steel mesh. First, high-quality metal plates are used. After mechanical punching, shearing and stretching of steel mesh, the mesh of steel mesh can be formed through this process. After the steel mesh is stretched, the length and width of the steel mesh shall meet the requirements through the measurement of the inspector.After the steel mesh is inspected as qualified, the steel mesh shall be sent to the flat mesh workshop, and the steel mesh shall be flattened by double roller leveler. During the treatment, the leveling personnel shall check whether the mesh is firmly connected. Then carry out surface treatment according to the customer's requirements. The treatment methods include: oiling, galvanizing, plastic spraying, painting, etc. After passing the inspection, it can be packaged and delivered.



10 × 20 Mm Anti Skid Diamond Wire Mesh 0.5mm Thickness 010 × 20 Mm Anti Skid Diamond Wire Mesh 0.5mm Thickness 110 × 20 Mm Anti Skid Diamond Wire Mesh 0.5mm Thickness 2
