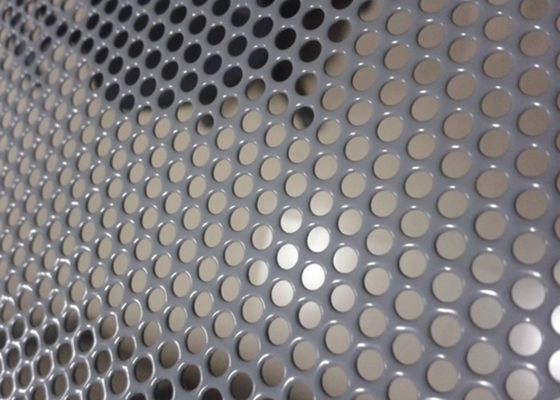

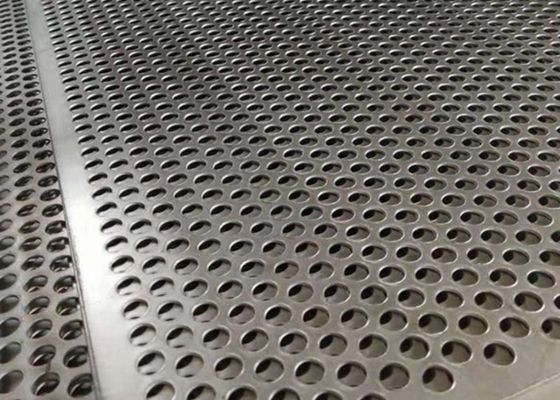

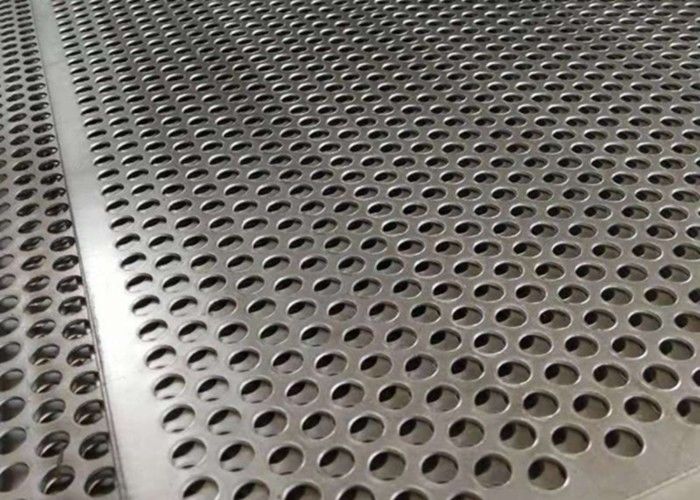

8 × 16mm Air Filter Mesh Punched Hexagonal Anti Crack

8 × 16mm Air Filter Mesh Punched Hexagonal Anti Crack

  • 8 × 16mm Air Filter Mesh Punched Hexagonal Anti Crack
  • 8 × 16mm Air Filter Mesh Punched Hexagonal Anti Crack
8 × 16mm Air Filter Mesh Punched Hexagonal Anti Crack
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-56-6
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Air Filter Mesh Plate Thickness (mm): 0.04mm
MOQ: 10 Rolls Processing Service: Bending,
Machinery Test Report: Provided Packing: Woven Bag
Surface Treatment: Galvanized Plated Material: Cold Rolled Steel Sheet
Use: Filter Protective Net Support Application: It Is Used For The Protection And Safety Of Speakers, Filter Elements, Buildings, Bridges And Various Mechanical Equipment.
High Light:

8 × 16mm air filter mesh


punched hexagonal air filter mesh


anti crack air filter mesh

8 × 16 Mm Punched Hexagonal Anti Crack Cold Rolled Steel Plate Air Filter Mesh


1. Product introduction


   Punching net adopts advanced computer numerical control equipment and is made and formed at one time, with high precision, small error and good quality. It can be used for environmental protection and noise control barriers in traffic and municipal facilities such as expressways, railways and subways in urban areas, sound-absorbing plates for sound insulation and noise reduction of building object walls, generator rooms, factory plants and other noise sources, sound-absorbing materials for ceilings and wall panels of buildings, and exquisite decorative orifice plates for stairs, balconies and environmental protection tables and chairs of buildings, It can be used for the protective cover of mechanical equipment, gorgeous speaker net cover, grinding screen, ore screen and I-shaped screen for grain, feed and mine, stainless steel fruit blue, food cover, fruit tray and other kitchenware for kitchen equipment, as well as the shelf net, decorative exhibition stand for shopping malls, ventilation net for grain depots, water seepage filter screen for football field lawn, etc. With the gradual improvement of people's understanding of punching net, punching plate will show its style in a broader field.



2. Parameter table


LWD(mm) SWD(mm) Strand Width Strand Gauge %Free Area Approx.Kg/m2
6.05 3.38 0.5 0.8 50 2.1
10.24 5.84 0.5 0.8 75 1.2
10.24 5.84 0.9 1.2 65 3.2
3.80 2.10 0.8 0.6 46 2.1
14.20 4.80 1.8 0.9 52 3.3
24.40 7.10 2.4 1.1 57 3.4
23.20 5.80 3.2 1.5 43 6.3
32.70 10.90 3.2 1.5 59 4
33.50 12.40 2.3 1.1 71 2.5
42.90 14.20 4.6 2.7 58 8.6
39.10 18.30 4.7 2.7 60 7.6
43.20 17.08 3.2 1.5 69 3.2
69.80 37.10 5.5 2.1 75 3.9


3. matters needing attention


  First of all, we can at least determine the purpose of steel mesh, that is, what it is used for? For example, plastering net is specially used for interior wall construction; The steel mesh used in heavy machinery is different.

  Secondly, we should also have some general understanding of the specification of steel mesh. The common expression of steel mesh is the number of knives. The so-called number of knives is the long diagonal distance and short diagonal distance of the hole opened by the steel mesh. The number of knives is related to the size of the steel mesh, and secondly to the length of this mesh.


4.Packing method


  Due to the large area of steel mesh, it is not as easy to pack as ordinary goods. It needs a series of processes. The following four steps are the whole process of steel mesh packaging. 1. Fabrication of steel plate mesh: make the skid frame in the population section of the chain conveyor: place the corresponding number and size of longitudinal and transverse beams on the chain frame according to the packaging specifications, and then operate the pneumatic nailing machine to fix them. According to the requirements of packaging form, when the side wooden frame is transported forward, the bottom plate and packaging paper can be placed, and the bottom plate can be moved manually, The wrapping paper is fed by the top paper distributor, cut and laid. 2. Placing steel mesh: the skid frame is transported forward to the lifting position of the transportation training frame, waiting for the steel mesh to be placed. The steel mesh is lifted out of the roller table by the disaster Tong through the half stack taking out device, and transferred horizontally to the skid frame for placement. 3. The steel mesh shall be bundled. The steel mesh shall be transported to the downstream working position, wrapped with paper, covered with panels and manually inserted into the side guard plate in sequence, and then the semi-automatic baler shall be operated for transverse and longitudinal bundling. 4. Steel mesh bearing, labeling and warehousing. The bundled plate package is transferred to the side plate transport chain, the quality is weighed by the digital load-bearing device, and the quality data is input into the printer and communicated with the production management computer The product label is printed together with the production data of the steel plate mesh, and the plate package can be transported to the warehouse after being labeled.


5. Production process


Steel mesh is made of steel plate by professional machinery. Steel mesh machinery is divided into light, medium and heavy models. Light and medium steel mesh machinery mainly make steel mesh with small aperture. Cold rolled steel plate is used as raw material. Coil can be used to produce longer mesh length. The advantage of heavy-duty steel mesh is that it can produce Hot-rolled sheets with a thickness of 2-8mm, with a maximum width of 2m, but the length of the mesh is limited by the length of the sheets.There are many processes in the manufacturing process of steel mesh. First, high-quality metal plates are used. After mechanical punching, shearing and stretching of steel mesh, the mesh of steel mesh can be formed through this process. After the steel mesh is stretched, the length and width of the steel mesh shall meet the requirements through the measurement of the inspector.After the steel mesh is inspected as qualified, the steel mesh shall be sent to the flat mesh workshop, and the steel mesh shall be flattened by double roller leveler. During the treatment, the leveling personnel shall check whether the mesh is firmly connected. Then carry out surface treatment according to the customer's requirements. The treatment methods include: oiling, galvanizing, plastic spraying, painting, etc. After passing the inspection, it can be packaged and delivered.



8 × 16mm Air Filter Mesh Punched Hexagonal Anti Crack 08 × 16mm Air Filter Mesh Punched Hexagonal Anti Crack 18 × 16mm Air Filter Mesh Punched Hexagonal Anti Crack 2
