10× 25 mm Low Carbon Steel Plate Shockproof Filter Element Special Mesh Air Filter
1. Product introduction

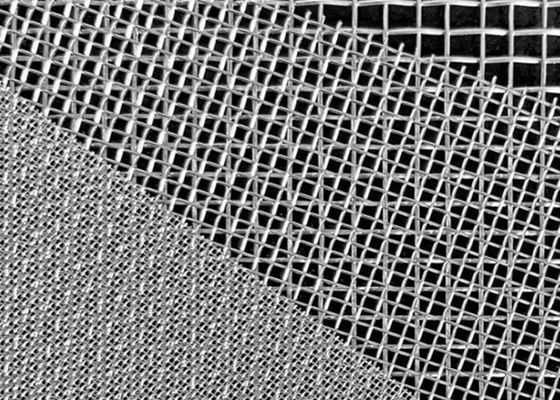

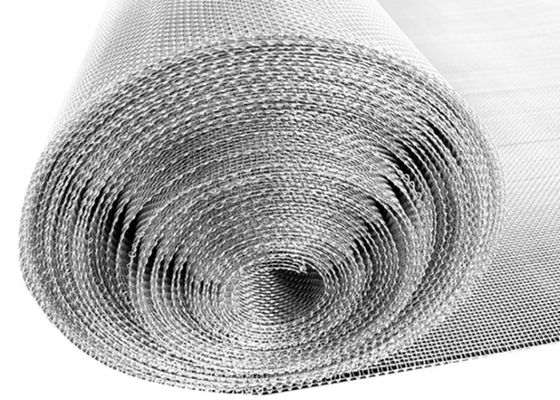

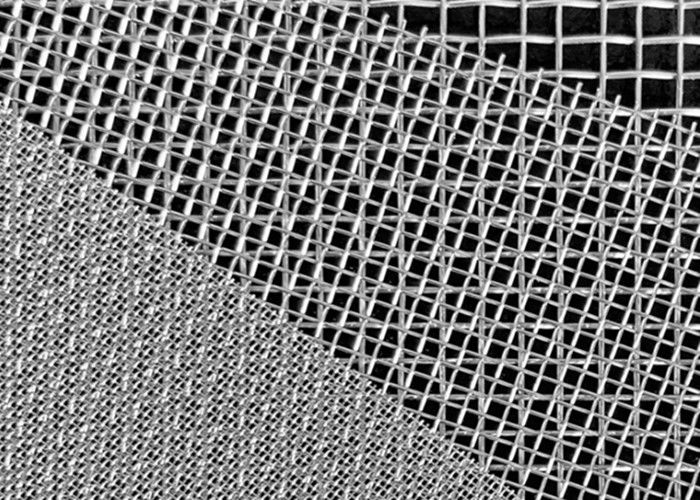

Metal plate mesh is a sheet-like object with diamond or circular mesh formed by metal plate after stamping and stretching by special machinery.
The punching net means to punch holes in the same material to meet different needs. It can be used for environmental protection and noise control barrier in traffic and municipal facilities such as highways, railways, subways and so on, and sound insulation and noise reduction panels for walls of buildings, generator rooms, factory buildings and other noise sources
2. Parameter table
| EXPENDED FLATTENED MESH |
| LWD(mm) |
SWD(mm) |
Strand Width |
Strand Gauge |
%Free Area |
Approx.Kg/m2 |
| 6.05 |
3.38 |
0.5 |
0.8 |
50 |
2.1 |
| 10.24 |
5.84 |
0.5 |
0.8 |
75 |
1.2 |
| 10.24 |
5.84 |
0.9 |
1.2 |
65 |
3.2 |
| 3.80 |
2.10 |
0.8 |
0.6 |
46 |
2.1 |
| 14.20 |
4.80 |
1.8 |
0.9 |
52 |
3.3 |
| 24.40 |
7.10 |
2.4 |
1.1 |
57 |
3.4 |
| 23.20 |
5.80 |
3.2 |
1.5 |
43 |
6.3 |
| 32.70 |
10.90 |
3.2 |
1.5 |
59 |
4 |
| 33.50 |
12.40 |
2.3 |
1.1 |
71 |
2.5 |
| 42.90 |
14.20 |
4.6 |
2.7 |
58 |
8.6 |
| 39.10 |
18.30 |
4.7 |
2.7 |
60 |
7.6 |
| 43.20 |
17.08 |
3.2 |
1.5 |
69 |
3.2 |
| 69.80 |
37.10 |
5.5 |
2.1 |
75 |
3.9 |
3. Product advantages
1. Stamping;Light weight, anti-skid, beautiful and generous, and good filtering performance.
2. It is divided into small steel mesh, steel mesh and stainless steel mesh;
3. Made by stretching, beautiful and generous, firm and durable.
4. Anti slip, wear-resistant, high tensile strength, firm mesh surface and unique hole shape
5. It is made of single-layer or multi-layer metal mesh. The number of layers and the mesh constituting the mesh depend on different service conditions and uses, with high concentricity
4. Installation method
One method is welding fixation. Welding fixation is applicable to parts that will not be disassembled permanently, such as some equipment platforms. The welding method is to directly weld the steel mesh on the steel structure support, which may damage the galvanized layer. It is necessary to brush silver powder paint for antirust treatment.
5. Production process
Steel mesh is made of steel plate by professional machinery. Steel mesh machinery is divided into light, medium and heavy models. Light and medium steel mesh machinery mainly make steel mesh with small aperture. Cold rolled steel plate is used as raw material. Coil can be used to produce longer mesh length. The advantage of heavy-duty steel mesh is that it can produce Hot-rolled sheets with a thickness of 2-8mm, with a maximum width of 2m, but the length of the mesh is limited by the length of the sheets.There are many processes in the manufacturing process of steel mesh. First, high-quality metal plates are used. After mechanical punching, shearing and stretching of steel mesh, the mesh of steel mesh can be formed through this process. After the steel mesh is stretched, the length and width of the steel mesh shall meet the requirements through the measurement of the inspector.After the steel mesh is inspected as qualified, the steel mesh shall be sent to the flat mesh workshop, and the steel mesh shall be flattened by double roller leveler. During the treatment, the leveling personnel shall check whether the mesh is firmly connected. Then carry out surface treatment according to the customer's requirements. The treatment methods include: oiling, galvanizing, plastic spraying, painting, etc. After passing the inspection, it can be packaged and delivered.
