0.4mm-0.8mm Rhombic Ss Wire Mesh Firm Durable

0.4mm-0.8mm Rhombic Ss Wire Mesh Firm Durable

  • 0.4mm-0.8mm Rhombic Ss Wire Mesh Firm Durable
  • 0.4mm-0.8mm Rhombic Ss Wire Mesh Firm Durable
0.4mm-0.8mm Rhombic Ss Wire Mesh Firm Durable
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-56-4
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Air Filter Mesh MOQ: 10 Rolls
Processing Service: Bending, Machinery Test Report: Provided
Packing: Woven Bag Surface Treatment: Galvanized Plated
Plate Thickness (mm): 0.35/ 0.4/ 0.5/ 0.6/0.8 Material: Ordinary Carbon Steel
Use: Filter Protective Net Support Application: Filter Element, Medicine, Papermaking, Filtration, Aquaculture
High Light:

rhombic ss wire mesh


0.4mm ss wire mesh


0.8mm bending stainless wire mesh

0.4mm-0.8mm Stainless Steel Rhombic Steel Mesh Is Firm And Durable Air Filter Mesh


1. Product introduction

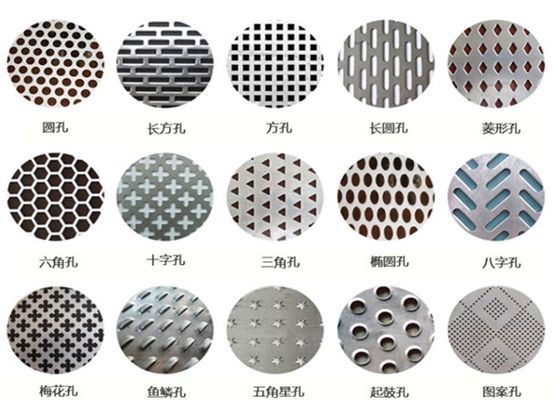

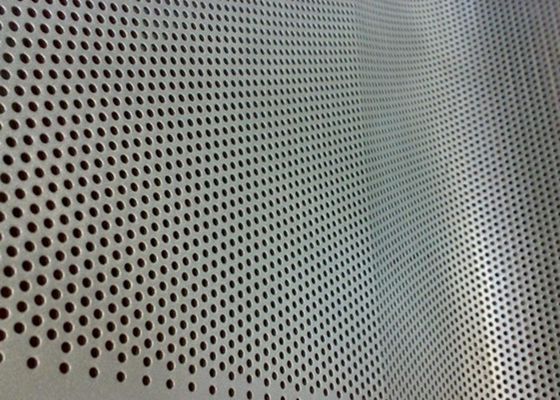

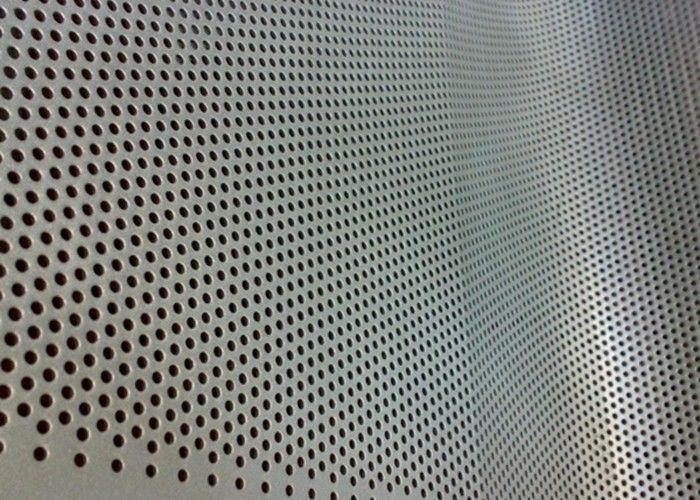

  Punching mesh refers to punching holes of different shapes on the same material to meet different needs. It can be used for environmental protection and noise control barriers in traffic and municipal facilities such as expressways, railways and subways passing through urban areas, and sound-absorbing panels for sound insulation and noise reduction of building object walls, generator rooms, factory plants and other noise sources.



2. Parameter table


LWD(mm) SWD(mm) Strand Width Strand Gauge %Free Area Approx.Kg/m2
6.05 3.38 0.5 0.8 50 2.1
10.24 5.84 0.5 0.8 75 1.2
10.24 5.84 0.9 1.2 65 3.2
3.80 2.10 0.8 0.6 46 2.1
14.20 4.80 1.8 0.9 52 3.3
24.40 7.10 2.4 1.1 57 3.4
23.20 5.80 3.2 1.5 43 6.3
32.70 10.90 3.2 1.5 59 4
33.50 12.40 2.3 1.1 71 2.5
42.90 14.20 4.6 2.7 58 8.6
39.10 18.30 4.7 2.7 60 7.6
43.20 17.08 3.2 1.5 69 3.2
69.80 37.10 5.5 2.1 75 3.9


3.  Product use


  Steel mesh series, with firm holes, long service life and wide use, is mainly used for civil construction, cement batch, mechanical equipment protection, handicraft manufacturing and high-grade speaker mesh cover. Highway guardrail, stadium fence, road green belt protective net. Heavy steel plate mesh can be used for pedal mesh of oil tank truck, working platform, escalator and walkway of heavy machinery, boiler, oil mine well, locomotive, 10000 ton ship, etc. It can also be used as reinforcement in construction industry, highway and bridge.
It is also applied to national defense, industry, railways, highways, shipbuilding, coal, light industry, textiles, building materials, agriculture and sideline industry, aquaculture, gardens, minerals, petrochemical industry and household appliances. It is also applied to integrated ceiling, door and window anti-theft, safety channel, corridor, stair baffle, tables, chairs, benches, ventilation openings, various frames and shelves carrying goods, etc.

  It is generally used for highway, railway, subway and other transportation, as well as environmental noise control barriers in municipal facilities, sound insulation and noise reduction panels for building object walls, generator rooms, factory plants and other noise sources.



4. Production process


  Steel mesh is made of steel plate by professional machinery. Steel mesh machinery is divided into light, medium and heavy models. Light and medium steel mesh machinery mainly make steel mesh with small aperture. Cold rolled steel plate is used as raw material. Coil can be used to produce longer mesh length. The advantage of heavy-duty steel mesh is that it can produce Hot-rolled sheets with a thickness of 2-8mm, with a maximum width of 2m, but the length of the mesh is limited by the length of the sheets.There are many processes in the manufacturing process of steel mesh. First, high-quality metal plates are used. After mechanical punching, shearing and stretching of steel mesh, the mesh of steel mesh can be formed through this process. After the steel mesh is stretched, the length and width of the steel mesh shall meet the requirements through the measurement of the inspector.After the steel mesh is inspected as qualified, the steel mesh shall be sent to the flat mesh workshop, and the steel mesh shall be flattened by double roller leveler. During the treatment, the leveling personnel shall check whether the mesh is firmly connected. Then carry out surface treatment according to the customer's requirements. The treatment methods include: oiling, galvanizing, plastic spraying, painting, etc. After passing the inspection, it can be packaged and delivered.

  Punching mesh mold making: the punching mesh process begins with accurate mold design, and the quality of the mold determines the quality of the punching mesh to a great extent. Leveling of punching mesh plate: due to the different stress degree of punching mesh of various specifications in the production process, there will be the possibility of deformation, so we can use the leveling machine to restore the punched deformed punching plate to its original flat state. Steel plates with a thickness of 0.8mm-12mm can be leveled.



0.4mm-0.8mm Rhombic Ss Wire Mesh Firm Durable 00.4mm-0.8mm Rhombic Ss Wire Mesh Firm Durable 10.4mm-0.8mm Rhombic Ss Wire Mesh Firm Durable 2
