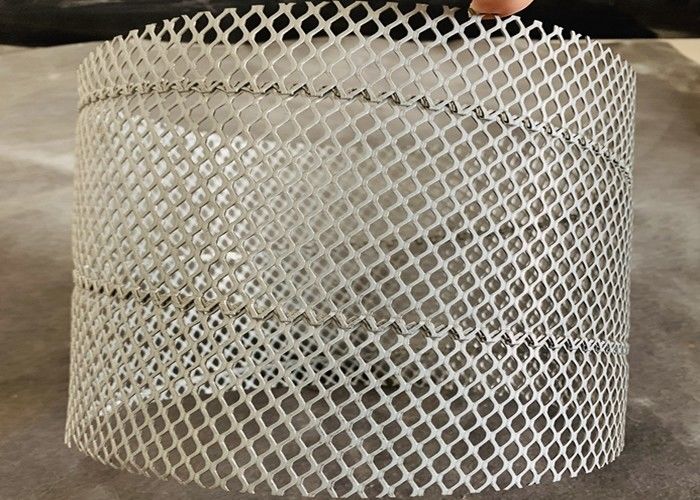

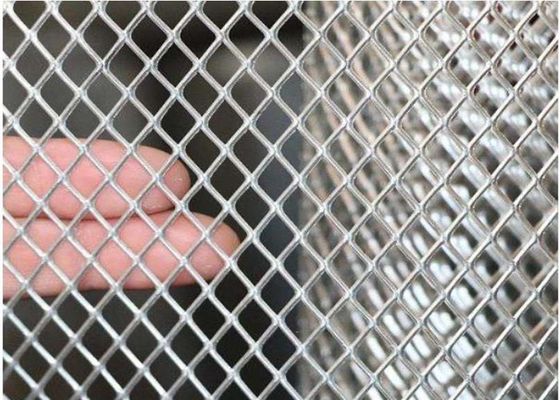

Spiral Welding Air Filter Mesh , 3mm Galvanised Wire Mesh ISO9001 Approved

Spiral Welding Air Filter Mesh , 3mm Galvanised Wire Mesh ISO9001 Approved

  • Spiral Welding Air Filter Mesh , 3mm Galvanised Wire Mesh ISO9001 Approved
  • Spiral Welding Air Filter Mesh , 3mm Galvanised Wire Mesh ISO9001 Approved
Spiral Welding Air Filter Mesh , 3mm Galvanised Wire Mesh ISO9001 Approved
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-54-4
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Air Filter Mesh Machinery Test Report: Provided
Warranty Of Core Components: Not Available Material: Carbon Steel
Hole Size (mm): 7*12, 5*10, 10*12 Packing: Woven Bag
Surface Treatment: Galvanized Plated Length: 30m
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory Application: Component Of Filter, Supporting And Protection
High Light:

3mm galvanised wire mesh

,

Spiral Welding Air Filter Mesh

,

ISO9001 Air Filter Mesh

Spiral Welding Machine Raw Material Metal Mesh Can Be Cut And Customized Air Filter Mesh



1. Product introduction

1. Consistent pore size distribution guarantees a significantly higher particle separation

2. Material: SUS304 316 316L, 316L is mainly designed for marine aquaculture and pharmacy.



2. Parameter table



Thickness Strand Width Hole Size Note
2mm 5mm 25×50mm In Panel
Big Hole
2.5mm 5mm 30×60mm
3mm 5-10mm 40×80mm
2-3mm 5-15mm 50×100mm
3mm 20-30mm 90×200mm
3mm 20-30mm 100×250mm

0.8mm 1.5mm 5×10mm In Roll
Small Hole

0.3-1.5mm 0.3-2.5mm (2-15)mm×(3-30)mm
as you need as you need 2×3
as you need as you need 3×4
as you need as you need 4×5
as you need as you need 4×6
Mesh/inch Wire Diameter(mm)

Aperture

(mm)

 Mesh/inch Wire diameter(mm)

Aperture

(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.025 0.0385



3. Product characteristic

1. Chemical filtering

2. Food and beverage for food filtering

3. Mining, main use coarse mesh, such as crimped wire mesh


4. Technology



Galvanized Surface Treatment
Cold-galvanizing
Hot-galvanize Technique

Spiral Welding Air Filter Mesh , 3mm Galvanised Wire Mesh ISO9001 Approved 0Spiral Welding Air Filter Mesh , 3mm Galvanised Wire Mesh ISO9001 Approved 1Spiral Welding Air Filter Mesh , 3mm Galvanised Wire Mesh ISO9001 Approved 2
Spiral Welding Air Filter Mesh , 3mm Galvanised Wire Mesh ISO9001 Approved 3Spiral Welding Air Filter Mesh , 3mm Galvanised Wire Mesh ISO9001 Approved 4
