High Temperature Resistant 200 Mesh Stainless Steel Screen Galvanized plated

High Temperature Resistant 200 Mesh Stainless Steel Screen Galvanized plated

  • High Temperature Resistant 200 Mesh Stainless Steel Screen Galvanized plated
  • High Temperature Resistant 200 Mesh Stainless Steel Screen Galvanized plated
High Temperature Resistant 200 Mesh Stainless Steel Screen Galvanized plated
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-54-4
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Air Filter Mesh Mesh Count: 1-635 Mesh
Certification: ISO9001 Width: 0.5-2.5m
Material: Carbon Steel Roll Size: 1M * 20 M/roll
Packing: Woven Bag Surface Treatment: Galvanized Plated
MOQ: 20 Rolls Hole Shape: Square Hole
High Light:

2.5m Heatproof mesh stainless steel screen

,

2.5m stainless steel wire mesh

,

Galvanized 200 mesh stainless steel screen

Corrosion And High Temperature Resistant Filter Material Air Filter Mesh



1. Product introduction

MaterialSS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc.
Wire diameter0.018-2.03mm
Woven styleplain weave, twill weave,dutch weave, reversed dutch weave, crimped weave
Mesh counts

Plain weave wire mesh can be woven up to 400 mesh.
Twill weave wire mesh can be woven from 30 to 635 mesh.

Packaging Detailsinner kraft, outside plastic cloth, put into wooden pallet or case
ApplicationPlain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.

2. Parameter table

Mesh/inchWire Diameter(mm)

Aperture

(mm)

Mesh/inchWire diameter(mm)

Aperture

(mm)

2mesh1.8010.9060mesh0.150.273
3mesh1.606.86670mesh0.140.223
4mesh1.205.1580mesh0.120.198
5mesh0.914.1790mesh0.110.172
6mesh0.803.433100mesh0.100.154
8mesh0.602.575120mesh0.080.132
10mesh0.551.990140mesh0.070.111
12mesh0.501.616150mesh0.0650.104
14mesh0.451.362160mesh0.0650.094
16mesh0.401.188180mesh0.0530.088
18mesh0.351.060200mesh0.0530.074
20mesh0.300.970250mesh0.040.061
26mesh0.280.696300mesh0.0350.049
30mesh0.250.596325mesh0.030.048
40mesh0.210.425350mesh0.030.042
50mesh0.190.318400mesh0.0250.0385


3. Product characteristic


1. Corrosion resistant, stainless steel grade is acid and alkali resistant.
2. High temperature resistant can bear 800 degree centigrade
3. Uniform wire diameter, error is +-2micron
4. Stable structure


4. company introduction


Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.

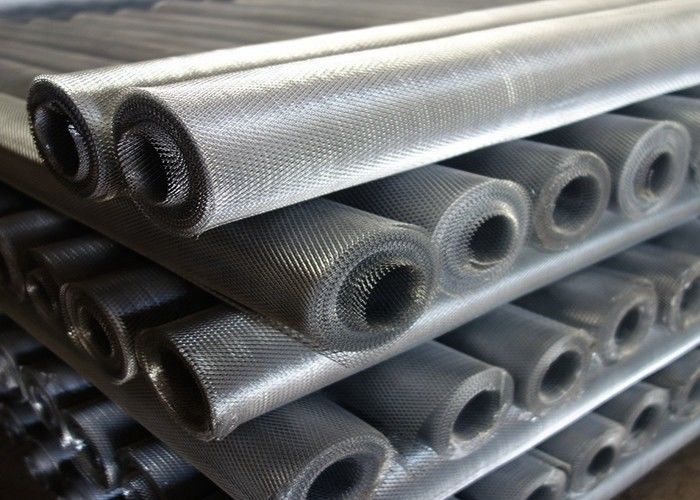

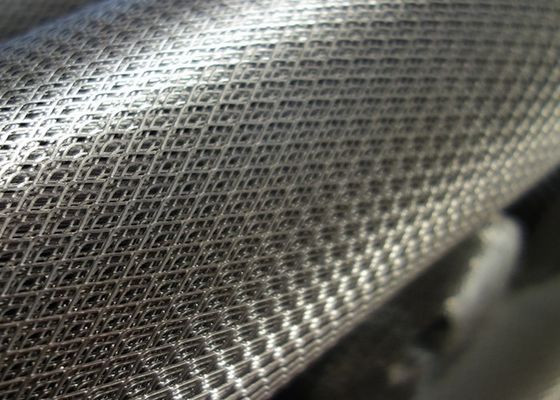

High Temperature Resistant 200 Mesh Stainless Steel Screen Galvanized plated 0High Temperature Resistant 200 Mesh Stainless Steel Screen Galvanized plated 1High Temperature Resistant 200 Mesh Stainless Steel Screen Galvanized plated 2
High Temperature Resistant 200 Mesh Stainless Steel Screen Galvanized plated 3High Temperature Resistant 200 Mesh Stainless Steel Screen Galvanized plated 4
