0.6mm Plate Thickness 304 Stainless Steel Wire Mesh For Air Ventilation

0.6mm Plate Thickness 304 Stainless Steel Wire Mesh For Air Ventilation

  • 0.6mm Plate Thickness 304 Stainless Steel Wire Mesh  For Air Ventilation
  • 0.6mm Plate Thickness 304 Stainless Steel Wire Mesh  For Air Ventilation
0.6mm Plate Thickness 304 Stainless Steel Wire Mesh  For Air Ventilation
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-54-4
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Air Filter Mesh Machinery Test Report: Provided
Material: Carbon Steel Packing: Woven Bag
Surface Treatment: Galvanized Plated MOQ: 20 Rolls
Use: Filter Plate Thickness (mm): 0.35/ 0.4/ 0.5/ 0.6
Processing Service: Bending, Decoiling, Cutting, Punching Application: Component Of Filter, Supporting And Protection
High Light:

0.6mm Air Ventilation dust filter mesh

,

0.6mm 304 stainless steel wire mesh

,

Air Ventilation 304 stainless steel wire mesh

Industrial High Standard 304 Stainless Steel Wire Filter Mesh Yarn For Air Ventilation Air Filter



1. Product introduction



1)Material: Aluminum ,galvanized sheet, stainless steel wire mesh, copper mesh
2)Pattern: Opening in the shape of diamond, hexagonal or special shape.

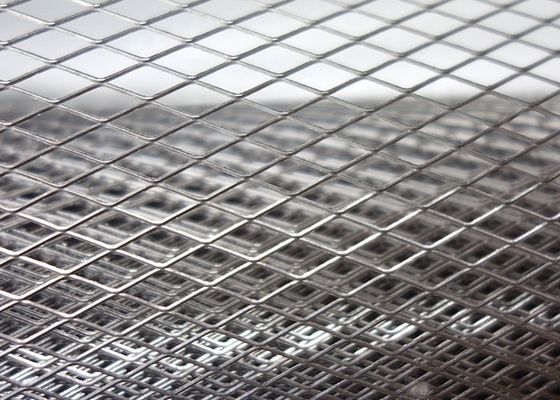

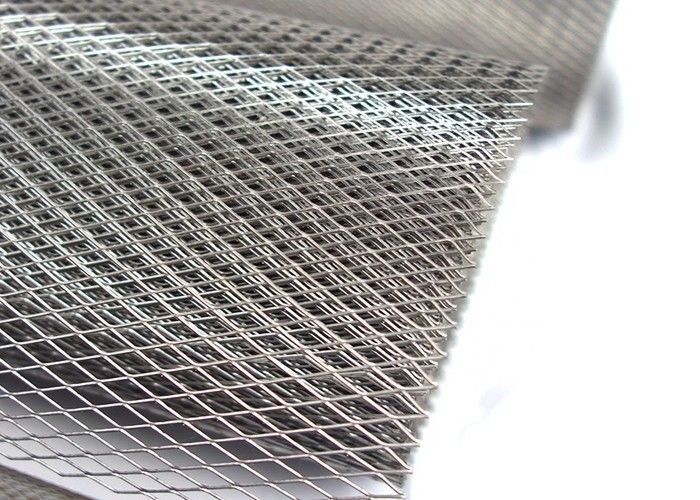

3)Features: The expanded metal mesh is strong and durable, with pleasing appearance in its shapes.

4)Sizes: Long way of mesh: 3-100mm ;

2. Parameter table

EXPENDED FLATTENED MESH
LWD(mm) SWD(mm) Strand Width Strand Gauge %Free Area Approx.Kg/m2
6.05 3.38 0.5 0.8 50 2.1
10.24 5.84 0.5 0.8 75 1.2
10.24 5.84 0.9 1.2 65 3.2
3.80 2.10 0.8 0.6 46 2.1
14.20 4.80 1.8 0.9 52 3.3
24.40 7.10 2.4 1.1 57 3.4
23.20 5.80 3.2 1.5 43 6.3
32.70 10.90 3.2 1.5 59 4
33.50 12.40 2.3 1.1 71 2.5
42.90 14.20 4.6 2.7 58 8.6
39.10 18.30 4.7 2.7 60 7.6
43.20 17.08 3.2 1.5 69 3.2
69.80 37.10 5.5 2.1 75 3.9



6.  Product use



Mainly used for filter parts, construction cement, mechanical equipment protection, handicraft manufacturing, high-end speaker nets, highway fences, stadium fences, road fences, garden carts, trolleys, trailers, steel wire mesh, etc.





8. Service



1)in rolls: water-proof paper inside and plastic film outside

2)in sheets: on the pallet, water-proof paper and plastic film outside

Delivery Detail: 10-20days based on your order quantity
