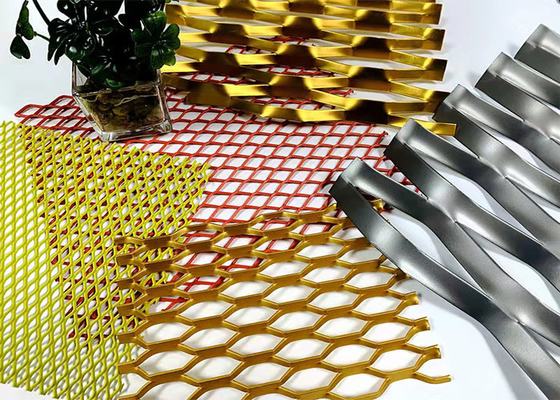

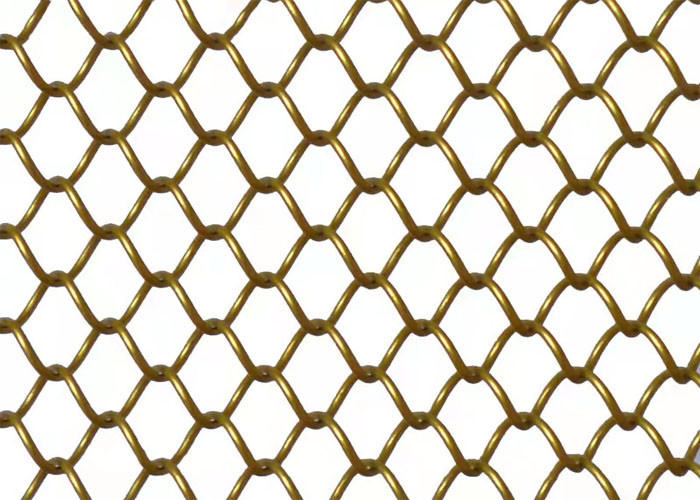

Stainless 0.4mm Decorative Steel Mesh Various Colors

Stainless 0.4mm Decorative Steel Mesh Various Colors

  • Stainless 0.4mm Decorative Steel Mesh Various Colors
  • Stainless 0.4mm Decorative Steel Mesh Various Colors
Stainless 0.4mm Decorative Steel Mesh Various Colors
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-04-013
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: >=10 Sets $72.00
Packaging Details: wooden box packing Customized by customer requires
Delivery Time: 10-15 work days 1 - 100 Set
Payment Terms: L/C, T/T
Supply Ability: 500 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: Metal Decorative Mesh MOQ: 10 Rolls
Material: Stainless Steel Packing: Binding Rope
Workmanship: Plastic Spraying Plate Thickness (mm): 0.4/ 0.5/ 0.6/0.8
Use: Decorative Exterior Paint Colour: Silver, White, Black, Red, Etc
Pass: Galvanizing, Painting And Plastic Spraying Application: Pedal And Protection Of Building Platform
High Light:

0.4mm decorative steel mesh


plastic spraying stainless decorative steel mesh


0.4mm metal decorative mesh

Various Colors Stainless Steel Metal Mesh Metal Decorative Mesh


1. Product Introduction


  Metal expanded mesh is a metal porous mesh surface that expands metal materials to two to ten times the original length. It is another name for steel plate mesh by southerners in China, also known as metal stretched mesh, steel plate stretched mesh, stretched steel plate mesh, expanded steel plate mesh and metal plate mesh.


2. Parameter table


LWD(mm) SWD(mm) Strand Width Strand Gauge %Free Area Approx.Kg/m2
6.05 3.38 0.5 0.8 50 2.1
10.24 5.84 0.5 0.8 75 1.2
10.24 5.84 0.9 1.2 65 3.2
3.80 2.10 0.8 0.6 46 2.1
14.20 4.80 1.8 0.9 52 3.3
24.40 7.10 2.4 1.1 57 3.4
23.20 5.80 3.2 1.5 43 6.3
32.70 10.90 3.2 1.5 59 4
33.50 12.40 2.3 1.1 71 2.5
42.90 14.20 4.6 2.7 58 8.6
39.10 18.30 4.7 2.7 60 7.6
43.20 17.08 3.2 1.5 69 3.2
69.80 37.10 5.5 2.1 75 3.9


3. Product application



  Steel grating is specially developed for the application of mining industry. It solves the problem of mineral splashing on the plate surface. This series of steel grating has a nominal size of 50 * 60MM, allowing most splashed materials to pass through, so as to ensure the cleanness and safety of the plate surface. This product is often designated for the plate surface in the crushing system, walkways on the conveying line, ball mills, processing plants and operation stations


4. Product advantages


Light weight, good rigidity and high strength; 3.0mm thick aluminum plate weighs 8kg per square meter, and its tensile strength is 100-280n/mm2.



5. Production process



 We can use the leveler to restore the punched and deformed punching plate to its original flat state. Plate thickness of 0.8 mm-12 mm steel plate can be levelled. And cleaning the punch requires the use of lubricant, but we also have a deoiling process to remove the traces on its surface, so that the hole plate appears clean. In addition to customer reservation, we can also provide a series of follow-up processing for stainless steel piercing Mesh, iNCLUDING: leveling, cutting, labeling, packaging, deoiling, deburring, molding, annealing, painting, electroplating, welding, polishing, bending, winding, etc.


6. Installation method


   Through the installation hole directly installed with screws, in the Piercing Mesh, stainless steel piercing plate around the installation hole, directly fixed in the late. By bending and sticking to the equipment that needs to be installed, bending not only increases the strength of the plate, but also makes it easier to install. through the welding process, directly to the piercing plate welding bracket, spray plastic eyes, so that the front looks very beautiful.


7. Matters Needing Attention


 After cleaning, care should be taken to avoid secondary pollution of the punching net and keep the punching net clean and tidy. First of all, the net in the washing must not use acidic or alkaline cleaning agent to clean, to clean metal cleaning agent.


8. Packing method


 Baling with packing belt is generally applicable to relatively neat steel grating; The screw rod is fixed. Four screw rods are transmitted through the aperture of the steel grating and locked with screws; Pallet guarantee, generally for export packing. It is mainly determined according to the customer's situation. If there are not many goods and there is no need to load and unload with forklift, it is generally convenient to bulk. On the contrary, there are more goods, and it will be more convenient to use forklift for loading and unloading. In short, for the convenience of customers, it is better to protect the products from damage during transportation.


Stainless 0.4mm Decorative Steel Mesh Various Colors 0Stainless 0.4mm Decorative Steel Mesh Various Colors 1

Stainless 0.4mm Decorative Steel Mesh Various Colors 2

Stainless 0.4mm Decorative Steel Mesh Various Colors 3

Stainless 0.4mm Decorative Steel Mesh Various Colors 4


Stainless 0.4mm Decorative Steel Mesh Various Colors 5
