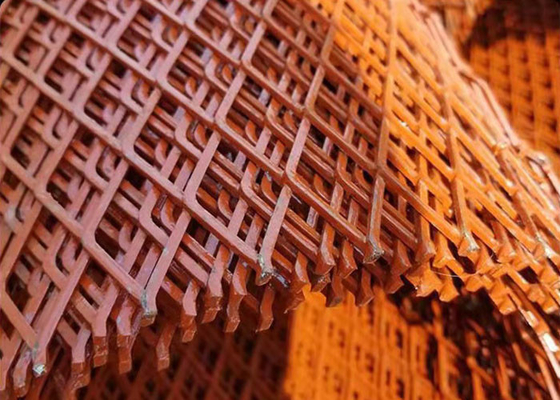

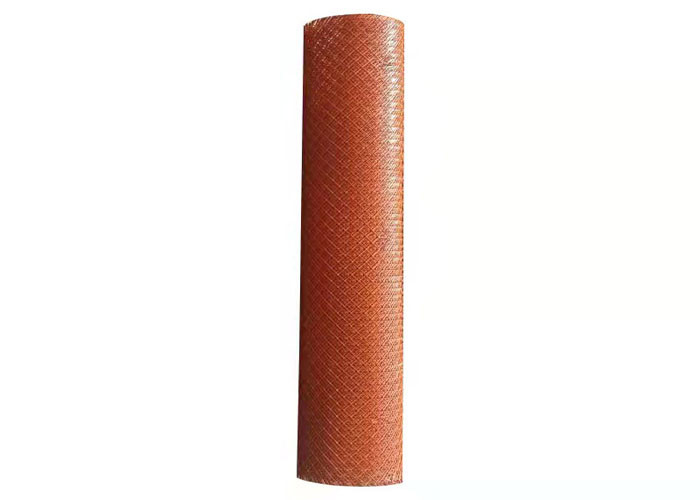

Aquaculture Diamond Ss304 Wire Metal Decorative Mesh Tensile Guardrail

Aquaculture Diamond Ss304 Wire Metal Decorative Mesh Tensile Guardrail

  • Aquaculture Diamond Ss304 Wire Metal Decorative Mesh Tensile Guardrail
  • Aquaculture Diamond Ss304 Wire Metal Decorative Mesh Tensile Guardrail
Aquaculture Diamond Ss304 Wire Metal Decorative Mesh Tensile Guardrail
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-04-05
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: >=10 Sets $72.00
Packaging Details: wooden box packing Customized by customer requires
Delivery Time: 10-15 work days 1 - 100 Set
Payment Terms: L/C, T/T
Supply Ability: 500 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: Metal Decorative Mesh Colour: Silver
MOQ: 10 Rolls Pass: Diamond
Packing: Binding Rope Workmanship: Plastic Spraying
Plate Thickness (mm): 0.4/ 0.5/ 0.6/0.8 Material: 304 Stainless Steel
Application: Decoration Construction Use: Protection And Decoration
High Light:

ss304 metal decorative mesh


tensile guardrail metal decorative mesh


ss304 decorative wire mesh

Aquaculture Diamond Wire Mesh Tensile Guardrail Metal Decorative Mesh


1. Product Introduction


  The mesh grille is also known as steel grating. The mesh grille is made of flat steel in a certain spacing and cross bars (twisted square steel, square steel, round steel, flat steel, etc.), and is welded into a square with a square in the middle. A steel product of lattice, steel grating is mainly used for gutter cover, steel structure platform board, and steel ladder step board. The crossbar is generally twisted square steel. Steel grating is generally made of carbon steel, and the surface is hot-dip galvanized to prevent oxidation. It can also be made of stainless steel. Steel grating has the properties of ventilation, lighting, heat dissipation, non-slip, explosion-proof, etc.


2. Parameter table


LWD(mm) SWD(mm) Strand Width Strand Gauge %Free Area Approx.Kg/m2
6.05 3.38 0.5 0.8 50 2.1
10.24 5.84 0.5 0.8 75 1.2
10.24 5.84 0.9 1.2 65 3.2
3.80 2.10 0.8 0.6 46 2.1
14.20 4.80 1.8 0.9 52 3.3
24.40 7.10 2.4 1.1 57 3.4
23.20 5.80 3.2 1.5 43 6.3
32.70 10.90 3.2 1.5 59 4
33.50 12.40 2.3 1.1 71 2.5
42.90 14.20 4.6 2.7 58 8.6
39.10 18.30 4.7 2.7 60 7.6
43.20 17.08 3.2 1.5 69 3.2
69.80 37.10 5.5 2.1 75 3.9


3. Product application


  It can be used for environmental protection noise control barriers in transportation and municipal facilities such as highways, railways, subways, etc. that pass through urban areas, and sound-absorbing panels for sound insulation and noise reduction of building walls, generator rooms, factory buildings, and other noise sources. It can be used in buildings. The sound absorption of the ceiling and wall panels of objects.


4. Product advantages


  Good corrosion resistance; PVDF fluorocarbon paint with kynar-500 and hylur 500 as base materials can not fade for 25 years.



5. Production process



At present, it is used to manufacture the more advanced WKC-2000 CNC punch press production equipment in China. The stepping servo motor product feeding and PLC logic control enable the product accuracy to reach /-0.15mm, and implement standardized management, which can punch plates within the range of 10mm-0.2mm.


6. Installation method


  Welding installation, use spot welding or two-step welding to connect the punching net, usually welding the back of the punching net, the advantage of this is that the front looks beautiful and generous, and there is no installation trace.


7. Matters Needing Attention


  Stainless steel punching mesh has low heat conduction and large heating expansion (Austenitic system), so cutting fluid with better cooling performance should be used for lubrication when punching. The metal punching mesh made of 304 material is hardened at room temperature. Its special properties are greatly affected by temperature, and the formability is greatly affected by temperature and speed. Generally, under the conditions of high temperature and high speed, the value of n decreases and the formed part deteriorates. Therefore, the use of temperature-influenced warm processing method to obtain extremely good stamping performance.


8. Packing method


 Stainless steel perforated mesh is usually available in bulk (i. e. without packing) , but we can pack it in woven bags, wooden cases, wooden pallets, etc. according to your requirements. The outlet stainless steel punching net packing generally uses the wooden pallet. Each pallet bears about 1 ton-2.5 tons. Then, they are wrapped with blister paper, and finally fixed with packing tape to prevent the punching net products from falling off and being damaged. General Stainless Steel Mesh are pallet packaging, because stainless steel mesh punching weight is very heavy, single piece may reach 200-300 kg. It is impossible to move by manpower, so it is necessary to load and unload the goods by forklift or crane. And the usual cardboard boxes and bags don’t do anything. Very thin stainless steel perforated Mesh, one or two if the shipment, whether express or logistics, will take a way: rolled up, and then wrapped in a bag.


Aquaculture Diamond Ss304 Wire Metal Decorative Mesh Tensile Guardrail 0

Aquaculture Diamond Ss304 Wire Metal Decorative Mesh Tensile Guardrail 1


Aquaculture Diamond Ss304 Wire Metal Decorative Mesh Tensile Guardrail 2
