Turnover Storage 4.0mm Foldable Wire Mesh Basket

Turnover Storage 4.0mm Foldable Wire Mesh Basket

  • Turnover Storage 4.0mm Foldable Wire Mesh Basket
  • Turnover Storage 4.0mm Foldable Wire Mesh Basket
Turnover Storage 4.0mm Foldable Wire Mesh Basket
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9011-34-22
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Foldable Wire Mesh Cage Place Of Production: Hengshui, China
Wire Diameter: 4.0-6.0mm Mesh Spacing: 50*50
Material: Steel Machinery Test Report: Provided
MOQ: 50 Pieces Packing: Plastic Film
Applicable Industries: Various Industries Surface Treatment: Electrostatic Spraying
Use: Used By Logistics Companies Application: Warehousing And Transportation
High Light:

4.0mm foldable wire mesh basket


turnover storage foldable wire mesh basket


4.0mm foldable wire mesh cage

Wire Turnover Basket Folding Storage Basket Foldable Wire Mesh Cage


1. Product introduction


  Storage cage is a special form of packaging; It has a similar function to pallet, but its steel material, mesh and three-dimensional structure determine that it can be used not only as a three-dimensional means of loading, unloading, storage and transportation, but also as a logistics turnover box and a sales tool; Its function has gone deep into the fields of production, circulation and consumption, and has gone through the links of temporary storage, packaging, loading and unloading, storage and transportation, which runs through the whole process of logistics. It can be used with attic shelves, medium shelves, supermarket shelves, heavy shelves, book shelves, automatic three-dimensional warehouses and other logistics equipment. At the same time, it also improves the effective utilization of storage space. The storage cage can be folded freely and can be folded and stored when not in use, saving warehouse space.


2. Parameter table


                                                        A Series





Wire diameter(mm) Grid (mm) Bearing(kg) Dead weight(kg)
A-1 800X600X640 5.8 50X50 800 27
A-2 800X600X640 5.6 50X50 600 25
A-3 800X600X640 4.8 50X50 500 21
A-4 800X600X640 4.8 50X100 400 19


                                                         B Series





Wire diameter(mm) Grid (mm) Bearing(kg) Dead weight(kg)
B-1 1000X800X840 6.0 50X50 1300 44
B-2 1000X800X840 5.8 50X50 1200 41
B-3 1000X800X840 5.6 50X50 1000 39
B-4 1000X800X840 5.3 50X50 800 36
B-5 1000X800X840 4.8 50X50 600 31


                                                        C Series





Wire diameter(mm Grid (mm) Bearing(kg) Dead weight(kg)
C-1 1200X100X890 6.0 50X50 1800 59
C-2 1200X100X890 5.8 50X50 1500 55
C-3 1200X100X890 5.6 50X50 1300 52
C-4 1200X100X890 5.3 50X50 1000 47
C-5 1200X100X890 4.8 50X50 800 41
C-6 1200X100X890 5.8 50X100 1000 47
C-7 1200X100X890 4.8 50X100 500


3. Product application


 It is used for storage, classification, transportation and storage of raw materials, semi-finished products and finished products. It can be used not only as a three-dimensional means of storage, transportation, loading and unloading, but also as a turnover box for logistics, but also as a sales tool. It is applicable to all links of logistics turnover and runs through the whole process of logistics. It is common in large warehouse supermarkets and manufacturing industries.The storage cage can be used not only in the factory production workshop, but also in the supermarket as display, promotion and storage, and can be used outdoors. It is widely used in die casting, forging parts, auto parts, motorcycle parts, metal stamping parts, engineering machinery parts, metal products, pipe fittings, gears, building bathroom parts, lighting, furniture, logistics, catering, food and other industries. The improved storage cage can be placed on shelves, assembly lines or stacked: the storage cage with wheels can be easily and quickly turned around in the workshop, and the storage cage with PVC plate or iron plate can prevent small parts from leaking.


4. Product advantages


1. It is made of high-quality steel by cold rolling, hardening and welding, with high strength and large loading capacity.

2. The specification is unified, the capacity is fixed, the stored goods are clear at a glance, and it is easy to inventory.

3. The goods stored in storage cages are burned. Each storage cage can be numbered to facilitate the inventory of the warehouse.

4. The storage cage can be stacked up to four floors high to realize the three-dimensional storage of the warehouse and save space.

5. With forklift, elevator, crane and other equipment, the storage cage can be used for transportation, handling, loading and unloading, storage and storage and storage of the storage cage, which is suitable for all links of logistics.

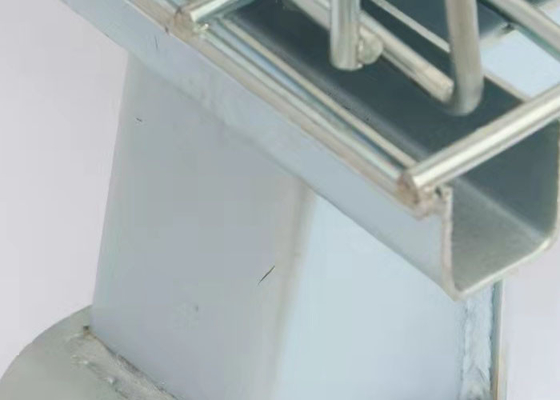

6. The storage cage is spot welded with strong steel bars, and the bottom of the storage cage is welded and reinforced with U-shaped channel steel to make the structure more solid. The storage cage has the advantages of simple operation, wide application and long service life. It can also be modified to use other appliances. (e.g. feet with wheels)

7.As a storage container, it can be used independently or with forklift and other handling tools; Consistent specifications and fixed capacity, which is conducive to warehouse inventory; It is welded from high-quality steel, with strong bearing strength and a wide range of storage types. It can be used in many ways, not only as an independent storage container, but also with a forklift for turnover or transfer, but also with wheels for mobile use. It can also be stably stacked to four or five floors to realize three-dimensional storage. Flexibility, half of the door net can be opened for inventory or picking up when stacking or not stacking.



5. Production process


  1. The chassis is processed by the bending machine with raw material plates, which are usually 18 and 2.5, then cut and manually welded into channel steel. Chassis manipulation is an important parameter of bearing. There are two kinds of welding between the bottom mesh and the bottom channel steel. One is manual welding, which can not ensure that each contact point is welded; The other is full welding technology. Each contact point of channel steel and mesh passes through machine welding machine, which has stronger bearing capacity. Finally, the mesh and chassis are assembled by spring and return buckle.

2. The mesh and chassis are assembled into a storage cage through springs and snap backs

3. The key raw material of the storage cage is the high-strength steel wire made of high-speed wire, and the general wire pitch is 4.8mm, 5mm, 6mm and 6.4mm. The grid interval is generally 50 × 100,100 × 100,50 × 50, 50x25 and 25x25. The bottom end of the storage cage is reinforced with W-shaped steel. The W-shaped steel reinforcement is cold rolled by the cold rolling strip mill, and the four legs of the bottom end are stamped with stamping parts. Generally, the forming sheet is 2 stamping parts, and then 2 stamping parts are welded by electric welding. The foot height of the storage cage is generally 100, which is also 120 mm high.


6. Installation method



1. For ease of use, storage cages are designed to be foldable. Therefore, it needs to be assembled before use

2. Goods storage cages are widely used in warehouses, supermarkets, exhibitions and so on. When the storage cage is placed horizontally on the ground, the goods can be accessed from the top of the storage cage; When the storage cage is stacked, the front of the storage cage can be opened to access goods from the front.

3. When the storage cage is empty, it is best to fold it for storage and make full use of the space. After assembly, it can be placed horizontally or stacked according to the situation.

4. Before installation and construction, be familiar with drawings, and prepare construction scheme for three-dimensional warehouse, special or complex installation.


5. Before installation, the transportation road and power supply on the installation site shall be known.

6. Before installation and construction, the on-site roof and internal painting works shall be basically completed, the relevant foundation floors and ditches shall have been completed, and the concrete strength shall not be less than 75% of the design strength; Sundries and garbage at and near the installation site shall be removed.

7. Unpack all the packages on the shelf and check whether all parts and accessories are complete according to the installation drawings.



7. matters needing attention



1. The loading and use instructions of the storage cage shall be clear, and shall be used within the bearing range, and shall not be collided by the forklift.

2. Protective measures shall be taken for the storage cage. It shall not be placed in a wet place, which is easy to rust the surface of the product. Store the specified items according to the specified requirements. Do not store strong acid and alkali items, and do not put items randomly. Add a layer of plastic film to carry the items with water.

3. The surface of the storage cage is usually sprayed with antirust paint or galvanized, and the metal material box is rusted. When the surface treatment of the box is worn, it is treated with self painting, which is economical. When the surface of the box is seriously worn, it can be sprayed again.

4. The conveying system is controlled by PLC and exchanges data and information with other equipment through the network. When the network host computer is shut down, the conveying control system and the stacker control system can directly realize point-to-point communication and data exchange to ensure the normal operation of incoming and outgoing conveying. When the upper computer resumes working, the control system The system automatically transmits the data to the upper computer.

5. Sorting system. It is connected with PLC, other equipment and communication lines through fieldbus. Tower sorters shall be selected for distribution centers that require a very large volume of distribution and sorting business.

6. Control system. The control system adopts fieldbus control and supports remote control, which makes the system maintenance more convenient and fast.

7. Moisture-proof. In the north, you can center the rust resistance of the storage cage. In foggy weather, wipe off the water drops on the surface with dry cotton cloth; On rainy days, wipe the water droplets in time after the rain stops. In the south, try to add rain cloth and accessories for outdoor use;

8. Avoid bumps. This is a point to be noted after purchasing the storage cage. The storage cage should be handled with care during handling; The ground on which the storage cage is placed shall be flat to maintain the stability of the storage cage. 3. Keep away from acid and alkali. Acid and alkali are known as the number one killer of storage cages. If acid (such as sulfuric acid and vinegar) and alkali (such as methylalkali, soapy water and soda water) are accidentally stained on the storage cage, clean the contaminated area with clean water immediately and wipe it dry with dry cotton cloth.


8. Packing method


  Place the folded storage cage one by one from low to high, pack it with packaging film, and trap both ends of the storage cage with packaging tape to prevent sliding. It can also be packaged according to customer requirements.


9. company introduction


  Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.

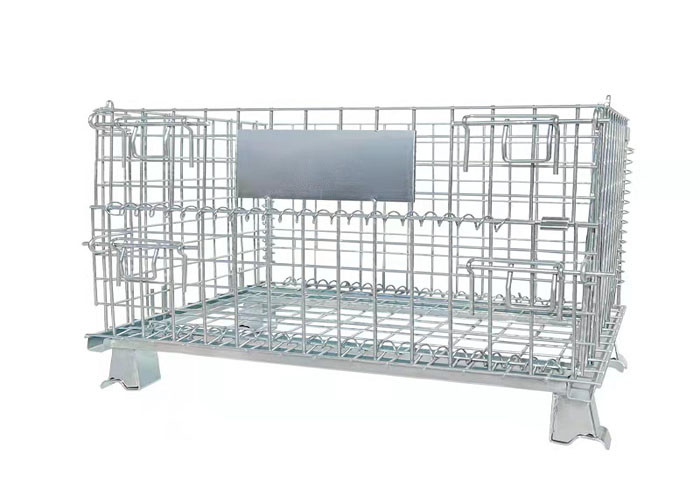

Turnover Storage 4.0mm Foldable Wire Mesh Basket 0Turnover Storage 4.0mm Foldable Wire Mesh Basket 1Turnover Storage 4.0mm Foldable Wire Mesh Basket 2
