Mobile Stacker 5mm Foldable Wire Mesh Cage With Roller Butterfly

Mobile Stacker 5mm Foldable Wire Mesh Cage With Roller Butterfly

  • Mobile Stacker 5mm Foldable Wire Mesh Cage With Roller Butterfly
  • Mobile Stacker 5mm Foldable Wire Mesh Cage With Roller Butterfly
Mobile Stacker 5mm Foldable Wire Mesh Cage With Roller Butterfly
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9011-34-20
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Foldable Wire Mesh Cage Mesh Spacing: 100*100
Wire Diameter: 5/6/6.4 Machinery Test Report: Provided
MOQ: 50 Pieces Packing: Woven Bag
Warranty Of Core Components: Not Available Surface Treatment: Hot Dip Galvanizing
Use: Each Workshop Of The Factory Material: Ordinary Carbon Structural Steel
Applicable Industries: Warehouse Storage Cage Application: Cageesh Manufacturing And Chassis Manufacturing
High Light:

mobile stacker foldable wire mesh cage


roller butterfly foldable wire mesh cage


5mm mesh butterfly cage

Mobile Stacker With Roller Butterfly Cage Foldable Wire Mesh Cage


1. Product introduction

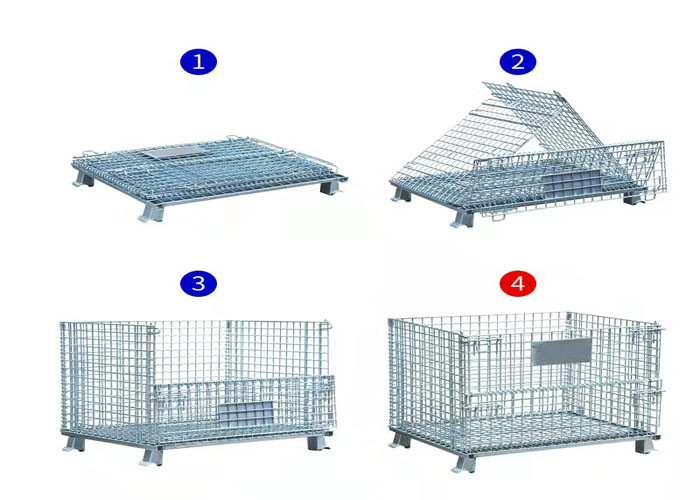

Storage cage, also known as warehouse cage and butterfly cage, is a very important type of logistics container in storage and transportation. It has the advantages of fixed storage capacity, neat stacking, clear storage, convenient inventory counting and so on. At the same time, it also improves the effective utilization of storage space. The storage cage can be folded freely and can be folded and stored when not in use, saving warehouse space.


2. Parameter table


                                                        A Series





Wire diameter(mm) Grid (mm) Bearing(kg) Dead weight(kg)
A-1 800X600X640 5.8 50X50 800 27
A-2 800X600X640 5.6 50X50 600 25
A-3 800X600X640 4.8 50X50 500 21
A-4 800X600X640 4.8 50X100 400 19


                                                         B Series





Wire diameter(mm) Grid (mm) Bearing(kg) Dead weight(kg)
B-1 1000X800X840 6.0 50X50 1300 44
B-2 1000X800X840 5.8 50X50 1200 41
B-3 1000X800X840 5.6 50X50 1000 39
B-4 1000X800X840 5.3 50X50 800 36
B-5 1000X800X840 4.8 50X50 600 31


                                                        C Series





Wire diameter(mm Grid (mm) Bearing(kg) Dead weight(kg)
C-1 1200X100X890 6.0 50X50 1800 59
C-2 1200X100X890 5.8 50X50 1500 55
C-3 1200X100X890 5.6 50X50 1300 52
C-4 1200X100X890 5.3 50X50 1000 47
C-5 1200X100X890 4.8 50X50 800 41
C-6 1200X100X890 5.8 50X100 1000 47
C-7 1200X100X890 4.8 50X100 500



3. Product application


  Used for storage, classification, transportation and storage of raw materials, semi-finished products and finished products. It can be used not only as a three-dimensional means of storage, transportation, loading and unloading, but also as a turnover box for logistics, but also as a sales tool. It is applicable to all links of logistics turnover and runs through the whole process of logistics. It is common in large warehouse supermarkets and manufacturing industries.


4. Product advantages


1. It is made of high-quality steel by cold rolling, hardening and welding, with high strength and large loading capacity.

2. The specification is unified, the capacity is fixed, the stored goods are clear at a glance, and it is easy to inventory.

3. The surface is galvanized, beautiful, anti-oxidation and long service life.

4. International standards are adopted, which can be used together with containers to effectively improve space utilization.


5. Production process


  The main raw material of the storage cage is high-strength steel wire drawn by high-speed wire, and the general wire diameter is 5mm, 6mm and 6.4mm. The mesh spacing of mesh welding is generally 50 × 100,100 × 100,50 × 50. The bottom of the storage cage is welded by U-shaped steel, which is rolled by cold-rolled strip mill, and the four corners of the bottom are punched by stamping parts at one time. ​​​​


6. Installation method


1. Before installation and construction, be familiar with drawings, and prepare construction scheme for three-dimensional warehouse, special or complex installation.

2. Unpack all the packages on the shelf and check whether all parts and accessories are complete according to the installation drawings.

3. Install the main shelf. Place the main shelf in a reasonable position as shown in the drawing. One end of the beam is aligned with the bayonet of the main frame column and the other end is aligned with the bayonet of the sub frame. Install the screws, adjust them to an appropriate distance, and tighten the screws with an adjustable wrench.



7. matters needing attention



1. The loading and use instructions of the storage cage shall be clear, and shall be used within the bearing range, and shall not be collided by the forklift.

2. Protective measures shall be taken for the storage cage. It shall not be placed in a wet place, which is easy to rust the surface of the product. Store the specified items according to the specified requirements. Do not store strong acid and alkali items, and do not put items randomly. Add a layer of plastic film to carry the items with water.

3. The surface of the storage cage is usually sprayed with antirust paint or galvanized, and the metal material box is rusted. When the surface treatment of the box is worn, it is treated with self painting, which is economical. When the surface of the box is seriously worn, it can be sprayed again.

4. The conveying system is controlled by PLC and exchanges data and information with other equipment through the network. When the network host computer is shut down, the conveying control system and the stacker control system can directly realize point-to-point communication and data exchange to ensure the normal operation of incoming and outgoing conveying. When the upper computer resumes working, the control systemThe system automatically transmits the data to the upper computer.

5. Sorting system. It is connected with PLC, other equipment and communication lines through fieldbus. Tower sorters shall be selected for distribution centers that require a very large volume of distribution and sorting business.

6.Moisture-proof. In the north, you can center the rust resistance of the storage cage. In foggy weather, wipe off the water drops on the surface with dry cotton cloth; On rainy days, wipe the water droplets in time after the rain stops. In the south, try to add rain cloth and accessories for outdoor use.



8. Packing method


  Place the folded storage cage one by one from low to high, pack it with packaging film, and trap both ends of the storage cage with packaging tape to prevent sliding. It can also be packaged according to customer requirements.


9. company introduction


Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.

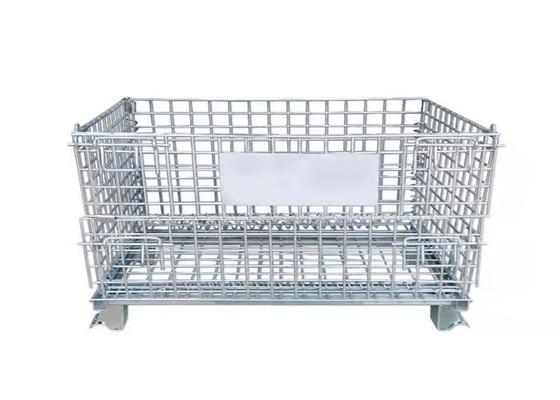

Mobile Stacker 5mm Foldable Wire Mesh Cage With Roller Butterfly 0Mobile Stacker 5mm Foldable Wire Mesh Cage With Roller Butterfly 1Mobile Stacker 5mm Foldable Wire Mesh Cage With Roller Butterfly 2
Mobile Stacker 5mm Foldable Wire Mesh Cage With Roller Butterfly 3
