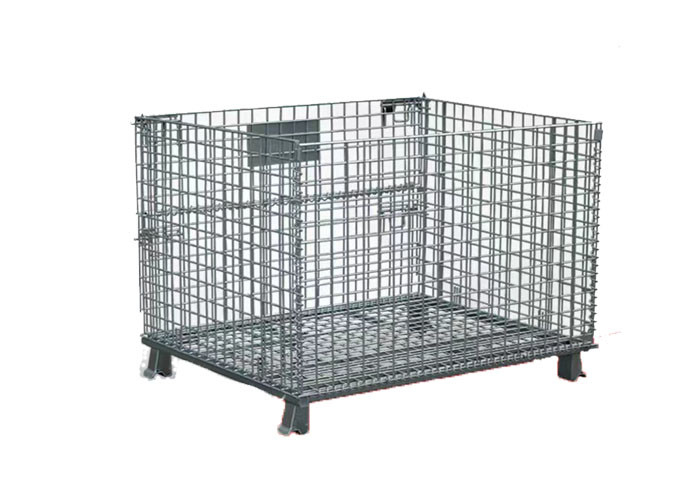

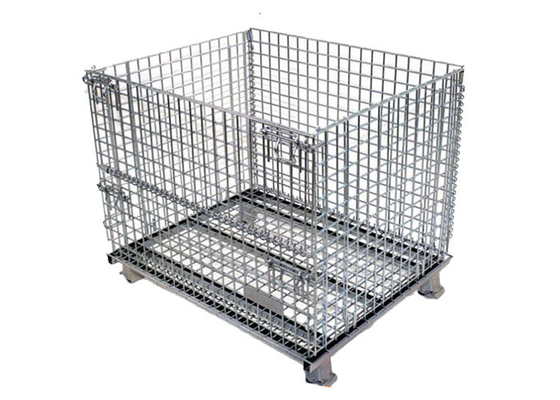

Express Sorting Warehouse 6.4mm Foldable Wire Mesh Cage Turnover Iron Frame

Express Sorting Warehouse 6.4mm Foldable Wire Mesh Cage Turnover Iron Frame

  • Express Sorting Warehouse 6.4mm Foldable Wire Mesh Cage Turnover Iron Frame
  • Express Sorting Warehouse 6.4mm Foldable Wire Mesh Cage Turnover Iron Frame
Express Sorting Warehouse 6.4mm Foldable Wire Mesh Cage Turnover Iron Frame
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9011-34-13
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Foldable Wire Mesh Cage Mesh Spacing: 50*100
Wire Diameter: 6.4mm Machinery Test Report: Provided
MOQ: 50 Pieces Packing: Customizable
Warranty Of Core Components: Not Available Material: 235 Iron
Surface Treatment: Electrostatic Spraying Use: Each Workshop Of The Factory
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory Application: Pull Goods
High Light:

foldable wire mesh cage 6.4mm

,

express sorting foldable wire mesh container

,

turnover warehouse foldable wire mesh cage

Express Sorting Frame Warehouse Cage Turnover Iron Frame Foldable Wire Mesh Cage



1. Product introduction



  There are three kinds of storage cages commonly used: one is the storage cage with wheels for turnover, the other is the storage cage with feet that can be stacked and put on the shelf, and the third is the storage cage with wheels and feet that can be used for both purposes.



2. Parameter table



                                                        A Series



Model

Specifications

(mm)

Wire diameter(mm) Grid (mm) Bearing(kg) Dead weight(kg)
A-1 800X600X640 5.8 50X50 800 27
A-2 800X600X640 5.6 50X50 600 25
A-3 800X600X640 4.8 50X50 500 21
A-4 800X600X640 4.8 50X100 400 19



                                                         B Series



Model

Specifications

(mm)

Wire diameter(mm) Grid (mm) Bearing(kg) Dead weight(kg)
B-1 1000X800X840 6.0 50X50 1300 44
B-2 1000X800X840 5.8 50X50 1200 41
B-3 1000X800X840 5.6 50X50 1000 39
B-4 1000X800X840 5.3 50X50 800 36
B-5 1000X800X840 4.8 50X50 600 31



                                                        C Series



Model

Specifications

(mm)

Wire diameter(mm Grid (mm) Bearing(kg) Dead weight(kg)
C-1 1200X100X890 6.0 50X50 1800 59
C-2 1200X100X890 5.8 50X50 1500 55
C-3 1200X100X890 5.6 50X50 1300 52
C-4 1200X100X890 5.3 50X50 1000 47
C-5 1200X100X890 4.8 50X50 800 41
C-6 1200X100X890 5.8 50X100 1000 47
C-7 1200X100X890 4.8 50X100 500

36



3. Product application



  The storage cage can be used not only in the factory production workshop, but also in the supermarket as display, promotion and storage, and can be used outdoors.The storage cage is equipped with Wantong board or paperboard to effectively protect articles that are easy to scratch the surface. As the cost of logistics is gradually valued by enterprises, storage cage will also be widely used in more manufacturing enterprises. He has gradually replaced the traditional wooden packaging.



4. Product advantages



With forklift, elevator, crane and other equipment, the storage cage can be used for transportation, handling, loading and unloading, storage and storage and storage of the storage cage, which is suitable for all links of logistics.

The storage cage is spot welded with strong steel bars, and the bottom of the storage cage is welded and reinforced with U-shaped channel steel to make the structure more solid. The storage cage has the advantages of simple operation, wide application and long service life. It can also be modified to use other appliances. (e.g. feet with wheels)

As a storage container, it can be used independently or with forklift and other handling tools; Consistent specifications and fixed capacity, which is conducive to warehouse inventory; It is welded from high-quality steel, with strong bearing strength and a wide range of storage types. It can be used in many ways, not only as an independent storage container, but also with a forklift for turnover or transfer, but also with wheels for mobile use. It can also be stably stacked to four or five floors to realize three-dimensional storage. Flexibility, half of the door net can be opened for inventory or picking up when stacking or not stacking.

The most prominent feature of the storage cage is its folding structure, which can help enterprises improve storage space and save turnover and transportation costs. The material used determines that the storage cage will not be corroded, aged, deformed, durable, and the service life can reach 10 years.

5. Production process



 The mesh is made of raw material Q235 high-speed wire, which is processed into thin wire with a wire diameter of more than 58 or 60, and then cut into various lengths. It is made into mesh by touching the mesh with a welder. After being made into mesh, it is assembled, and then galvanized or plastic sprayed for surface treatment to form semi-finished mesh. Nanjing shuoling mesh is treated with zinc plating and plastic spraying. The antirust zinc plating is better than plastic spraying. Wire diameter is an important parameter of bearing capacity.





6. Installation method



1.Before installation, the transportation road and power supply on the installation site shall be known.

2. The rack installation shall be carried out according to the drawing. In case of any discrepancy in the site or design during construction, it shall be proposed in time, and the construction can be carried out only after the change is approved.

3. Various measuring and testing instruments, instruments, meters and equipment used in installation shall comply with the provisions of current national measurement regulations, and their accuracy grade shall not be lower than the accuracy grade required for installation.

4. The concealed works before shelf installation shall be inspected before concealment, and the construction can be continued only after they are qualified.

5. Self inspection shall be carried out during installation.



7. matters needing attention







  1. The storage cage shall not be placed at the inclined position of the ground or concave convex use of stacking height on flat ground

2. When loading the storage cage, try to use it within the original design bearing range. If it is overloaded, it will cause damage the damage of the storage cage will accelerate the impact on the service life. If a stronger bearing is required, friends can tell us the bearing requirements at the beginning of the design, and we can design it for you the storage cage conforming to the load can let you purchase at one time and use it for a long time



8. Packing method



  Place the folded storage cage one by one from low to high, pack it with packaging film, and trap both ends of the storage cage with packaging tape to prevent sliding. It can also be packaged according to customer requirements.



9. company introduction



  Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.
