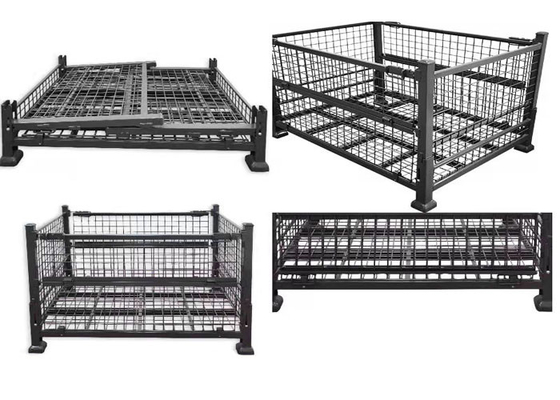

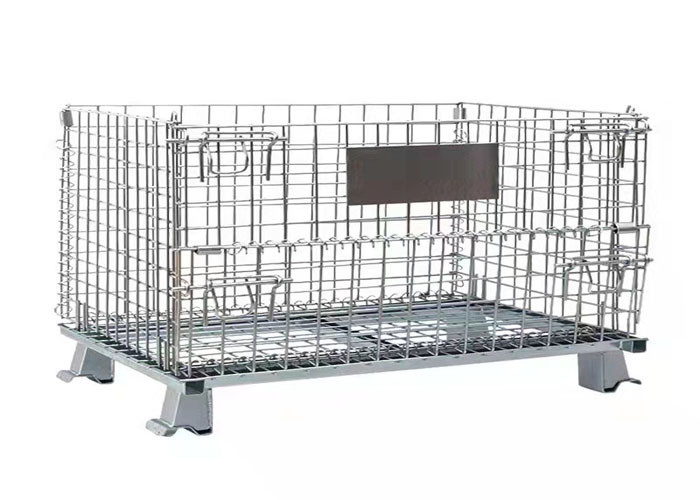

50*100 Sorting 6.4mm Collapsible Wire Basket Metal Cage

50*100 Sorting 6.4mm Collapsible Wire Basket Metal Cage

  • 50*100 Sorting 6.4mm Collapsible Wire Basket Metal Cage
  • 50*100 Sorting 6.4mm Collapsible Wire Basket Metal Cage
50*100 Sorting 6.4mm Collapsible Wire Basket Metal Cage
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9011-34-20
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Foldable Wire Mesh Cage Place Of Production: Hengshui, China
Material: Stainless Steel Wire Diameter: 6.4mm
Mesh Spacing: 50*100 Load Bearing: 300-1000
Machinery Test Report: Provided MOQ: 50 Pieces
Packing: Plastic Film Applicable Industries: Various Industries
Surface Treatment: High Quality Hot Dip Galvanizing Application: Building Bathroom Parts, Lighting, Furniture
High Light:

6.4mm collapsible wire basket

,

50*100 collapsible wire basket

,

sorting foldable wire mesh cage

50 * 50 High Quality Hot-Dip Galvanized Multifunctional Storage Frame Metal Pallet Cage



1. Product introduction



  Storage cage is also called warehouse cage and butterfly cage,is a very important type of logistics container in storage and transportation.Storage cages can be divided into metal mesh folding storage cages and frame metal mesh folding storage cages according to whether there is a frame or not. The metal mesh folding storage cage adopts the metal mesh structure, which has the advantages of light self weight and semi open. It is convenient to pick up goods and can observe the internal goods. The frame metal mesh folding storage cage is more rigid than the full mesh type, easy to fold and widely used.

  The storage cage has the advantages of fixed storage capacity, tidy storage, clear storage, easy inventory count, and also improves the effective utilization of storage space. In addition, the product is strong and durable, convenient transportation, can be reused, can effectively reduce the storage enterprise’s labor consumption and packaging costs



2. Parameter table



                                                        A Series



Model

Specifications

(mm)

Wire diameter(mm) Grid (mm) Bearing(kg) Dead weight(kg)
A-1 800X600X640 5.8 50X50 800 27
A-2 800X600X640 5.6 50X50 600 25
A-3 800X600X640 4.8 50X50 500 21
A-4 800X600X640 4.8 50X100 400 19



                                                         B Series



Model

Specifications

(mm)

Wire diameter(mm) Grid (mm) Bearing(kg) Dead weight(kg)
B-1 1000X800X840 6.0 50X50 1300 44
B-2 1000X800X840 5.8 50X50 1200 41
B-3 1000X800X840 5.6 50X50 1000 39
B-4 1000X800X840 5.3 50X50 800 36
B-5 1000X800X840 4.8 50X50 600 31



                                                        C Series



Model

Specifications

(mm)

Wire diameter(mm Grid (mm) Bearing(kg) Dead weight(kg)
C-1 1200X100X890 6.0 50X50 1800 59
C-2 1200X100X890 5.8 50X50 1500 55
C-3 1200X100X890 5.6 50X50 1300 52
C-4 1200X100X890 5.3 50X50 1000 47
C-5 1200X100X890 4.8 50X50 800 41
C-6 1200X100X890 5.8 50X100 1000 47
C-7 1200X100X890 4.8 50X100 500

36



3. Product advantages



1. Wheels can be installed at the bottom, which is extremely convenient for internal turnover in the factory.

2. The storage cage has uniform specifications and fixed capacity. The appearance of the storage cage is galvanized or sprayed (the color of the storage cage can be produced according to the customer's requirements).

3. The goods stored in storage cages are burned. Each storage cage can be numbered to facilitate the inventory of the warehouse.

4. The storage cage can be stacked up to four floors high to realize the three-dimensional storage of the warehouse and save space.

5. With forklift, elevator, crane and other equipment, the storage cage can be used for transportation, handling, loading and unloading, storage and storage and storage of the storage cage, which is suitable for all links of logistics.

6As a storage container, it can be used independently or with forklift and other handling tools; Consistent specifications and fixed capacity, which is conducive to warehouse inventory; It is welded from high-quality steel, with strong bearing strength and a wide range of storage types. It can be used in many ways, not only as an independent storage container, but also with a forklift for turnover or transfer, but also with wheels for mobile use. It can also be stably stacked to four or five floors to realize three-dimensional storage. Flexibility, half of the door net can be opened for inventory or picking up when stacking or not stacking.

7. The most prominent feature of the storage cage is its folding structure, which can help enterprises improve storage space and save turnover and transportation costs. The material used determines that the storage cage will not be corroded, aged, deformed, durable, and the service life can reach 10 years. Processing with net cover, caster, hollow plate, bottom plate, traction tools, interlayer mesh, etc.





4. Installation method





1. For ease of use, storage cages are designed to be foldable. Therefore, it needs to be assembled before use

2. Goods storage cages are widely used in warehouses, supermarkets, exhibitions and so on. When the storage cage is placed horizontally on the ground, the goods can be accessed from the top of the storage cage; When the storage cage is stacked, the front of the storage cage can be opened to access goods from the front.

3. When the storage cage is empty, it is best to fold it for storage and make full use of the space. After assembly, it can be placed horizontally or stacked according to the situation.

4. Before installation and construction, be familiar with drawings, and prepare construction scheme for three-dimensional warehouse, special or complex installation.

5. Before installation, the transportation road and power supply on the installation site shall be known.

6. Before installation and construction, the on-site roof and internal painting works shall be basically completed, the relevant foundation floors and ditches shall have been completed, and the concrete strength shall not be less than 75% of the design strength; Sundries and garbage at and near the installation site shall be removed.

7. Unpack all the packages on the shelf and check whether all parts and accessories are complete according to the installation drawings.

8. Install the main shelf. Place the main shelf in a reasonable position as shown in the drawing. One end of the beam is aligned with the bayonet of the main frame column and the other end is aligned with the bayonet of the sub frame. Install the screws, adjust them to an appropriate distance, and tighten the screws with an adjustable wrench.

9. Install the auxiliary shelf. Arrange the beam and column of the auxiliary shelf, then butt it with the column of the main shelf, adjust the distance, install the screws, and tighten the screws with an adjustable wrench.

10. After the shelf is installed, according to the acceptance standard of storage shelf, knock the corresponding parts of column and beam with rubber hammer to adjust them to the most appropriate position.

11. Finally, place the laminate on the beam and fix it with supporting inserts.

12. The rack installation shall be carried out according to the drawing. In case of any discrepancy in the site or design during construction, it shall be proposed in time, and the construction can be carried out only after the change is approved.

13. Various measuring and testing instruments, instruments, meters and equipment used in installation shall comply with the provisions of current national measurement regulations, and their accuracy grade shall not be lower than the accuracy grade required for installation.

14. The concealed works before shelf installation shall be inspected before concealment, and the construction can be continued only after they are qualified.

15. Self inspection shall be carried out during installation



5. Packing method





1. Before installation and construction, the on-site roof and internal painting works shall be basically completed, the relevant foundation floors and ditches shall have been completed, and the concrete strength shall not be less than 75% of the design strength; Sundries and garbage at and near the installation site shall be removed.

2. Unpack all the packages on the shelf and check whether all parts and accessories are complete according to the installation drawings.

3. Install the main shelf. Place the main shelf in a reasonable position as shown in the drawing. One end of the beam is aligned with the bayonet of the main frame column and the other end is aligned with the bayonet of the sub frame. Install the screws, adjust them to an appropriate distance, and tighten the screws with an adjustable wrench.
