Carbon Structural Steel Mesh Butterfly Cage Acid Resistant Foldable

Carbon Structural Steel Mesh Butterfly Cage Acid Resistant Foldable

  • Carbon Structural Steel Mesh Butterfly Cage Acid Resistant Foldable
  • Carbon Structural Steel Mesh Butterfly Cage Acid Resistant Foldable
Carbon Structural Steel Mesh Butterfly Cage Acid Resistant Foldable
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9011-34-18
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: Woven bag
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilogram/Kilograms per Week
Contact Now
Detailed Product Description
Product Name: Foldable Wire Mesh Cage Mesh Spacing: 50*50
Wire Diameter: 4.8-5.8mm Machinery Test Report: Provided
Application: Warehousing MOQ: 50 Pieces
Warranty Of Core Components: Not Available Dimensions: 1200*1000*890
Surface Treatment: Plastic Spraying Use: Each Workshop Of The Factory
Material: Ordinary Carbon Structural Steel Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory
High Light:

acid resistant foldable wire mesh cage


carbon structural steel mesh butterfly cage


acid resistant foldable mesh butterfly cage

Carbon Structural Steel Acid Resistant Foldable Butterfly Cage Foldable Wire Mesh Cage


1. Product introduction


Storage cage is also called warehouse cage butterfly cage, is a very important type of logistics container in storage and transportation. It has the advantages of fixed storage capacity, neat stacking, clear storage, convenient inventory counting and so on. At the same time, it also improves the effective utilization of storage space. The storage cage can be folded freely and can be folded and stored when not in use, saving warehouse space.


2. Parameter table


                                                        A Series





Wire diameter(mm) Grid (mm) Bearing(kg) Dead weight(kg)
A-1 800X600X640 5.8 50X50 800 27
A-2 800X600X640 5.6 50X50 600 25
A-3 800X600X640 4.8 50X50 500 21
A-4 800X600X640 4.8 50X100 400 19


                                                         B Series





Wire diameter(mm) Grid (mm) Bearing(kg) Dead weight(kg)
B-1 1000X800X840 6.0 50X50 1300 44
B-2 1000X800X840 5.8 50X50 1200 41
B-3 1000X800X840 5.6 50X50 1000 39
B-4 1000X800X840 5.3 50X50 800 36
B-5 1000X800X840 4.8 50X50 600 31


                                                        C Series





Wire diameter(mm Grid (mm) Bearing(kg) Dead weight(kg)
C-1 1200X100X890 6.0 50X50 1800 59
C-2 1200X100X890 5.8 50X50 1500 55
C-3 1200X100X890 5.6 50X50 1300 52
C-4 1200X100X890 5.3 50X50 1000 47
C-5 1200X100X890 4.8 50X50 800 41
C-6 1200X100X890 5.8 50X100 1000 47
C-7 1200X100X890 4.8 50X100 500



3. Product application


  Used for storage, classification, transportation and storage of raw materials, semi-finished products and finished products. It can be used not only as a three-dimensional means of storage, transportation, loading and unloading, but also as a turnover box for logistics, but also as a sales tool. It is applicable to all links of logistics turnover and runs through the whole process of logistics. It is common in large warehouse supermarkets and manufacturing industries.


4. Product advantages


 1. Wheels can be installed at the bottom, which is extremely convenient for internal turnover in the factory.

2. It is made of high-quality steel by cold rolling, hardening and welding, with high strength and large loading capacity.

3. The goods stored in storage cages are burned. Each storage cage can be numbered to facilitate the inventory of the warehouse.

4. The storage cage can be stacked up to four floors high to realize the three-dimensional storage of the warehouse and save space.

5.With folding structure and low recycling cost, it is an alternative product to wooden packing boxes.



5. Production process



The storage cage uses Q195 high carbon iron wire as raw material and is cold drawn into finished wire. Then the semi-finished mesh is formed by welding. After the mesh is made, it can be galvanized or sprayed with plastic for surface treatment (the storage cage is generally Galvanized). After the surface treatment, it can be assembled and finally made into finished products. The size of the storage cage can be customized according to the customer's requirements. When purchasing the storage cage, you should consider the external size of your product, the maximum load-bearing requirements you design, whether your storage cage is used for storage or turnover, whether it needs stacking, etc.



6. Installation method



1. Finally, place the laminate on the beam and fix it with supporting inserts.

2. The rack installation shall be carried out according to the drawing. In case of any discrepancy in the site or design during construction, it shall be proposed in time, and the construction can be carried out only after the change is approved.

3. Various measuring and testing instruments, instruments, meters and equipment used in installation shall comply with the provisions of current national measurement regulations, and their accuracy grade shall not be lower than the accuracy grade required for installation.

4. The concealed works before shelf installation shall be inspected before concealment, and the construction can be continued only after they are qualified.

5. Self inspection shall be carried out during installation.



7. matters needing attention



1. Storage cages should be kept away from acidic and alkaline substances, such as some vinegar, hydrochloric acid and soapy water, otherwise chemical effects will occur. During daily use, the storage cage shall not be exposed to acidic or alkaline substances, which will have some negative effects on the storage cage. In case of contact, chemical action may occur and then corrosive to it.

2. When stacking storage cages, be careful not to use too much force, because if the external force collision is very fierce, it will directly cause its deformation.

3. The storage cage is very convenient when transporting or stacking goods, but it should be noted that it cannot exceed its bearing capacity, otherwise it will cause deformation and other problems.

4. During the movement of the storage cage, the hydraulic truck and forklift shall keep moving forward, backward and up and down at a constant speed to avoid sudden braking and sudden rotation, pallet damage and cargo collapse; When the storage cage is put on the shelf, the storage cage shall be placed stably on the shelf beam, and the tray length shall be more than 50mm larger than the outer diameter of the shelf beam.

5.Moisture-proof. In the north, you can center the rust resistance of the storage cage. In foggy weather, wipe off the water drops on the surface with dry cotton cloth; On rainy days, wipe the water droplets in time after the rain stops. In the south, try to add rain cloth and accessories for outdoor use;


8. Packing method


  Place the folded storage cage one by one from low to high, pack it with packaging film, and trap both ends of the storage cage with packaging tape to prevent sliding. It can also be packaged according to customer requirements.


9. company introduction


  Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.

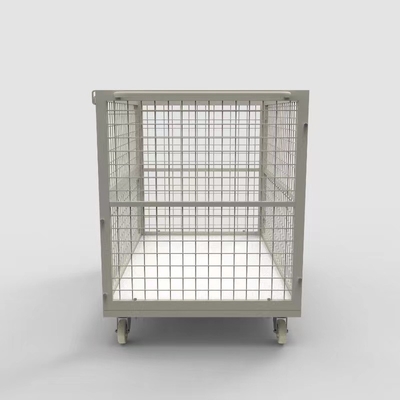

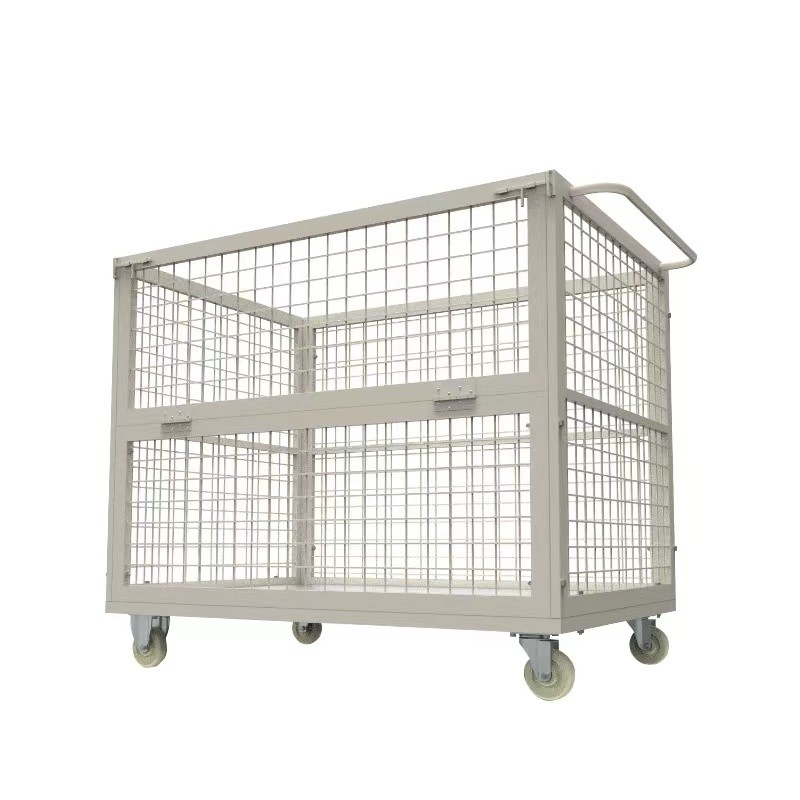

Carbon Structural Steel Mesh Butterfly Cage Acid Resistant Foldable 0Carbon Structural Steel Mesh Butterfly Cage Acid Resistant Foldable 1

Carbon Structural Steel Mesh Butterfly Cage Acid Resistant Foldable 2
