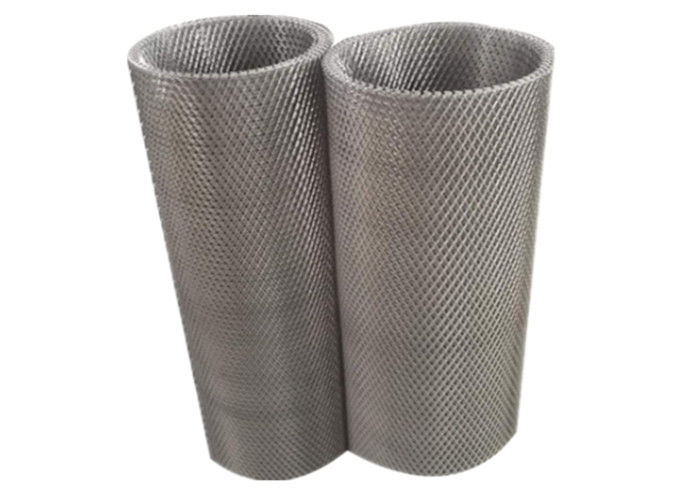

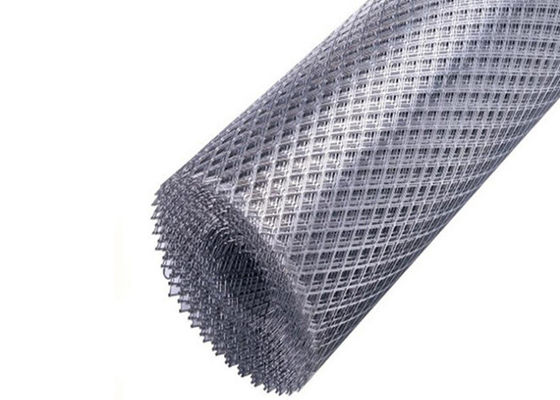

Steel Plate Thickened Diamond Tensile Expansion Galvanized Metal Decorative Mesh
1. Product Introduction
Rhombic net is made by crochet, and its processing technology is relatively simple. And Rhombic Mesh is a more uniform Mesh, Mesh surface is quite flat mesh, and Rhombic Mesh gives the first impression is beautiful and generous.
2. Parameter table
| EXPENDED FLATTENED MESH |
| LWD(mm) |
SWD(mm) |
Strand Width |
Strand Gauge |
%Free Area |
Approx.Kg/m2 |
| 6.05 |
3.38 |
0.5 |
0.8 |
50 |
2.1 |
| 10.24 |
5.84 |
0.5 |
0.8 |
75 |
1.2 |
| 10.24 |
5.84 |
0.9 |
1.2 |
65 |
3.2 |
| 3.80 |
2.10 |
0.8 |
0.6 |
46 |
2.1 |
| 14.20 |
4.80 |
1.8 |
0.9 |
52 |
3.3 |
| 24.40 |
7.10 |
2.4 |
1.1 |
57 |
3.4 |
| 23.20 |
5.80 |
3.2 |
1.5 |
43 |
6.3 |
| 32.70 |
10.90 |
3.2 |
1.5 |
59 |
4 |
| 33.50 |
12.40 |
2.3 |
1.1 |
71 |
2.5 |
| 42.90 |
14.20 |
4.6 |
2.7 |
58 |
8.6 |
| 39.10 |
18.30 |
4.7 |
2.7 |
60 |
7.6 |
| 43.20 |
17.08 |
3.2 |
1.5 |
69 |
3.2 |
| 69.80 |
37.10 |
5.5 |
2.1 |
75 |
3.9 |
3. Product application
Meet the British standards for fixed platforms, walkways and staircases, in the case of small span, this is the most ideal product, even in the transport equipment aisle such as the load is no exception, can also be used to do warehouse shelves, pavilions panels, trestles, Protective Fence, Sun curtains, and so on.
4. Product advantages
It is not easy to be stained and is easy to clean and maintain; the aluminum plate punching net has a greater advantage, and the non-adhesiveness of the fluorine coating film makes it difficult for contaminants to adhere to the surface of the aluminum plate, and it has good cleanliness.
5. Production process
We can use the leveler to restore the punched and deformed punching plate to its original flat state. Plate thickness of 0.8 mm-12 mm steel plate can be levelled. And cleaning the punch requires the use of lubricant, but we also have a deoiling process to remove the traces on its surface, so that the hole plate appears clean. In addition to customer reservation, we can also provide a series of follow-up processing for stainless steel piercing Mesh, iNCLUDING: leveling, cutting, labeling, packaging, deoiling, deburring, molding, annealing, painting, electroplating, welding, polishing, bending, winding, etc.
6. Installation method
Through the installation hole directly installed with screws, in the Piercing Mesh, stainless steel piercing plate around the installation hole, directly fixed in the late. By bending and sticking to the equipment that needs to be installed, bending not only increases the strength of the plate, but also makes it easier to install. through the welding process, directly to the piercing plate welding bracket, spray plastic eyes, so that the front looks very beautiful.
7. Matters Needing Attention
After cleaning, care should be taken to avoid secondary pollution of the punching net and keep the punching net clean and tidy. First of all, the net in the washing must not use acidic or alkaline cleaning agent to clean, to clean metal cleaning agent.
8. Packing method
Baling with packing belt is generally applicable to relatively neat steel grating; The screw rod is fixed. Four screw rods are transmitted through the aperture of the steel grating and locked with screws; Pallet guarantee, generally for export packing. It is mainly determined according to the customer's situation. If there are not many goods and there is no need to load and unload with forklift, it is generally convenient to bulk. On the contrary, there are more goods, and it will be more convenient to use forklift for loading and unloading. In short, for the convenience of customers, it is better to protect the products from damage during transportation.
