Galvanized Wire Mesh Mechanical Protection Diamond Tensile Building Metal Decorative Mesh
1. Product Introduction

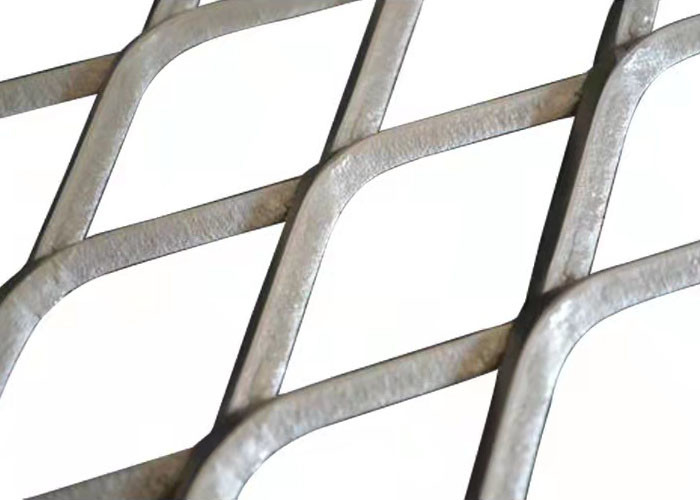

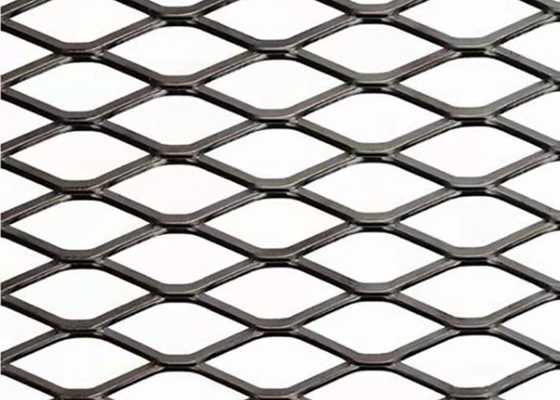

Diamond mesh is made by crocheting, and its processing technology is relatively simple. And diamond mesh is a kind of mesh with relatively uniform mesh and fairly flat mesh surface, and the first feeling of diamond mesh is beautiful and generous.
2. Parameter table
| EXPENDED FLATTENED MESH |
| LWD(mm) |
SWD(mm) |
Strand Width |
Strand Gauge |
%Free Area |
Approx.Kg/m2 |
| 6.05 |
3.38 |
0.5 |
0.8 |
50 |
2.1 |
| 10.24 |
5.84 |
0.5 |
0.8 |
75 |
1.2 |
| 10.24 |
5.84 |
0.9 |
1.2 |
65 |
3.2 |
| 3.80 |
2.10 |
0.8 |
0.6 |
46 |
2.1 |
| 14.20 |
4.80 |
1.8 |
0.9 |
52 |
3.3 |
| 24.40 |
7.10 |
2.4 |
1.1 |
57 |
3.4 |
| 23.20 |
5.80 |
3.2 |
1.5 |
43 |
6.3 |
| 32.70 |
10.90 |
3.2 |
1.5 |
59 |
4 |
| 33.50 |
12.40 |
2.3 |
1.1 |
71 |
2.5 |
| 42.90 |
14.20 |
4.6 |
2.7 |
58 |
8.6 |
| 39.10 |
18.30 |
4.7 |
2.7 |
60 |
7.6 |
| 43.20 |
17.08 |
3.2 |
1.5 |
69 |
3.2 |
| 69.80 |
37.10 |
5.5 |
2.1 |
75 |
3.9 |
3. Product application
It meets the specifications of fixed platforms, walkways and stairs specified in British standards. In the case of small span, it is the most ideal product. It is no exception even under the load of transportation equipment walkways. It can also be used as shelves of warehouses, panels of pavilions, trestles, protective fences, sun curtains, etc.
4. Product advantages
Good corrosion resistance; pvdf fluorocarbon paint using kynar-500 and hylur500 as base materials can last up to 25 years without fading.
5. Production process
We can restore the deformed punched plate to its original flat state by using the leveling machine. Steel plates with a thickness of 0.8mm-12mm can be leveled. And cleaning and punching requires the use of lubricant, but we also have a degreasing process, which can remove the traces on its surface and make the orifice plate clean. In addition to customer reservation, we can also provide a series of subsequent processing for stainless steel punching net, including leveling, cutting, labeling, packaging, degreasing, pricking, forming, annealing, painting, electroplating, welding, polishing, bending, coiling, etc.
6. Installation method
Install directly with screws through the installation hole, punch installation holes around the punching net and stainless steel punching plate, and fix directly in the later stage. Through bending, it is stuck on the equipment to be installed. Bending can not only enhance the strength of the plate, but also facilitate installation. Through the welding process, the punching plate is directly welded on the support and sprayed with plastic. In this way, the front looks very beautiful.
7. Matters Needing Attention
First of all, when cleaning the perforated mesh, do not use acidic or alkaline cleaning agents for cleaning, but use special cleaning agents for cleaning metals.
8. Packing method
To prevent falling, friction, scratches and other problems on the way due to unstable placement, pay attention to the following points during the transportation and packaging of stainless steel perforated plates: Wooden squares are padded at the lower part of the packaging of stainless steel perforated plates (also known as steel grating plates), which are fastened with twisted square steel and fasteners to facilitate forklift loading and unloading. The stainless steel perforated plates at the export have the risk of transmission of insect diseases due to square wood, The laws and regulations of the destination country must be observed. Channel steel or plywood can be used to replace square wood. The specific packaging requirements can be agreed between the supplier and the buyer. During hoisting, do not use the twisted square steel or flat steel of the stainless steel perforated plate as the hoisting point, which will damage the stainless steel perforated plate. The bottom of the package should be used as the hoisting position.
