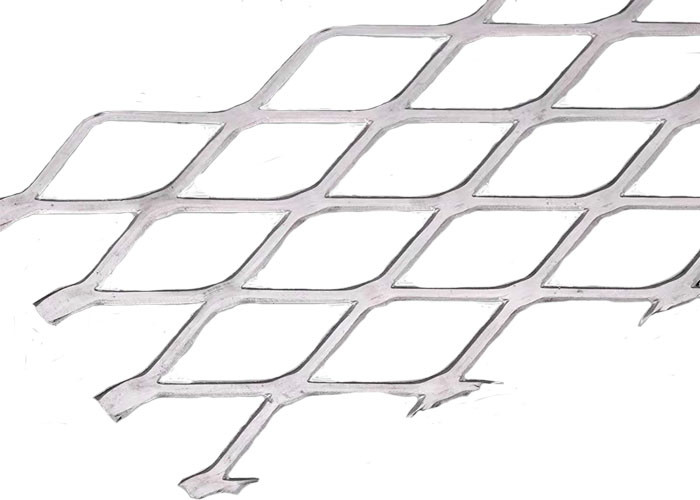

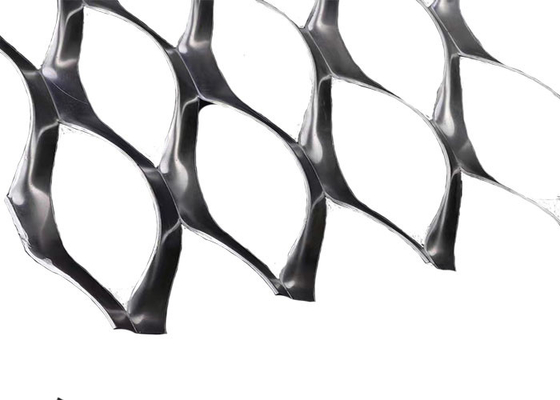

Diamond Shaped Hole Of Aluminum Mesh Ceiling Of Curtain Wall Metal Decorative Mesh
1. Product Introduction
Steel grating is also called steel grating. The grating is a kind of steel product with a square grid in the middle that is arranged cross-arranged with flat steel at a certain interval and welded into a square grid. It is mainly used as a gutter cover. , Steel structure platform slabs, step boards of steel ladders, etc., crossbars generally use twisted square steel.
2. Parameter table
| EXPENDED FLATTENED MESH |
| LWD(mm) |
SWD(mm) |
Strand Width |
Strand Gauge |
%Free Area |
Approx.Kg/m2 |
| 6.05 |
3.38 |
0.5 |
0.8 |
50 |
2.1 |
| 10.24 |
5.84 |
0.5 |
0.8 |
75 |
1.2 |
| 10.24 |
5.84 |
0.9 |
1.2 |
65 |
3.2 |
| 3.80 |
2.10 |
0.8 |
0.6 |
46 |
2.1 |
| 14.20 |
4.80 |
1.8 |
0.9 |
52 |
3.3 |
| 24.40 |
7.10 |
2.4 |
1.1 |
57 |
3.4 |
| 23.20 |
5.80 |
3.2 |
1.5 |
43 |
6.3 |
| 32.70 |
10.90 |
3.2 |
1.5 |
59 |
4 |
| 33.50 |
12.40 |
2.3 |
1.1 |
71 |
2.5 |
| 42.90 |
14.20 |
4.6 |
2.7 |
58 |
8.6 |
| 39.10 |
18.30 |
4.7 |
2.7 |
60 |
7.6 |
| 43.20 |
17.08 |
3.2 |
1.5 |
69 |
3.2 |
| 69.80 |
37.10 |
5.5 |
2.1 |
75 |
3.9 |
3. Product application
Products used in various industrial fields. The center distance of the loaded flat steel of this series of steel gratings is 30mm, which meets the requirements of American standards. In the entire series of steel gratings, it has the strongest resistance to surface impact. It is widely used in power plants, refineries, sewage treatment plants, granaries, chemical plants, highways, airports and docks and other platforms, walkways and drainage ditch covers, stair steps, etc. Among them, the toothed steel grating can be used in wet and slippery places, and is especially suitable for offshore oil production platforms.
4. Product advantages
Light weight, good rigidity and high strength; 3.0mm thick aluminum plate has a reverse weight of 8kg per square meter and a tensile strength of 100-280n / mm2.
.
5. Production process
Cut the whole roll of the board to the size you need. If the edge of the board in the production process exceeds the tolerance range you require, our skilled technicians can help you remove the excess edge according to your requirements.
6. Installation method
It can be fixed by bending and directly sticking to the equipment or the parts that need to be installed. This method of installation is generally applicable to the horizontal placement of the Punching Net, which is fixed by its own weight, after the bending of the punching net in compressive strength will also increase a lot.
7. Matters Needing Attention
During the cleaning process, especially when cleaning the punching mesh products with extremely thin plates, pay attention not to hurt the plates of the punching mesh and avoid twisting and deformation of the plates of the punching mesh.
8. Packing method
The bearing flat steel and edging flat steel of stainless steel punching plate have high strength only in the height direction of stainless steel punching plate (perpendicular to the plane direction of stainless steel punching plate), and unreasonable lateral stress will lead to deformation or damage. It is recommended to use nylon lifting belt for lifting and unloading. If it is hoisted with steel wire rope, pay attention to protect the flat steel at the edge of stainless steel punching plate, Prevent permanent deformation or damage to the outside of the stainless steel punching plate.
