50 * 100 Plastic Spraying Logistics Turnover Cage Movable Storage Metal Pallet Cage
1. Product introduction
The folding storage cage is designed to provide convenience for access at any time. When stacking and storing, you can open the small door to store or take out items at any time, so as to avoid the trouble of turning over the warehouse. Moreover, it is stored after folding, which greatly saves space. The non foldable storage cage has a large bearing weight due to special reinforcement treatment. Generally, it can be stacked in multiple layers.
Traction storage cage is to install traction devices at the left and right positions of the storage cage. Generally, with casters, the storage cage is connected front and rear, which can easily flow freely in a smooth ground.

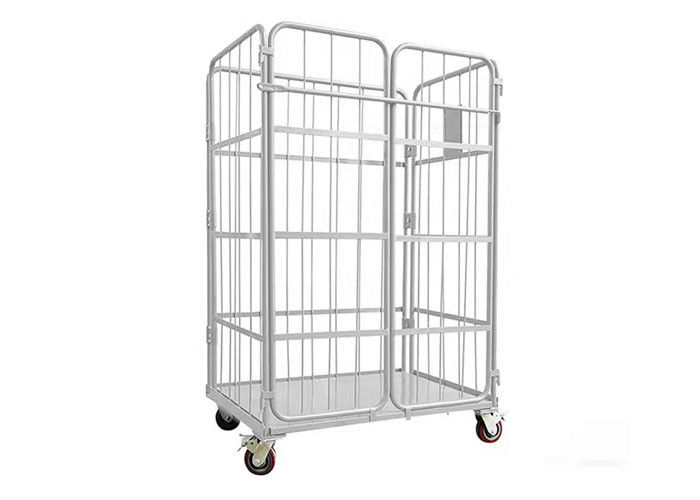

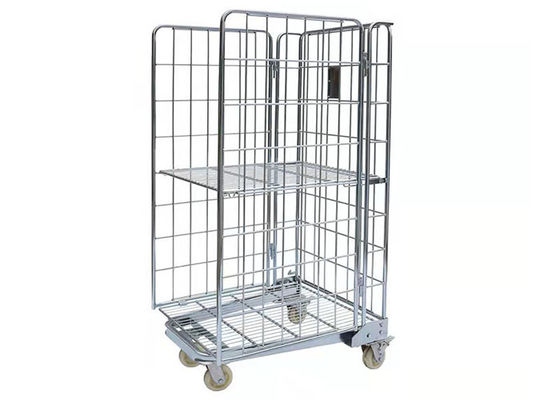

The bottom of the caster storage cage is equipped with wheels, generally two universal wheels and two brake wheels, which are flexible and light, and are mostly suitable for production workshops.
The heavy-duty storage cage is a special storage cage developed by the storage cage according to the needs of customers. It is welded with angle steel and rectangular pipe. Compared with the ordinary storage cage, it has the characteristics of large bearing capacity and firm structure, and adopts plastic spraying treatment.
2. Parameter table
A Series
| Model |
Specifications
(mm)
|
Wire diameter(mm) |
Grid (mm) |
Bearing(kg) |
Dead weight(kg) |
| A-1 |
800X600X640 |
5.8 |
50X50 |
800 |
27 |
| A-2 |
800X600X640 |
5.6 |
50X50 |
600 |
25 |
| A-3 |
800X600X640 |
4.8 |
50X50 |
500 |
21 |
| A-4 |
800X600X640 |
4.8 |
50X100 |
400 |
19 |
B Series
| Model |
Specifications
(mm)
|
Wire diameter(mm) |
Grid (mm) |
Bearing(kg) |
Dead weight(kg) |
| B-1 |
1000X800X840 |
6.0 |
50X50 |
1300 |
44 |
| B-2 |
1000X800X840 |
5.8 |
50X50 |
1200 |
41 |
| B-3 |
1000X800X840 |
5.6 |
50X50 |
1000 |
39 |
| B-4 |
1000X800X840 |
5.3 |
50X50 |
800 |
36 |
| B-5 |
1000X800X840 |
4.8 |
50X50 |
600 |
31 |
C Series
| Model |
Specifications
(mm)
|
Wire diameter(mm |
Grid (mm) |
Bearing(kg) |
Dead weight(kg) |
| C-1 |
1200X100X890 |
6.0 |
50X50 |
1800 |
59 |
| C-2 |
1200X100X890 |
5.8 |
50X50 |
1500 |
55 |
| C-3 |
1200X100X890 |
5.6 |
50X50 |
1300 |
52 |
| C-4 |
1200X100X890 |
5.3 |
50X50 |
1000 |
47 |
| C-5 |
1200X100X890 |
4.8 |
50X50 |
800 |
41 |
| C-6 |
1200X100X890 |
5.8 |
50X100 |
1000 |
47 |
| C-7 |
1200X100X890 |
4.8 |
50X100 |
500 |
36
|
3. Product application
1. Used for storage, classification, transportation and storage of raw materials, semi-finished products and finished products. It can be used not only as a three-dimensional means of storage, transportation, loading and unloading, but also as a turnover box for logistics, but also as a sales tool. It is applicable to all links of logistics turnover and runs through the whole process of logistics. It is common in large warehouse supermarkets and manufacturing industries.
2. The storage cage can be used not only in the factory production workshop, but also in the supermarket as display, promotion and storage, and can be used outdoors. It is widely used in die casting, forging parts, auto parts, motorcycle parts, metal stamping parts, engineering machinery parts, metal products, pipe fittings, gears, building bathroom parts, lighting, furniture, logistics, catering, food and other industries. The improved storage cage can be placed on shelves, assembly lines or stacked: the storage cage with wheels can be easily and quickly turned around in the workshop, and the storage cage with PVC plate or iron plate can prevent small parts from leaking.
3. The storage cage has the advantages of simple operation, wide use and service life of up to ten years. The storage cage is used to store goods with uniform specifications, fixed capacity, clear storage and easy counting. Various handling equipment can be used for handling, and it can stack four layers to realize three-dimensional storage; When the empty cage is stored, it is folded to save space. Easy to use, galvanized surface, anti factory and outdoor environment corrosion, long service life. It is made by butt welding with strong steel bars, and the bottom is welded and reinforced with U-shaped channel steel to make the structure more firm. With handling equipment, it is widely used in various logistics links such as transportation, handling, loading and unloading and storage to reduce costs and improve efficiency. The warehouse cage is equipped with Wantong board or paperboard to effectively protect articles that are easy to scratch the surface
4. Butterfly cage is a kind of storage container widely used in manufacturing enterprises and large storage supermarkets. It is widely used in the temporary storage, transportation, sorting and storage of raw materials, semi-finished products and finished products. Butterfly cage is also a special packaging form, which has a similar function to pallet, but its steel material, mesh and three-dimensional structure determine that the storage cage can be used not only as a three-dimensional means of loading, unloading, storage and transportation, but also as a logistics turnover box and a sales tool. The function of butterfly cage has gone deep into the fields of production, circulation and consumption. It has gone through the links of temporary storage, packaging, loading and unloading, storage and transportation, which runs through the whole process of logistics.
5. The role of butterfly cage in manufacturing enterprises: its solid latch mechanism can not only ensure the safe closing of Meigu cage during storage stacking, but also ensure the smooth opening and closing under various states to store materials. Spot pressure welding to fix the surface to ensure the strength and durability of butterfly cage storage and stacking. The anti-skid stop not only strengthens the strength of the butterfly cage, but also ensures that the Meigu cage on the upper layer does not tilt forward and slide during stacking, which can ensure safety. Its reinforced hinge plays a reinforcing and protective role to prevent jumping when storing objects. Spiral hinge makes the cage fold when not in use, reducing the occupied space. The bottom is reinforced with U-shaped steel to ensure the bearing capacity and firmness of the cage. The special cage foot structure conforms to the mechanical principle, which is convenient for plane placement and three-dimensional stacking, as well as the handling of forklift, pallet truck and trolley. As the cost of logistics is gradually valued by enterprises, American cage will also be widely used in more manufacturing enterprises. He has gradually replaced the traditional wooden packaging.
4. Installation method
1. For ease of use, storage cages are designed to be foldable. Therefore, it needs to be assembled before use
2. Goods storage cages are widely used in warehouses, supermarkets, exhibitions and so on. When the storage cage is placed horizontally on the ground, the goods can be accessed from the top of the storage cage; When the storage cage is stacked, the front of the storage cage can be opened to access goods from the front.
3. When the storage cage is empty, it is best to fold it for storage and make full use of the space. After assembly, it can be placed horizontally or stacked according to the situation.
4. Before installation and construction, be familiar with drawings, and prepare construction scheme for three-dimensional warehouse, special or complex installation.
5. Before installation, the transportation road and power supply on the installation site shall be known.
6. Before installation and construction, the on-site roof and internal painting works shall be basically completed, the relevant foundation floors and ditches shall have been completed, and the concrete strength shall not be less than 75% of the design strength; Sundries and garbage at and near the installation site shall be removed.
7. Unpack all the packages on the shelf and check whether all parts and accessories are complete according to the installation drawings.
8. Install the main shelf. Place the main shelf in a reasonable position as shown in the drawing. One end of the beam is aligned with the bayonet of the main frame column and the other end is aligned with the bayonet of the sub frame. Install the screws, adjust them to an appropriate distance, and tighten the screws with an adjustable wrench.
9. Install the auxiliary shelf. Arrange the beam and column of the auxiliary shelf, then butt it with the column of the main shelf, adjust the distance, install the screws, and tighten the screws with an adjustable wrench.
10. After the shelf is installed, according to the acceptance standard of storage shelf, knock the corresponding parts of column and beam with rubber hammer to adjust them to the most appropriate position.
11. Finally, place the laminate on the beam and fix it with supporting inserts.
12. The rack installation shall be carried out according to the drawing. In case of any discrepancy in the site or design during construction, it shall be proposed in time, and the construction can be carried out only after the change is approved.
13. Various measuring and testing instruments, instruments, meters and equipment used in installation shall comply with the provisions of current national measurement regulations, and their accuracy grade shall not be lower than the accuracy grade required for installation.
14. The concealed works before shelf installation shall be inspected before concealment, and the construction can be continued only after they are qualified.
15. Self inspection shall be carried out during installation
.
