Hebei Changfeng Filter Material Co., Ltd.
One-stop solution for Filter production
Place of Origin: | An Ping China |
Brand Name: | Chang Feng |
Certification: | ISO9001 |
Model Number: | 9011-34-17 |
Minimum Order Quantity: | 50 Pieces |
---|---|
Price: | Negotiable |
Packaging Details: | Woven bag |
Delivery Time: | 3-5 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5000 Kilogram/Kilograms per Week |

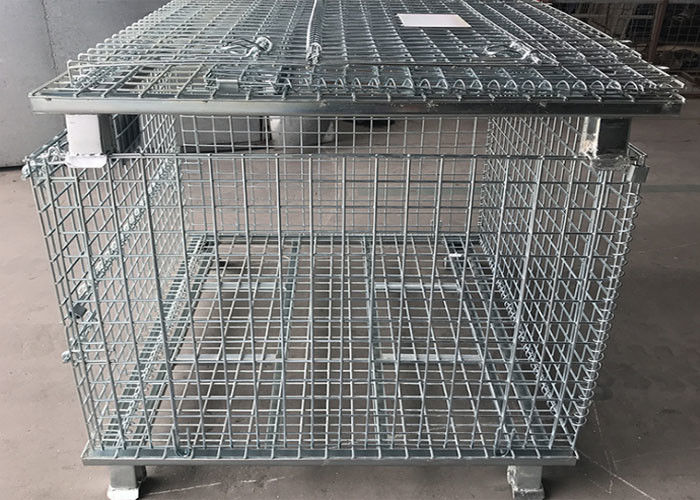

Product Name: | Metal Pallet Cage(NEW) | Place Of Production: | Hengshui, China |
---|---|---|---|
Material: | Q195 | Wire Diameter: | 6.4mm |
Mesh Spacing: | 100*100 | Machinery Test Report: | Provided |
MOQ: | 50 Pieces | Packing: | Plastic Film |
Use: | For Each Plant | Applicable Industries: | Various Industries |
Surface Treatment: | Electrostatic Spraying | Application: | Metal Stamping Parts, Engineering Machinery Accessories, Metal Products, Pipe Fittings, Gears |
High Light: | conventional metal pallet cage,6.4mm metal pallet cage,galvanized metal pallet cage |
Storage cages can be divided into metal mesh folding storage cages and frame metal mesh folding storage cages according to whether there is a frame or not. The metal mesh folding storage cage adopts the metal mesh structure, which has the advantages of light self weight and semi open. It is convenient to pick up goods and can observe the internal goods. The frame metal mesh folding storage cage is more rigid than the full mesh type, easy to fold and widely used.
A Series
Model |
Specifications (mm) |
Wire diameter(mm) | Grid (mm) | Bearing(kg) | Dead weight(kg) |
A-1 | 800X600X640 | 5.8 | 50X50 | 800 | 27 |
A-2 | 800X600X640 | 5.6 | 50X50 | 600 | 25 |
A-3 | 800X600X640 | 4.8 | 50X50 | 500 | 21 |
A-4 | 800X600X640 | 4.8 | 50X100 | 400 | 19 |
B Series
Model |
Specifications (mm) |
Wire diameter(mm) | Grid (mm) | Bearing(kg) | Dead weight(kg) |
B-1 | 1000X800X840 | 6.0 | 50X50 | 1300 | 44 |
B-2 | 1000X800X840 | 5.8 | 50X50 | 1200 | 41 |
B-3 | 1000X800X840 | 5.6 | 50X50 | 1000 | 39 |
B-4 | 1000X800X840 | 5.3 | 50X50 | 800 | 36 |
B-5 | 1000X800X840 | 4.8 | 50X50 | 600 | 31 |
C Series
Model |
Specifications (mm) |
Wire diameter(mm | Grid (mm) | Bearing(kg) | Dead weight(kg) |
C-1 | 1200X100X890 | 6.0 | 50X50 | 1800 | 59 |
C-2 | 1200X100X890 | 5.8 | 50X50 | 1500 | 55 |
C-3 | 1200X100X890 | 5.6 | 50X50 | 1300 | 52 |
C-4 | 1200X100X890 | 5.3 | 50X50 | 1000 | 47 |
C-5 | 1200X100X890 | 4.8 | 50X50 | 800 | 41 |
C-6 | 1200X100X890 | 5.8 | 50X100 | 1000 | 47 |
C-7 | 1200X100X890 | 4.8 | 50X100 | 500 |
36 |
1. Used for storage, classification, transportation and storage of raw materials, semi-finished products and finished products. It can be used not only as a three-dimensional means of storage, transportation, loading and unloading, but also as a turnover box for logistics, but also as a sales tool. It is applicable to all links of logistics turnover and runs through the whole process of logistics. It is common in large warehouse supermarkets and manufacturing industries.
2. The storage cage can be used not only in the factory production workshop, but also in the supermarket as display, promotion and storage, and can be used outdoors. It is widely used in die casting, forging parts, auto parts, motorcycle parts, metal stamping parts, engineering machinery parts, metal products, pipe fittings, gears, building bathroom parts, lighting, furniture, logistics, catering, food and other industries. The improved storage cage can be placed on shelves, assembly lines or stacked: the storage cage with wheels can be easily and quickly turned around in the workshop, and the storage cage with PVC plate or iron plate can prevent small parts from leaking.

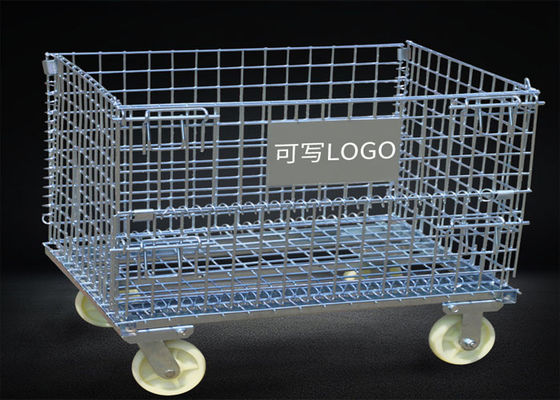

1. Wheels can be installed at the bottom, which is extremely convenient for internal turnover in the factory.
2. The storage cage has uniform specifications and fixed capacity. The appearance of the storage cage is galvanized or sprayed (the color of the storage cage can be produced according to the customer's requirements).
3. The goods stored in storage cages are burned. Each storage cage can be numbered to facilitate the inventory of the warehouse.
4. The storage cage can be stacked up to four floors high to realize the three-dimensional storage of the warehouse and save space.
5. With forklift, elevator, crane and other equipment, the storage cage can be used for transportation, handling, loading and unloading, storage and storage and storage of the storage cage, which is suitable for all links of logistics.
6. The storage cage is spot welded with strong steel bars, and the bottom of the storage cage is welded and reinforced with U-shaped channel steel to make the structure more solid. The storage cage has the advantages of simple operation, wide application and long service life. It can also be modified to use other appliances. (e.g. feet with wheels)
7.As a storage container, it can be used independently or with forklift and other handling tools; Consistent specifications and fixed capacity, which is conducive to warehouse inventory; It is welded from high-quality steel, with strong bearing strength and a wide range of storage types. It can be used in many ways, not only as an independent storage container, but also with a forklift for turnover or transfer, but also with wheels for mobile use. It can also be stably stacked to four or five floors to realize three-dimensional storage. Flexibility, half of the door net can be opened for inventory or picking up when stacking or not stacking.
8. The most prominent feature of the storage cage is its folding structure, which can help enterprises improve storage space and save turnover and transportation costs. The material used determines that the storage cage will not be corroded, aged, deformed, durable, and the service life can reach 10 years. Processing with net cover, caster, hollow plate, bottom plate, traction tools, interlayer mesh, etc.
5. Production process
1. The chassis is processed by the bending machine with raw material plates, which are usually 18 and 2.5, then cut and manually welded into channel steel. Chassis manipulation is an important parameter of bearing. There are two kinds of welding between the bottom mesh and the bottom channel steel. One is manual welding, which can not ensure that each contact point is welded; The other is full welding technology. Each contact point of channel steel and mesh passes through machine welding machine, which has stronger bearing capacity. Finally, the mesh and chassis are assembled by spring and return buckle.
2. The mesh and chassis are assembled into a storage cage through springs and snap backs
3. The key raw material of the storage cage is the high-strength steel wire made of high-speed wire, and the general wire pitch is 4.8mm, 5mm, 6mm and 6.4mm. The grid interval is generally 50 × 100,100 × 100,50 × 50, 50x25 and 25x25. The bottom end of the storage cage is reinforced with W-shaped steel. The W-shaped steel reinforcement is cold rolled by the cold rolling strip mill, and the four legs of the bottom end are stamped with stamping parts. Generally, the forming sheet is 2 stamping parts, and then 2 stamping parts are welded by electric welding. The foot height of the storage cage is generally 100, which is also 120 mm high.
6. Installation method
1. Install the main shelf. Place the main shelf in a reasonable position as shown in the drawing. One end of the beam is aligned with the bayonet of the main frame column and the other end is aligned with the bayonet of the sub frame. Install the screws, adjust them to an appropriate distance, and tighten the screws with an adjustable wrench.
2. Install the auxiliary shelf. Arrange the beam and column of the auxiliary shelf, then butt it with the column of the main shelf, adjust the distance, install the screws, and tighten the screws with an adjustable wrench.
3. After the shelf is installed, according to the acceptance standard of storage shelf, knock the corresponding parts of column and beam with rubber hammer to adjust them to the most appropriate position.
4. Finally, place the laminate on the beam and fix it with supporting inserts.
5. The rack installation shall be carried out according to the drawing. In case of any discrepancy in the site or design during construction, it shall be proposed in time, and the construction can be carried out only after the change is approved.
6. Various measuring and testing instruments, instruments, meters and equipment used in installation shall comply with the provisions of current national measurement regulations, and their accuracy grade shall not be lower than the accuracy grade required for installation.
7. The concealed works before shelf installation shall be inspected before concealment, and the construction can be continued only after they are qualified.
8. Self inspection shall be carried out during installation.
7. matters needing attention
1. Keep away from the sun. The tray storage cage shall be placed in a position to avoid direct sunlight outside the window. The storage cage is exposed to the sun for a long time, which will change the paint color; The colored paint layer is cracked and dropped, and the metal is oxidized and degenerated.
2. Block moisture. The indoor humidity shall be maintained within the normal value. The storage cage shall be far away from the humidifier. Wetting will lead to metal corrosion, chromium plating and film removal. When the storage cage is cleaned, do not clean it with boiled water. Wipe it with a wet cloth, but do not wash it with running water.
3. Remove rust. If the storage cage is rusted, don't polish it with sandpaper. If the rust is small and shallow, cotton yarn can be dipped in engine oil and applied to the rust. After a while, the rust can be removed with cloth. If the rust has expanded and become heavier, relevant technicians shall be invited to repair it.
4. The storage cage should be stored in a good environment, because if the environment is too humid or the environment is very poor, the storage cage will soon rust and it is difficult to remove. Always pay attention that once you get wet, wipe it with a dry towel in time and always keep it dry. The storage conditions of the warehouse are generally dry and ventilated, and this should be paid attention to in the storage of storage equipment. It shall not be stored in a humid environment, otherwise some storage cages made of materials will rust, and it is difficult to remove rust traces due to structural problems. Therefore, it shall be noted that they shall not touch water and shall be kept dry during use.
5. Storage cages should be kept away from acidic and alkaline substances, such as some vinegar, hydrochloric acid and soapy water, otherwise chemical effects will occur. During daily use, the storage cage shall not be exposed to acidic or alkaline substances, which will have some negative effects on the storage cage. In case of contact, chemical action may occur and then corrosive to it.
6. When stacking storage cages, be careful not to use too much force, because if the external force collision is very fierce, it will directly cause its deformation.
7. The storage cage is very convenient when transporting or stacking goods, but it should be noted that it cannot exceed its bearing capacity, otherwise it will cause deformation and other problems.
8. During the movement of the storage cage, the hydraulic truck and forklift shall keep moving forward, backward and up and down at a constant speed to avoid sudden braking and sudden rotation, pallet damage and cargo collapse; When the storage cage is put on the shelf, the storage cage shall be placed stably on the shelf beam, and the tray length shall be more than 50mm larger than the outer diameter of the shelf beam.
Place the folded storage cage one by one from low to high, pack it with packaging film, and trap both ends of the storage cage with packaging tape to prevent sliding. It can also be packaged according to customer requirements.
