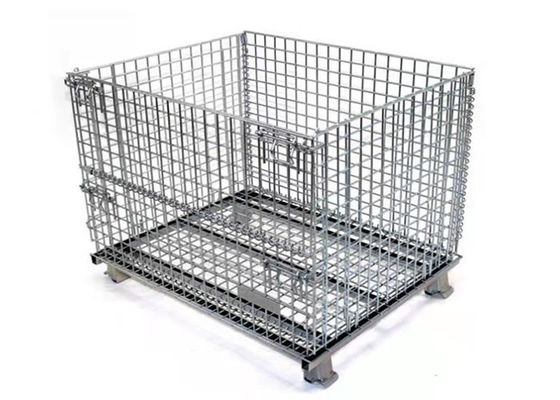

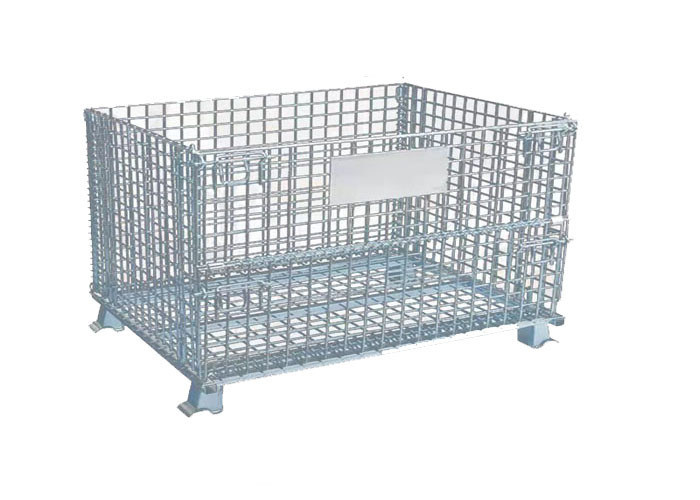

Stackable Express Sorting 4.8mm Metal Pallet Cage

Foldable Butterfly Cage Metal Turnover Box Stackable Express Sorting Frame

1. Product introduction

Storage cage, also known as warehouse cage and butterfly cage, is a very important type of logistics container in storage and transportation. It has the advantages of fixed storage capacity, neat stacking, clear storage, convenient inventory counting and so on. At the same time, it also improves the effective utilization of storage space. The storage cage can be folded freely and can be folded and stored when not in use, saving warehouse space.

2. Parameter table

                                                        A Series

                                                         B Series

                                                        C Series

3. Product application

  Used for storage, classification, transportation and storage of raw materials, semi-finished products and finished products. It can be used not only as a three-dimensional means of storage, transportation, loading and unloading, but also as a turnover box for logistics, but also as a sales tool. It is applicable to all links of logistics turnover and runs through the whole process of logistics. It is common in large warehouse supermarkets and manufacturing industries.

4. Product advantages

1. It is made of high-quality steel by cold rolling, hardening and welding, with high strength and large loading capacity.

2. The specification is unified, the capacity is fixed, the stored goods are clear at a glance, and it is easy to inventory.

3. The surface is galvanized, beautiful, anti-oxidation and long service life.

4. International standards are adopted, which can be used together with containers to effectively improve space utilization.

5. Production process

  The storage cage uses Q195 high carbon iron wire as raw material and is cold drawn into finished wire. Then the semi-finished mesh is formed by welding. After the mesh is made, it can be galvanized or sprayed with plastic for surface treatment (the storage cage is generally Galvanized). After the surface treatment, it can be assembled and finally made into finished products. The size of the storage cage can be customized according to the customer's requirements. When purchasing the storage cage, you should consider the external size of your product, the maximum load-bearing requirements you design, whether your storage cage is used for storage or turnover, whether it needs stacking, etc.

6. Installation method

  1. For ease of use, storage cages are designed to be foldable. Therefore, it needs to be assembled before use

2. Goods storage cages are widely used in warehouses, supermarkets, exhibitions and so on. When the storage cage is placed horizontally on the ground, the goods can be accessed from the top of the storage cage; When the storage cage is stacked, the front of the storage cage can be opened to access goods from the front.

3. When the storage cage is empty, it is best to fold it for storage and make full use of the space. After assembly, it can be placed horizontally or stacked according to the situation.

4. Before installation and construction, be familiar with drawings, and prepare construction scheme for three-dimensional warehouse, special or complex installation.

two

5. Before installation, the transportation road and power supply on the installation site shall be known.

7. matters needing attention

1. The loading and use instructions of the storage cage shall be clear, and shall be used within the bearing range, and shall not be collided by the forklift.

2. Protective measures shall be taken for the storage cage. It shall not be placed in a wet place, which is easy to rust the surface of the product. Store the specified items according to the specified requirements. Do not store strong acid and alkali items, and do not put items randomly. Add a layer of plastic film to carry the items with water.

3. The surface of the storage cage is usually sprayed with antirust paint or galvanized, and the metal material box is rusted. When the surface treatment of the box is worn, it is treated with self painting, which is economical. When the surface of the box is seriously worn, it can be sprayed again.

4. The conveying system is controlled by PLC and exchanges data and information with other equipment through the network. When the network host computer is shut down, the conveying control system and the stacker control system can directly realize point-to-point communication and data exchange to ensure the normal operation of incoming and outgoing conveying. When the upper computer resumes working, the control system

The system automatically transmits the data to the upper computer.

5. Sorting system. It is connected with PLC, other equipment and communication lines through fieldbus. Tower sorters shall be selected for distribution centers that require a very large volume of distribution and sorting business.

6. Control system. The control system adopts fieldbus control and supports remote control, which makes the system maintenance more convenient and fast.

8. Packing method

  Place the folded storage cage one by one from low to high, pack it with packaging film, and trap both ends of the storage cage with packaging tape to prevent sliding. It can also be packaged according to customer requirements.
