Polyurethane Imide , Impact Resistant And Anti Peeling Air Filter Adhesive

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-54-2

Payment & Shipping Terms:

Minimum Order Quantity:	5 / Tons
Price:	Negotiable
Packaging Details:	mental drum
Delivery Time:	8-10 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 Ton/Tons per Month PU glue A black and B for heavy duty air filter production

Contact Now

Product Name::

Air Filter Adhesive

Component Proportion Ratio:

40%

Place Of Origin:

China

MF:

Mixture

EINECS No:

210-898-8

Quality:

Top-quality

Material:

100% Silicone

Type:

Two Component

Appearance:

White Viscous Liquid

Keywords:

Hot Melt Adhesive Products

High Light:

Mixture Two Component Polyurethane Adhesive

Polyurethane Imide Air Filter Adhesive

Impact Resistant Hot Melt Adhesive

Polyurethane Imide, Impact-Resistant And Anti-Peeling Air Filter Adhesive

1. Product introduction

The position of the end cover is to integrate the filter paper and the framework at both ends of the filter element. The function of the filter element glue is to bond the end cover and the filter paper framework

2. Parameter table

Two-component polyurethane adhesive for machine

component proportion ratio is 100:25

Material-A

Material-B

Weight

Small barrel :25KG

6.25KG

Big barrel :50KG

12.5KG

Physical nature

orange-red viscous liquid (color based on your request to configure)

brown-yellow liquid

viscosity

800-1000MPa.S(25°C)

25-50MPa.S(25°C)

density

1.02g/ml

package

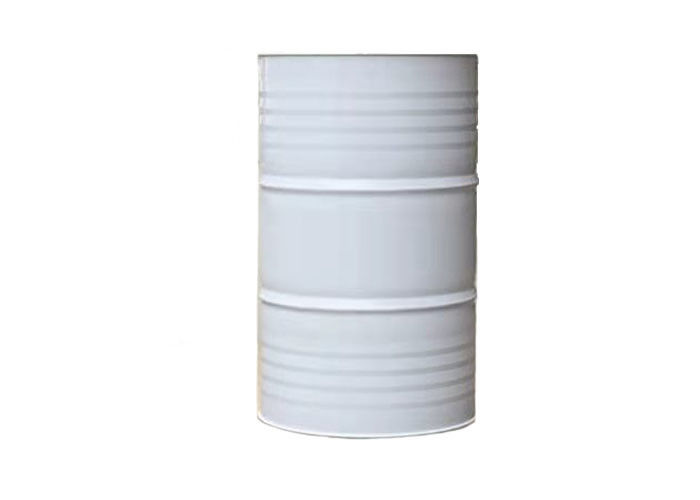

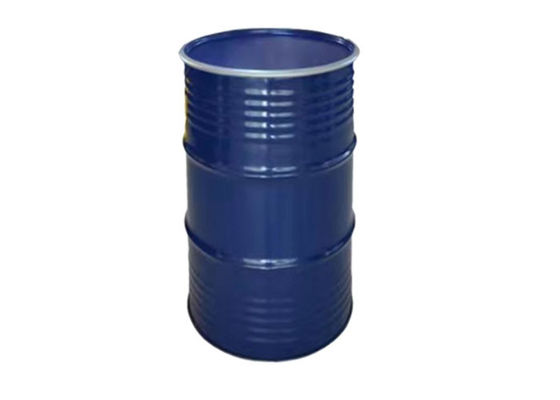

Plastic bucket or Tin bucket

Plastic bucket ,Tin bucket, Plastic pots

storage

1. Material-A and material-B can store up 3-6 months.

2. To appropriate indoor storage above 15°C

3. Method of operation

1. The surface of the end cover shall be cleaned to remove oil and dust, and dried thoroughly. There shall be no oil, water and other foreign matters on the surface, otherwise it will affect the bonding strength.
2. Inject an appropriate amount of adhesive into the end cap and place it for a moment to make the adhesive surface smooth and coated on all parts of the end cap.
3. Insert the filter element paper (or add a central pipe) into the end cover, check the surfaces of the two adhesive parts to ensure that they are in full contact, and then put a little pressure on the top to stand.
4. After curing for about 1 hour, turn over and glue with the other end cover. Package after 24 hours of complete drying, and use after 5 days.

4. Do’s and don’ts

1. The products are generally stored in a dry room, and pay attention to water, moisture and sun. Must cover the plug and cover, to avoid absorbing rubber moisture in the air, affect the results

2. Mould must be painted in front of the mould release agent,to be poured glue dry before.

3. A.B glue in ordinary temperature of 25 °C properly used, if the temperature is too high or too low will affect the use effect. You must use artificial methods of cooling or heating.
