Two Component Air Filter Adhesive 100 / 40 Ratio Of Hand Injected Pu Injection

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-55-31

Payment & Shipping Terms:

Minimum Order Quantity:	5 / Tons
Price:	Negotiable
Packaging Details:	Plastic bucket
Delivery Time:	8-10 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 Ton/Tons per Month PU glue A black and B for heavy duty air filter production

Contact Now

Detailed Product Description

Product Name::	Air Filter Adhesive	Color:	Orange-red
Quality:	Top-quality	Mixture:	Material A And B
Expiration Date:	Within 3-6 Months	Keywords:	Hot Melt Adhesive
Main Raw Material:	Polyurethane Imide	Type:	Liquid Glue, Hotmelt Adhesive
Classification:	Double Components Adhesives	Usage:	Footwear & Leather, Packing, Air Filter, Packing, Woodworking
High Light:	two component air filter adhesive , 100 / 40 ratio air filter adhesive , two component air filter glue

Two-Component 100:40 Ratio Of Hand-Injected PU Injection Glue Air Filter Adhesive

1. Product introduction

Filter adhesive is mainly composed of epoxy and hardener. In order to improve some properties, toughening agent, diluent, accelerator, coupling agent and other auxiliary materials can be added to meet different uses. Because the epoxy adhesive bonding strength is high, the versatility is strong, once had “The universal glue”, “The big force glue”said, in aviation, aerospace, automobile, machinery, construction, chemical industry, light industry, electronics, electrical appliances and daily life and other fields have been widely used.

It is an elastomer, and the filter end cap is produced by casting. In this way, the iron end cap and rubber sealing ring of the air filter element are omitted, and it is the most ideal product for the production of pull-type air filter elements.

wo-component polyurethane adhesive for machine

component proportion ratio is 100:40

2. Parameter table

Two-component polyurethane adhesive for machine component proportion ratio is 100:40
	Material-A	Material-B
Weight	Small barrel :25KG	10KG
	Big barrel :50KG	20KG
Physical nature	orange-red viscous liquid (color based on your request to configure)	brown-yellow liquid
viscosity	800-1000MPa.S(25°C)	25-50MPa.S(25°C)
density	1.02g/ml	1.02g/ml
package	Plastic bucket or Tin bucket	Plastic bucket ,Tin bucket, Plastic pots
storage	1. Material-A and material-B can store up 3-6 months.
	2. To appropriate indoor storage above 15°C

3. Instructions

1. Before using the glue every day, stir the glue A with a hand electric drill evenly, and shake the glue B.
2. Turn on the electric heating plate and adjust the temperature to 40-50 degrees. In winter, preheat glue A and B in a small container.
3. Wipe the mold with release agent.
4. Mix A and B glues in a ratio of 100:40, add 40% talc powder, and use a 2800 rpm motor to stir and mix the glue. The mixing time is determined by the amount of glue. Each 100 grams of glue is about 7-10 Second.
5. Pour the evenly mixed liquid into the mold, and then put the paper core to apply pressure.
6. Unmold after 10 minutes.

4. Product advantages

The special adhesive for two-component room temperature curing filter element has good adhesion to metal paper, etc., impact resistance, peel resistance and vibration fatigue resistance, as well as good wear resistance and oil resistance.

5. Storage and packaging

1. The storage period of AB material is 3-6 months.
2. It is advisable to store indoors above 15°C:

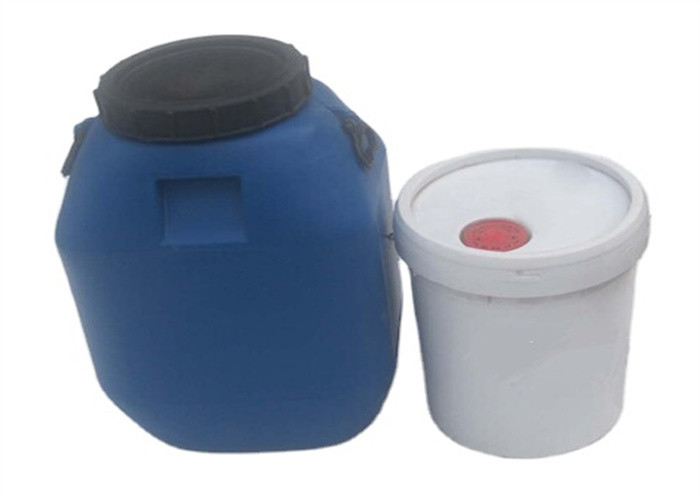

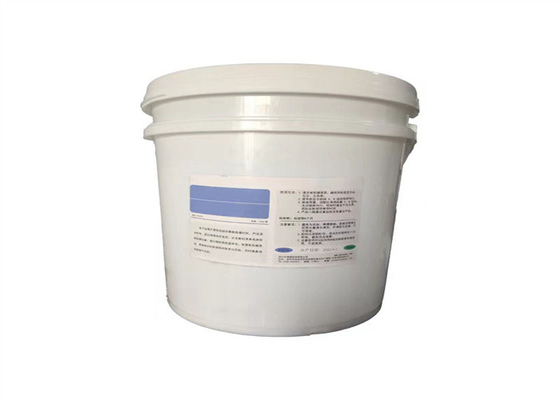

3. Packing in plastic barrels. A glue 50 kg, B glue 20 kg packaging

6. Precautions

1. This product is generally stored in a dry room, and pay attention to waterproof, moisture-proof and sun-proof. The inner plug and outer cover must be covered to prevent the rubber from absorbing moisture in the air and affecting the use effect.
2. A/B styrofoam can be used normally at room temperature (25℃), if the temperature is too high or too low, it will affect the use effect. Cooling or warming must be done artificially.
3. The mold must be coated with a release agent before pouring the glue, and the glue can be poured after it is dry.
Packing specification: 100:40 double sets of PU glue, 70kg for each set, including 50kg for A glue and 20kg for B glue
