OEM Air Filter Adhesive 100:25 Ratio Pu Based Tin Bucket Pacaged

PU Filter Mould PU filter element mold cabin filter hot melt glue Filter end cap



1. Product introduction



Two-component polyurethane adhesive for machine

component proportion ratio is 100:25



2. Parameter table





3. Product characteristics

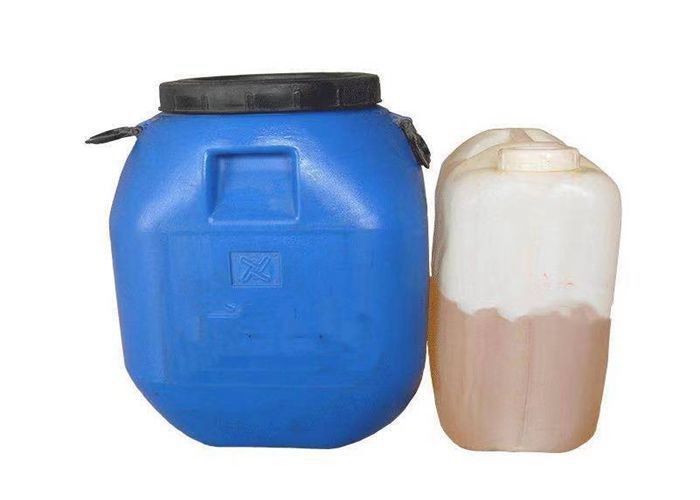

Material-A:Small barrel :25KGBig barrel :50KG

orange-red viscous liquid (color based on your request to configure)



4. Technology



1.The material must be full rocked after each to the plastic injection machine plastic injection so that the A material mixing evenly.

1.Every time the plastic injection machine plastic injection A material must be full before the shaking in order to the material until

2.AB material proportioning ratio of A:B=100:25 or 4:1.28°C,you can start operation

3.Material temperature controlled 24°C-28°C appropriate then you can start operation.



5. Product principle



1.The material must be full rocked after each to the plastic injection machine plastic injection so that the A material mixing evenly.

1.Everytime the plastic injection machine plastic injection A material must be full before the shaking in order to the material until

2.AB material proportioning ratio of A:B=100:25 or 4:1.28°C,you can start operation

3.Material temperature controlled 24°C-28°C appropriate then you can start operation.

4. Must be clean before using the mould release agent (Note:

The new plastic mould can be wiped free)

5 .If A and B is not reaction please measuring A and B ratio.

6. A and B must be sealed to .To avoid the air and water vapor reaction, as a result affecting the effect of colloidal



6. Product use



Because PU rubber has very good comprehensive properties, its application fields are also very wide, almost covering all aspects of industry, agriculture, medical treatment, national defense, etc.; in mining, metallurgy and other aspects, such as: sieve plates, shakers, etc. Mechanical applications such as: seals, plastic bags, rubber rollers, etc.; applications in the construction industry, such as waterproof materials, paving materials, potting materials, etc

7. Product advantage



1. Material-A should stirred evenly with plastic hand electric drill, material-B can shake, before used.

2. Open the electrocaloric plate temperature to 40-50 degrees, in winter material-A and material-B with a small container to preheat.

3. Wipe the mould with release agent

4. Each 1kg A add 3-6g water, also according to the local environment, such as the humidity in the air, workshop environment.

5. material-A and material-B are mixed at the mixture ratio of 100:40 ratio, then add 40% talcum powder(heavy calcium powder)(100:40:50±5), with 2800 rev / min motor to mix, mixing time determined by the amount of adhesive, per 100g of adhesive is approximately 7-10 seconds .

6. Pour the Mixed liquid into mould, then put the paper element and give a little pressure on it. 8-15 minutes later you can bring the mould down.



11. Method of operation



1.The material must be full rocked after each to the plastic injection machine plastic injection so that the A material mixing evenly.

1.Everytime the plastic injection machine plastic injection A material must be full before the shaking in order to the material until

2.AB material proportioning ratio of A:B=100:25 or 4:1.28°C,you can start operation

3.Material temperature controlled 24°C-28°C appropriate then you can start operation.

4. Must be clean before using the mould release agent (Note:

The new plastic mould can be wiped free)

5 .If A and B is not reaction please measuring A and B ratio.

6. A and B must be sealed to .To avoid the air and water vapor reaction, as a result affecting the effect of colloidal



12. Do’s and don’ts



1. The products are generally stored in a dry room, and pay attention to water, moisture and sun. Must cover the plug and cover, to avoid absorbing rubber moisture in the air, affect the results

2. Mould must be painted in front of the mould release agent,to be poured glue dry before.

3. A.B glue in ordinary temperature of 25 °C properly used, if the temperature is too high or too low will affect the use effect. You must use artificial methods of cooling or heating.



13. Company introduction



Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.

The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.

Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.
