Filter Element Material Of Dust Removal Equipment 76mm Thick End Cover

Filter Element Material Of Dust Removal Equipment 76mm Thick End Cover

  • Filter Element Material Of Dust Removal Equipment  76mm Thick End Cover
  • Filter Element Material Of Dust Removal Equipment  76mm Thick End Cover

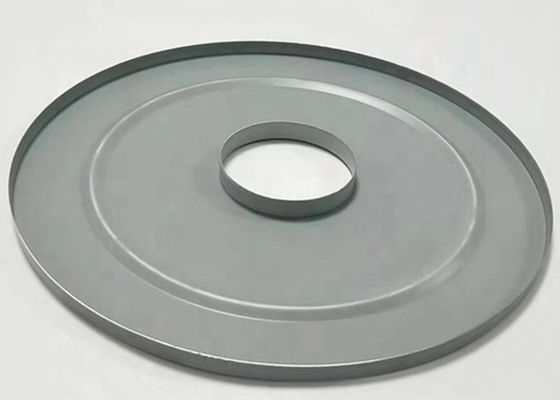

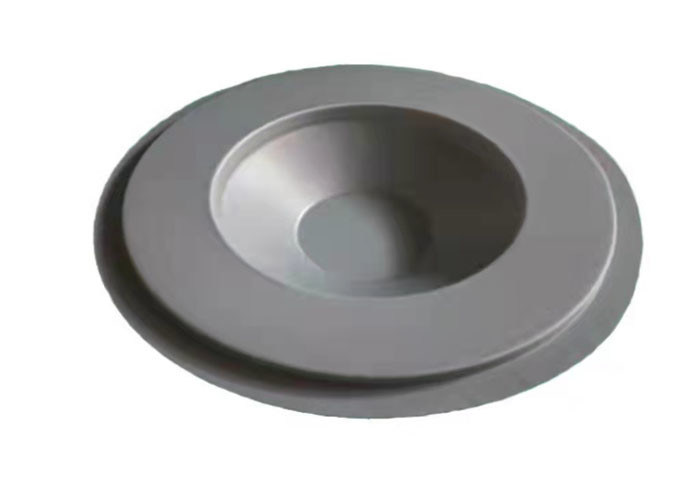

Filter Element Material Of Dust Removal Equipment  76mm Thick End Cover
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9040-44-07
Payment & Shipping Terms:
Minimum Order Quantity: 10 / set
Price: Negotiable
Packaging Details: covers' packaging: 1.Plastic sheets inside 2.PP Woven bag outside 3.According to your requiry
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Set/Sets per Week filter end caps 5000 sets/week
Contact Now
Detailed Product Description
Product Name: Filter End Caps MOQ: 50 PCS
Certifications: ISO 9001 Brand Name: CHANGFENG
Dimension: Customized According To Demand Thickness: 0.30 Mm To 1.00 Mm,
Packing Type: Bag Or Carton Material: Spray Plastic Or Anti-fingerprint
Applicable Industries: Environmental Protection Equipment Or Dust Removal Equipment Or Air Purification System
High Light:

high temperature 76mm end cap

,

dust removal equipment 76mm end cap

,

76mm filter end caps

Filter element material of dust removal equipment 76mm thick end cover



1. Product Description



  The end cap of the filter element mainly plays the role of sealing the two ends of the filter material and supporting the filter material. It mainly uses the steel plate according to the demand presses into each kind of shape. The end cap can effectively improve the bearing capacity of the filter material. Typically, one side of the end cap is pressed to place the end face of the filter material on the other side of the groove and bonded to the rubber seal, which seals the passage of the filter material and the filter element. The end cap is made of steel, plastic, and polyurethane foam. Filter end caps are suitable for all types of metal plate filters, pressing, casting, machining and galvanizing, anti-fingerprint and plastic materials. For decades, we have focused on metal filter caps. With various end caps for filters, the filter industry is our core business and we are able to build customer recommendations on the appropriate thickness.



2. Specifications



  There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.




Open Round End Cap with Tri-Bolt Holes
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner height 0.54 13.716
Outer height 0.5 12.7
Inner rim diameter 6.75 171.45
Open Round End Cap with Outer Lip
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner diameter 0.625 15.875
Outer height 0.368 9.3472
Lip 0.375 9.525
Open Round End Cap
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner height 0.5 12.7
Outer Height 0.5 12.7
Closed Round End Cap
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.375 212.725
Inner height 0.5 12.7
outer height 0.5 12.7
Closed Round End Cap with Bolt Hole
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.375 212.725
Inner height 0.5 12.7
Outer height 0.5 12.7
Bolt Hole 0.625 15.875
Open Round End Cap with Flange
  Inches Millimeters
Outer diameter 5.75 146.05
Inner diameter 2.5 63.5
Inner height 0.5 12.7
Outer height 0.278 7.0612
Closed Round End Cap
  Inches Millimeters
Outer diameter 5.25 133.35
Inner diameter 2.5 63.5
Inner height 0.875 22.225
Outer height 0.172 4.3688



3. Packing method



  The filter end cover already has a protective film, which can achieve a good end cover protection function. Especially during transportation, the caps should be packed one by one to prevent the caps from being scratched. The end caps are packaged and bundled with a braid. Put the packaged end caps into plastic bags, and finally pack them in high-quality wooden boxes, which are fast and easy to load and unload with forklifts.



4. FAQ



  The filter end cover already has a protective film, which can achieve a good end cover protection function. Especially during transportation, the caps should be packed one by one to prevent the caps from being scratched. The end caps are packaged and bundled with a braid. Put the packaged end caps into plastic bags, and finally pack them in high-quality wooden boxes, which are fast and easy to load and unload with forklifts.

1.Certificates:

RoHs,UL,SGS,MSDS,DIN53438

2.Payment terms:

50% deposit upon getting the order,balance against the B/L copy.

3.Delivery date:

About 7 working days(≤500pcs), special order is negotiable to be quicker.

4.Sample Terms:

We can supply 1-2 small samples for tree but express cost is covered by your side.

5.Minimum Order Quantity:

No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.

6.Price Terms:

EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.

7.Lead time:

3 Days for a 40ft container, weeks for two 40ft container.



5. matters needing attention



  The material selection of the end cover shall be consistent with the connection mode of the equipment, otherwise it cannot be used normally if it does not match the equipment. End covers of different materials shall be used in different temperature environments.





Filter Element Material Of Dust Removal Equipment  76mm Thick End Cover 0Filter Element Material Of Dust Removal Equipment  76mm Thick End Cover 1Filter Element Material Of Dust Removal Equipment  76mm Thick End Cover 2
