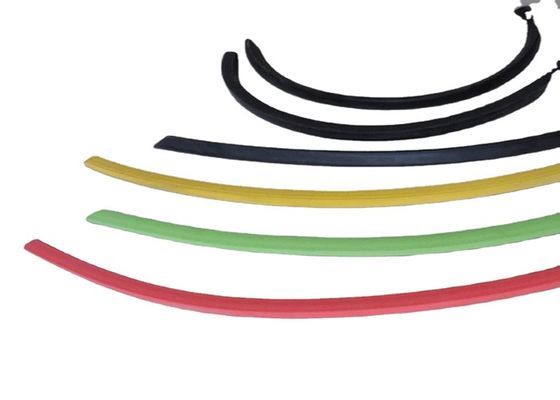

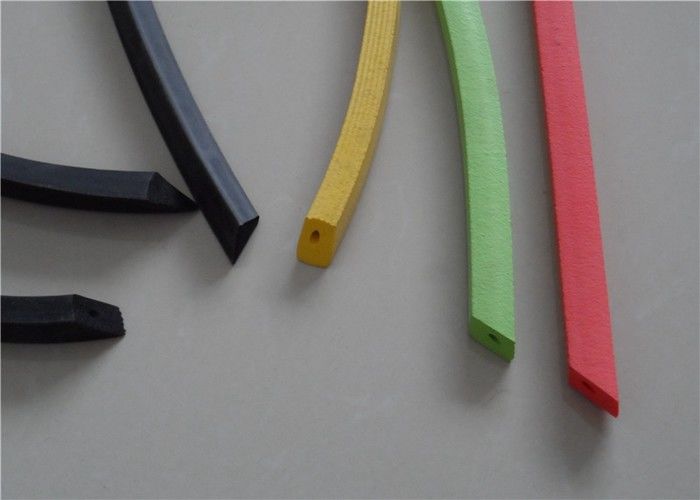

OEM Air Filter Seal , U Model Rubber Sealing Ring 10mm*12mm 27MPa

OEM Air Filter Seal , U Model Rubber Sealing Ring 10mm*12mm 27MPa

  • OEM Air Filter Seal , U Model Rubber Sealing Ring 10mm*12mm 27MPa
  • OEM Air Filter Seal , U Model Rubber Sealing Ring 10mm*12mm 27MPa
OEM Air Filter Seal , U Model Rubber Sealing Ring 10mm*12mm 27MPa
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-54-8
Payment & Shipping Terms:
Minimum Order Quantity: 5 Rolls
Price: Negotiable
Packaging Details: Insulated plastic outer carton
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 25 Roll/Rolls per Week
Contact Now
Detailed Product Description
Product Name: Air Filter Seal Color: Customized
MOQ: 10 Rolls Hardness: 85~90shore
Max Pressure: 27MPa Certification: ISO9001
Sample: Free Shape: Customer's Demand
Capacity: 1000pcs Per Day Packaging Details: Plastic Bag Or As Request
Size: 8*8, 10*10 , 10*12, 12*12 Type: O Model ,U Model,I Model
Supply Ability: 10000 Meter/Meters Per Day Rubber Seal: In Roll/ O Ring Rubber Gasket
Applicable Industries: Filter Cover, Manufacturing Plant, Machinery Repair Shops Texture Of Material: Made Of Chloroprene Rubber, Ethylene Propylene Diene Monomer Rubber, Silicone Rubber And Other Rubber Materials
High Light:

OEM rubber sealing ring

,

10mm*12mm Air Filter Seal

,

27MPa Air Filter Seal

10mm*12mm -40℃~150℃ ,Triangle Rubber Strip For Air Filter Cover



1. Specification parameters



Rubber Seal can produce solid rubber strip, hollow rubber strip, conductive rubber strip, foam rubber strip and special-shaped rubber strip of the following materials. Different cross-section structures can be designed according to the parts and conditions of use. Most customers are generally made of chloroprene rubber, ethylene propylene diene monomer rubber, silicone rubber and other rubber materials with excellent aging resistance due to the requirements of UV aging resistance and ozone resistance. Of course, we also have the ability to produce garlast? Ffkm perfluorinated rubber products. Our manufacturing methods are extrusion continuous vulcanization, extrusion vulcanization tank vulcanization or molding vulcanization. You can also tell us any geometry you need. Contact the sales personnel of RAST sealing products, and we will send technical personnel to assist you to complete the specified sealing system.



2. Data Sheet



Product name Rubber Seal
Type O model ,U model,I model
Size customized
Brand Name Chang Feng
texture of material Made of chloroprene rubber, ethylene propylene diene monomer rubber, silicone rubber and other rubber materials
working temperature -40℃~150℃
hardness 85~90shore
max pressure 27MPa
sample free
certification AQB
OEM accept
capacity 1000pcs per day
color Mainly black,Customized according to different colors
Square type 8x8, 10x10, 10x12, 12x12,
Triangle type 8x10, 10x12
Rubber seal: In roll / O ring rubber gasket



3. Used



Products are widely used in power systems, automobiles, airplanes, large air filters, refrigerators and various industrial parts. Rubber sealing strip is a kind of rubber sealing component that can prevent dust, air and water from entering the system. It mainly uses the elasticity of lip, cavity and flange in the body structure and the contact pressure generated by the surface of the assembled object (glass, metal parts, etc.) to seal and vacuum.



4. Product features



Using the elasticity of the lip, cavity, flange and other parts of the body structure and the contact pressure generated by the surface of the assembled object (glass, metal parts, etc.) to play the role of sealing and vacuum.



5. Technology



Solid rubber strip, hollow rubber strip, conductive rubber strip, foam rubber strip and special-shaped rubber strip can be designed with different cross-section structures according to their use parts and conditions. Most customers are generally made of chloroprene rubber, ethylene propylene diene monomer rubber, silicone rubber and other rubber materials with excellent aging resistance due to the requirements of UV aging resistance and ozone resistance.



6. principle



The rubber sealing component, which can prevent dust, air and water from entering the system, mainly uses the elasticity of the lip, cavity, flange and other parts of the body structure and the contact pressure generated by the surface of the assembled object (glass, metal parts, etc.) to play the role of sealing and vacuum.



7. Purpose



It is used in electric power system, automobile, aircraft, large air filter, refrigerator and various industrial parts. Rubber sealing strip is a kind of rubber sealing component which can prevent dust, air and water from entering the system



8.  Advantage



Prevent dust, air and water from entering the system

9.service

Contact Changfeng filter material sales personnel, we will send technicians to assist you to complete the specified sealing system.



9. FAQ



Q: What's the MOQ(Minimum Order Quantity)?
A: All filter products : MOQ = 300 pcs



Q: Could we apply samples?
A: You can easily contact us by E-mail, Skype, or telephone to make further arrangement for our samples.



Q: What's your terms of packing?
A: Covered with PE bags, outer brown carton and we could be customized for your request.



Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.



Q: What are the payment terms?
A: T/T, Western Union, Cash, L/C. First time buyer transaction: Cash Payment or at least 7 days at sight. Please pay some deposit of payment in advance, if payment ≥ 35,000 USD, 30% deposit in advance, balance before shipment.



Q: What is your loading port, terms of delivery and delivery time?
A: 1. Ningbo Port 2. FOB 3. Generally two weeks upon two weeks upon receipts of the deposit. If you have special requirement of delivery, please let us know.



10. Production process



Extrusion vulcanization can vulcanization or molding vulcanization.

Rubber sealing strips can be classified according to section shape, vulcanization method, application position and purpose, material and other methods.

(1) Discontinuous vulcanization method (cut the extruded rubber strip according to a certain length, put it into the vulcanizing tank for vulcanization, and extrude the semi-finished rubber strip

Put it into the model;

(2) Continuous vulcanization (microwave continuous vulcanization, salt bath continuous vulcanization, hot air continuous vulcanization)

In addition, some methods such as chemical method, etc.

Microwave continuous vulcanization composite sealing strip: microwave vulcanization technology is one of the key technologies of foreign energy crisis in 1970s

After the application and widely promoted production technology. Microwave continuous vulcanization technology can not only produce metal core, solid core rubber and sponge

Moreover, it is superior to other continuous vulcanization devices in energy saving and work efficiency improvement.



11. Operation method



Cut the sealing strip to the size you need, then stick it with the special glue for the filter element, and then stick it on the filter element cover with the glue to play an effective sealing role.

12. matters needing attention



Pay attention not to touch too much glue on the adhesive strip, otherwise it will overflow and affect the appearance of the filter element.
