Hebei Changfeng Filter Material Co., Ltd.
One-stop solution for Filter production
Place of Origin: | An Ping China |
Brand Name: | Chang Feng |
Certification: | ISO9001 |
Model Number: | 9009-54-8 |
Minimum Order Quantity: | 5 Rolls |
---|---|
Price: | Negotiable |
Packaging Details: | Insulated plastic outer carton |
Delivery Time: | 20 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 25 Roll/Rolls per Week |

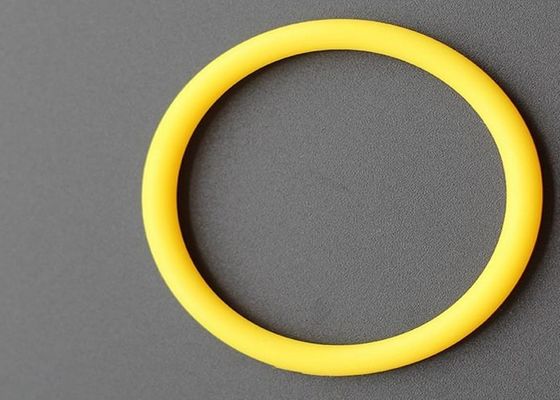

Product Name: | Air Filter Seal | Process: | Injection |
---|---|---|---|
Surface Finish: | Ra0.2-Ra12.5 | Tolerance: | ISO 3302-1 M Classes |
Hardness: | Shore5A-95A-80D | Density: | 1.12-1.25g/cm3 |
Drawing Format: | PDF,DWG,DXF,IGES ,STP,etc | Warrenty: | Pure Imported Raw Material |
Formulation: | TDI, MDI ,NDI , PPDI, Ethers, Esters, Polycaprolactones | Color: | Red,yellow,blue,green,black,orange,transparent,amber,clear,white |
High Light: | Polycaprolactones Air Filter Seal,1.25g/Cm3 rubber o ring seals,1.12g/Cm3 Air Filter Seal |
• Abrasion resistant
• High rebound
• Low compression set
• High load capacity
• High temperature
• Excellent dynamic mechanical formulation
• Oil resistance
• Solvent resistance
• Hydrolysis resistance
• Fire retardancy , anti-static, antioxidant, mildew resistance, anti-aging, lubrication and many more…
Name | NR | IR | SBR | BR | IIR | EPDM | CR | NBR | PU | CSM | ACM | ECO | VAE | SI | FPM |
Tensile strength | 5 | 4 | 4 | 2 | 2 | 2 | 4 | 4 | 5 | 4 | 1 | 2 | 4 | 1 | 4 |
Elongation | 5 | 5 | 4 | 2 | 4 | 4 | 4 | 4 | 5 | 4 | 1 | 1 | 1 | 5 | 1 |
Rebound-Resistance | 5 | 5 | 2 | 5 | 1 | 4 | 5 | 4 | 5 | 2 | 2 | 2 | 2 | 2 | 2 |
Tear Resistance | 5 | 4 | 2 | 2 | 2 | 2 | 4 | 4 | 5 | 2 | 1 | 2 | 2 | 1 | 2 |
Abrasion Resistance | 5 | 5 | 5 | 4 | 4 | 4 | 5 | 4 | 5 | 4 | 1 | 4 | 2 | 1 | 2 |
Impact Strength Resistance | 5 | 5 | 5 | 5 | 5 | 4 | 4 | 5 | 5 | 4 | 2 | 2 | 4 | 1 | 2 |
Gas Impermeability Resistance | 2 | 2 | 2 | 2 | 5 | 2 | 5 | 4 | 4 | 4 | 2 | 5 | 4 | 1 | 4 |
Oxygen Resistance | 2 | 2 | 2 | 2 | 5 | 4 | 4 | 2 | 4 | 5 | 4 | 4 | 5 | 5 | 5 |
Ozone Resistance | 1 | 1 | 1 | 1 | 4 | 5 | 4 | 1 | 4 | 5 | 4 | 5 | 5 | 5 | 5 |
Weathering Resistance | 2 | 2 | 2 | 2 | 5 | 5 | 4 | 2 | 4 | 4 | 4 | 4 | 5 | 5 | 5 |
Flame Resistance | 1 | 1 | 2 | 2 | 5 | 5 | 4 | 1 | 4 | 5 | 4 | 4 | 5 | 5 | 5 |
Heat Resistance | 1 | 1 | 2 | 2 | 4 | 5 | 4 | 2 | 2 | 4 | 4 | 4 | 4 | 5 | 5 |
Low Temperature Resistance | 4 | 4 | 2 | 4 | 2 | 4 | 2 | 2 | 4 | 4 | 4 | 4 | 5 | 5 | 5 |
Oil Resistance | 1 | 1 | 1 | 1 | 1 | 1 | 3 | 4 | 4 | 3 | 4 | 4 | 2 | 2 | 5 |
Animal Vegetable Oil Resistance | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 5 | 4 | 4 | 5 | 5 | 2 | 3 | 5 |
Alcohol Resistance | 4 | 4 | 4 | 4 | 4 | 3 | 5 | 4 | 3 | 5 | 4 | 4 | 4 | 4 | 4 |
Alkaline Resistance | 2 | 2 | 2 | 2 | 5 | 4 | 5 | 4 | 1 | 5 | 1 | 3 | 4 | 1 | 3 |
Acid Resistance | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 1 | 4 | 2 | 2 | 2 | 2 | 4 |
Aliphatic | 1 | 1 | 1 | 1 | 1 | 1 | 4 | 5 | 4 | 4 | 5 | 4 | 2 | 1 | 5 |
Aromatic | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | 1 | 2 | 2 | 4 | 1 | 1 | 5 |
Oxygenated-solvent Resistance | 4 | 4 | 4 | 4 | 5 | 5 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 1 |
Water Resistance | 5 | 5 | 4 | 5 | 5 | 5 | 4 | 4 | 2 | 4 | 1 | 4 | 4 | 4 | 4 |
Remark: 5-Best 4-Good 3-Medium 2-Bad 1-Worst |
Solid rubber strip, hollow rubber strip, conductive rubber strip, foam rubber strip and special-shaped rubber strip can be designed with different cross-section structures according to their use parts and conditions. Most customers are generally made of chloroprene rubber, ethylene propylene diene monomer rubber, silicone rubber and other rubber materials with excellent aging resistance due to the requirements of UV aging resistance and ozone resistance.
• Quick response in 12 hours
• Reliable imported raw material
• Strict analysis and testings on raw material before production
• Assistance from first idea through prototype
• First prototype inspection after mould and before volume production
• Quick delivery of prototypes or production needs
• Design assistance and parts consolidation
• In-house mold design (Insert, polyurethane, urethane molding)
• In-house formulations to provide the best possible urethane for your application
• Low-cost tooling
• Over 20 years of in-house experience
• Reliable after-sales service and support
Q1: Are you Factory?
A1: Yes, we are a factory focusing on polyurethane for 20 years.
Q2: How many workers in your factory?
A3: We have 85 workers and 80% of them have been working for us over 5 years.
Q3: Are customized and small order available?
A2: Yes, samples or drawings are enough. Either 1pcs or 1000pcs are available.
Q4: How do you make QC control?
A4: We have 10 inspectors inspect from raw material, sample, operation, semi-product to final product.
Q5: How do you deal with complaint from customers?
A5: We replace order or make reimbursement if it is our responsibilities.
6. company introduction
Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.
