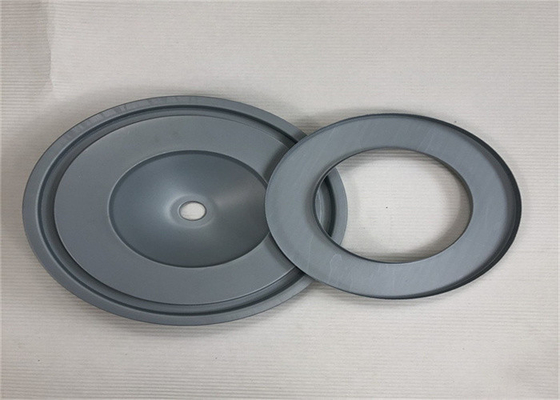

Waterproof Cleaner Stamping Filter End Caps Thickness 0.30 Mm

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-54-90

Payment & Shipping Terms:

Minimum Order Quantity:	10 / set
Price:	Negotiable
Packaging Details:	covers' packaging: 1.Plastic sheets inside 2.PP Woven bag outside 3.According to your requiry
Delivery Time:	8-10 work days
Payment Terms:	L/C, T/T
Supply Ability:	5000 Set/Sets per Week filter end caps 5000 sets/week

Contact Now

Detailed Product Description

Product Name:	Filter End Caps	MOQ:	50 PCS
Certifications:	ISO 9001	Brand Name:	CHANGFENG
Dimension:	As Your Requirements	Thickness:	0.30 Mm To 1.00 Mm,
Packing Type:	Binding Rope, Bag Or Carton	Material:	Iron Plate, Fingerprint Resistant
Applicable Industries:	Environmental Protection Equipment, Dust Removal Equipment, Air Purification System, Etc
High Light:	stamping filter end caps , thickness 0.30 mm filter end caps

Waterproof cleaner stamping dust filter cover head dust filter end cover

1. Product Description

The air filter shell is actually called an air filter. It is used to filter the air when the car is in the air; it filters the dust and debris in the air so that the air entering the engine is clean and will not accelerate the wear of the engine. Therefore, it is necessary to clean the dust of the air filter element regularly. If the blockage is severe, a new filter element needs to be replaced.

2. Specifications

There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.

Open Round End Cap with Tri-Bolt Holes
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.54	13.716
Outer height	0.5	12.7
Inner rim diameter	6.75	171.45
Open Round End Cap with Outer Lip
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner diameter	0.625	15.875
Outer height	0.368	9.3472
Lip	0.375	9.525

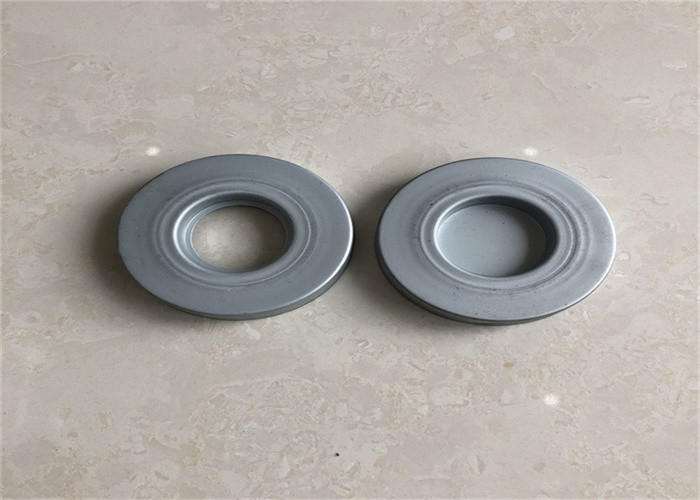

Open Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.5	12.7
Outer Height	0.5	12.7
Closed Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
outer height	0.5	12.7
Closed Round End Cap with Bolt Hole
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
Outer height	0.5	12.7
Bolt Hole	0.625	15.875
Open Round End Cap with Flange
	Inches	Millimeters
Outer diameter	5.75	146.05
Inner diameter	2.5	63.5
Inner height	0.5	12.7
Outer height	0.278	7.0612
Closed Round End Cap
	Inches	Millimeters
Outer diameter	5.25	133.35
Inner diameter	2.5	63.5
Inner height	0.875	22.225
Outer height	0.172	4.3688

3. Installation method

Quick disassembly and installation: one of the commonly used installation forms in the market at present. The top cover of the filter cartridge adopts a six claw plastic end cover. The mounting cap contains six jaws clamped by a chuck. The upper end of the industrial dust removal filter element is combined with the sealing ring. First, fix the mounting cap of the dust removal box on the mounting plate, and then clamp the six claws of the dust removal box in the six chute of the mounting cap. Turn so that the sealing ring is in full contact with the top of the mounting cap. This installation method is simple and convenient. When replacing the industrial dust removal filter element, the industrial dust removal filter element can be taken out only by reverse rotation. This installation form can only be vertical, and there is enough space at the bottom.

4. FAQ

1.Certificates:

RoHs,UL,SGS,MSDS,DIN53438

2.Payment terms:

50% deposit upon getting the order,balance against the B/L copy.

3.Delivery date:

About 7 working days(≤500pcs), special order is negotiable to be quicker.

4.Sample Terms:

We can supply 1-2 small samples for tree but express cost is covered by your side.

5.Minimum Order Quantity:

No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.

6.Price Terms:

EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.

7.Lead time:

3 Days for a 40ft container, weeks for two 40ft container.

5. matters needing attention

In the process of making, it is also necessary to pay attention to filter paper. Filter paper is generally divided into domestic paper and imported paper, and the grade is divided into three grades: high, medium and low! The filter paper can be selected and used according to the customer's requirements here! Paper folding needs to be calculated according to the specifications of the filter element, and the size of each product is different, so I will not describe it in detail here! Three: The two ends of the air filter element are generally divided into PU and iron cover. The iron cover needs to be pasted with adhesive tape. The process is relatively simple! The PU process is relatively more complicated and can be divided into artificial PU and mechanical PU! To ensure the cleanliness and hardness of the two ends of the product, wear rubber gloves in a dust-free workshop during the production process!
