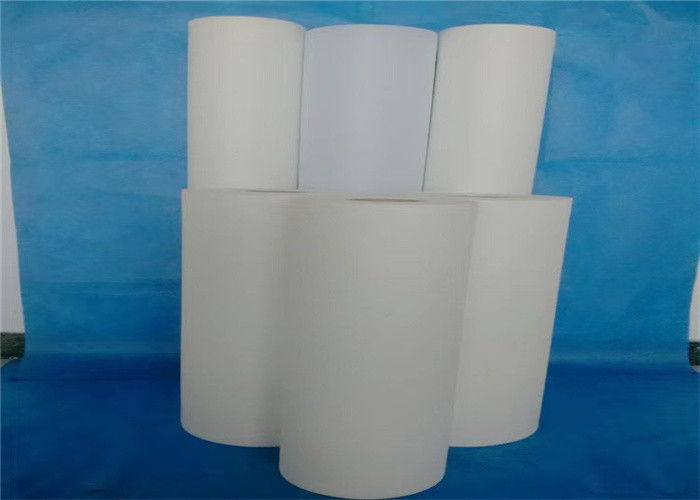

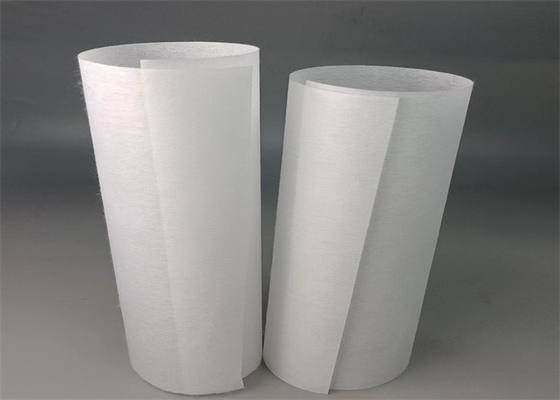

Ptfe 0.75mm Hepa Paper High Temperature Resistant

Ptfe 0.75mm Hepa Paper High Temperature Resistant

  • Ptfe 0.75mm Hepa Paper High Temperature Resistant
  • Ptfe 0.75mm Hepa Paper High Temperature Resistant
Ptfe 0.75mm Hepa Paper High Temperature Resistant
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-55-28
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Kilogram/Kilograms(Min. Order)
Price: Negotiable
Packaging Details: Vacuum Cleaner Cooking Oil The Truck Air Filter Paper 1,Inner Packing:Plastic Film 2,Middle Packing:Craft Paper 3,Outer Packing:Plastic Film 4,top and bottom Packing:Paper pallet 5,20ft can load 5.5-6 tons 6,40HQ can load 13.5-16 tons (110 g Hepa Roll Filt
Delivery Time: 1 - 5000 Est. Time15(days)
Payment Terms: L/C, T/T
Supply Ability: 30 Ton/Tons per Quarter
Contact Now
Detailed Product Description
Product Name: HEPA Filter Paper Thickness: 0.75
Width: 0.57M-0.87M Material: Non-woven Fabric
Marketing Type: New Product 2020 Frame Material: Aluminum,Wooden, Stainless Steel
Core Components: Filter Media, Nanofiber, Wood Pulp Paper Performance: High Temperature And Corrosion Resistance
Applicable Industries: Painting Factory,spray Workshop, Automotive Factory Scope Of Application: Air Conditioners, Vacuum Cleaners, Filters, Air Purifiers
High Light:

ptfe hepa paper


0.75mm hepa paper


high temperature resistant hepa filter paper

PTFE High Temperature Resistant High Efficiency Air Filter Filter Paper HEPA Filter Paper


1.Product introduction


High-efficiency filter paper is made of glass fiber as the main raw material and is made by wet molding process. It has the characteristics of uniform fiber distribution, large dust holding capacity, low resistance and high strength. It is an ideal air filter material.

As an industrial paper packaging product, filter paper is a cost-effective, easy to actually operate, etc., showing convenient and fast in industrial practical operations. The actual modifications of the corresponding appearance can be performed according to the actual needs of the customer, and can be opened, cut. Convenient and practical, it can be integrated into different areas, flexible changes.


2. Parameter table


No minal size Actual size Thickness Protective net Rated air volume surface air speed Rated initial resistance
(inch) (mm) (mm)   (m3h) (mls) (Pa)
WxHxD W×H×D         H13 H14 u15 u16
2×2 570×570 50 Double-sided protective net 367 0.35 108 115 135 148
2×4 1170x570 50 Double-sided protective net 775 0.35 108 115 135 148
2×1 610×305 50 Double-sided protective net 200 0.35 108 115 135 148
  610×610 50 Double-sided protective net 423 0.35 108 115 135 148
2.5×2 762x610 50 Double-sided protective net 535 0.35 108 115 135 148
3x2 915×610 50 Double-sided protective net 646 0.35 1o8 115 135 148
4×3 1170×870 50 Double-sided protective net 1206 0.35 108 115 135 148
4x4 1170×1170(with 50 Double-sided protective net 1637 0.35 108 115 135 148
  570×570 70 Double-sided protective net 472 0.45 100 110 125 140
4×2 1170×570 70 Double-sided protective net 1000 0.45 100 110 125 140
2×1 610×305 70 Double-sided protective net 258 0.45 100 110 125 140
2×2 610×610 70 Double-sided protective net 545 0.45 100 110 125 140


3. Application


1. PP sub-high efficiency filter paper has water resistance and can withstand temperature of 120℃. It is widely used in junior high school high efficiency filters, purification workbenches, sterile operating rooms, special occasions with high temperature, large air volume, and HEPA filter elements.

2. Most of the filter paper is composed of cotton fiber, which is made by different methods according to different purposes. Because it is made of fiber, there are countless small holes on its surface for liquid particles to pass through, while large solid particles cannot pass through. This property allows the separation of mixed liquid and solid substances.

3. Most filter papers are made of cotton fibers and are made in different ways according to different uses. Because its material is made of fiber, there are countless small holes on its surface for liquid particles to pass through, but larger solid particles cannot pass through. This property allows the separation of liquid and solid materials mixed together.


4.Product advantages


1. With large tensile strength and small coefficient of variation, advanced mesh forming technology and forming reinforcement are adopted to enhance and stabilize the tensile strength and maintain the consistency between the initial strength and the strength.

2. The filter material is not corroded by the cutting fluid and does not change the chemical properties of the cutting fluid. It has the characteristics of acid and alkali resistance and can be used normally in the range of - 40 ℃ - 120 ℃.

3. The selected filter material can withstand the mechanical force and temperature influence of the filter equipment. The wet fracture strength of the filter material used for cutting fluid will not be reduced.


5. company introduction


Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.

The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.


6. FAQ


1.Q:Can you provide free samples?
A:Sorry, Free samples are not available. But after you place the order, samples cost would be return. Which is "FREE" in some way.

2. Q: Can you give me a discount price?
A: It is depending on the volume. The larger the volume is, the more discount you can enjoy.


3.Q:How do you guarantee your quality ?
A: Our workers and technical employees are with many years experiences to ensure the products are good. After production finished,check will be made by quality inspector.


4. Q:How can you guarantee the quality of mass production is same with the sample sent to me before?
A: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.


5. Q: How can you deal with quality issues that customers feedback after receiving the goods?
A: We will follow below steps to solve the quality issues the may occur.
1) Customers take photos of unqualified goods and then our sales staff will send them to Quality Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
