Hebei Changfeng Filter Material Co., Ltd.


One-stop solution for Filter production

Home ProductsAir Filters Material

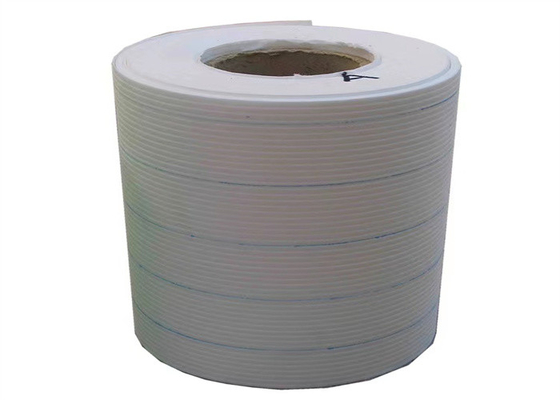

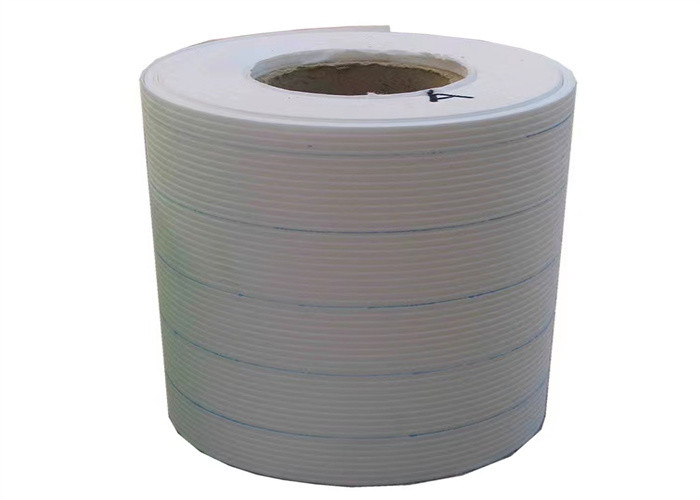

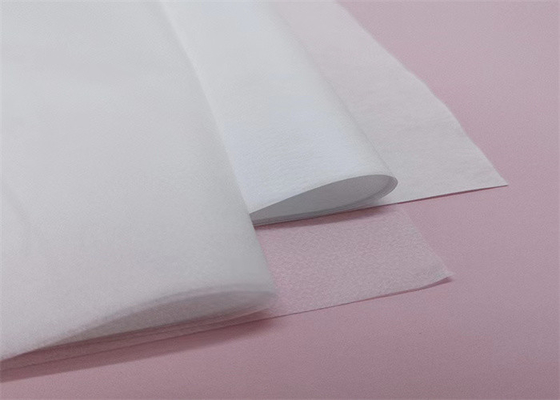

25%-99.99% Efficiency Hepa Filter Paper / Polyester Hepa Cloth

25%-99.99% Efficiency Hepa Filter Paper / Polyester Hepa Cloth

  • 25%-99.99% Efficiency Hepa Filter Paper / Polyester Hepa Cloth
  • 25%-99.99% Efficiency Hepa Filter Paper / Polyester Hepa Cloth
25%-99.99% Efficiency Hepa Filter Paper / Polyester Hepa Cloth
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9009-55-21
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Kilogram/Kilograms(Min. Order)
Price: Negotiable
Packaging Details: Vacuum Cleaner Cooking Oil The Truck Air Filter Paper 1,Inner Packing:Plastic Film 2,Middle Packing:Craft Paper 3,Outer Packing:Plastic Film 4,top and bottom Packing:Paper pallet 5,20ft can load 5.5-6 tons 6,40HQ can load 13.5-16 tons (110 g Hepa Roll Filt
Delivery Time: 1 - 5000 Est. Time15(days)
Payment Terms: L/C, T/T
Supply Ability: 30 Ton/Tons per Quarter
Contact Now
Detailed Product Description
Product Name: HEPA Filter Paper Condition: New
Apply To: Filters Weight: 3~15kg
Brand Name: Changfeng Efficiency: 25%-99.99%
Application: Air Filtration System Payment Trems: T/T,L/C.,western Union
Material: PP Meltblown + Polyester Warranty: Unavailable, Non -quality Problem
High Light:

99.99% efficiency hepa filter paper


polyester hepa filter paper


25% efficiency hepa paper

Filter Paper For High Efficiency And Low Resistance Air Filter HEPA Filter Paper


1.Product introduction


Filter paper is a kind of scientific appliance, which can effectively filter impurities. Filter paper has been widely used in various fields. According to the different fiber types that make up the filter paper, the performance and use of the filter paper are also different. There are ordinary filter paper for general occasions, glass fiber filter paper for high temperature, polypropylene filter paper for ultra purification, etc.


2. Parameter table


No minal size Actual size Thickness Protective net Rated air volume surface air speed Rated initial resistance
(inch) (mm) (mm)   (m3h) (mls) (Pa)
WxHxD W×H×D         H13 H14 u15 u16
2×2 570×570 50 Double-sided protective net 367 0.35 108 115 135 148
2×4 1170x570 50 Double-sided protective net 775 0.35 1o8 115 135 148
2×1 610×305 5o Double-sided protective net 20o 0.35 108 115 135 148
  610×610 50 Double-sided protective net 423 0.35 1o8 115 135 148
2.5×2 762x610 5o Double-sided protective net 535 0.35 108 115 135 148
3x2 915×610 50 Double-sided protective net 646 0.35 1o8 115 135 148
4×3 1170×870 50 Double-sided protective net 1206 0.35 108 115 135 148
4x4 1170×1170(with 5o Double-sided protective net 1637 0.35 108 115 135 148
  570×570 70 Double-sided protective net 472 0.45 1oo 11o 125 140
4×2 1170×570 7o Double-sided protective net 1oo0 0.45 1oo 11o 125 14o
2×1 610×305 7o Double-sided protective net 258 0.45 1oo 11o 125 140
2×2 610×610 7o Double-sided protective net 545 0.45 1oo 11o 125 14o


3. Product nature


Hardness: the filter paper will become wet during filtration. For some long-time filtration test steps, the stronger filter paper after wet water should be considered.

Filtration efficiency: the density and size of water seepage holes on the filter paper affect its filtration efficiency. The high efficiency filter paper has fast filtering speed and high resolution.

Capacity: the solid particles accumulated during filtration may block the small holes on the filter paper. Therefore, the denser the water seepage holes are, the higher the capacity is, and the more filtration is allowed.

Applicability: some filter papers are made by special steps, for example, nitrogen free filter paper must be used to determine the nitrogen content in blood in laboratory medicine.


4. selection factor


1. The effective area is large, that is, the use area of the filter paper is large, the dust capacity is large, the resistance is small, and the service life is long. Of course, the cost will increase accordingly.

2. The finer the fiber diameter, the better the interception effect and the higher the filtration efficiency.

3. The content of binder in the filter material is high, the tensile strength of the paper is high, the filtration efficiency is high, the hair loss phenomenon is less, the background dust accumulation of the filter material is small, and the resistance is good, but the resistance increases correspondingly.


5. company introduction


Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.



25%-99.99% Efficiency Hepa Filter Paper / Polyester Hepa Cloth 025%-99.99% Efficiency Hepa Filter Paper / Polyester Hepa Cloth 125%-99.99% Efficiency Hepa Filter Paper / Polyester Hepa Cloth 225%-99.99% Efficiency Hepa Filter Paper / Polyester Hepa Cloth 3
