Hebei Changfeng Filter Material Co., Ltd.
One-stop solution for Filter production
Place of Origin: | AnPing China |
Brand Name: | Chang Feng |
Certification: | ISO9001 |
Model Number: | 9009-54-88 |
Minimum Order Quantity: | 10 / set |
---|---|
Price: | Negotiable |
Packaging Details: | covers' packaging: 1.Plastic sheets inside 2.PP Woven bag outside 3.According to your requiry |
Delivery Time: | 8-10 work days |
Supply Ability: | 5000 Set/Sets per Week filter end caps 5000 sets/week |
Product Name: | Air Filters Material | Feature: | Easy |
---|---|---|---|
Condition: | New | Machinery Test Report: | Provided |
Technique: | Perforated | Warranty: | Unavailable |
Core Components: | Filter End Cap | Material: | Stainless Steel |
Filter Media: | Pleated Glass Fiber | Specification: | Customer Requests |
High Light: | corrosion resistant filter end cap,oem filter end cap,corrosion resistant air filters material |

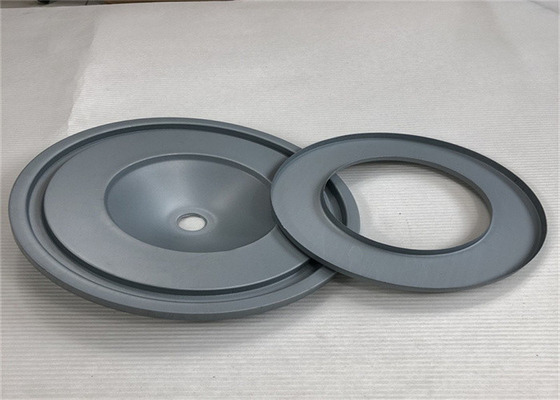

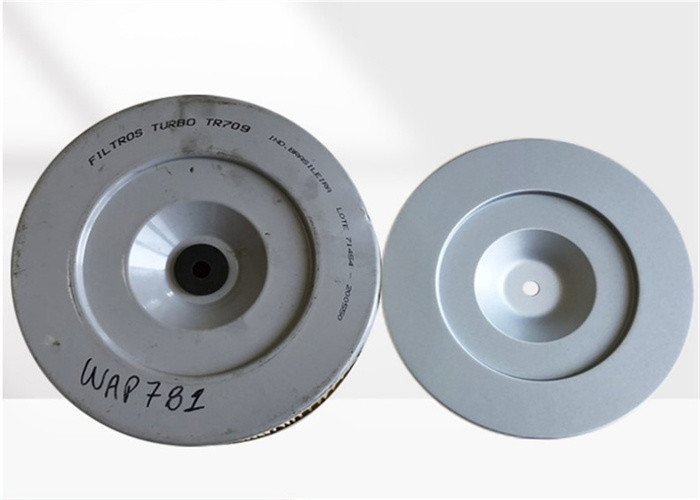

The end cap of the filter element mainly plays the role of sealing the two ends of the filter element and supporting the filter element. The filter element is pressed into various shapes according to the needs of the steel plate. The filter element is installed on the vehicle and the engine. During the mechanical operation, it will produce vibration, the end cap can effectively improve the bearing capacity of the filter material. One side of the end cap is pressed into a groove which can be used to place the end of the filter material and the adhesive. The other side is bonded with a rubber seal, the utility model plays the role of sealing the filter material and sealing the channel of the filter element.
There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.
Open Round End Cap with Tri-Bolt Holes | |||
Inches | Millimeters | ||
Outer diameter | 12.75 | 323.85 | |
Inner diameter | 8.5 | 215.9 | |
Inner height | 0.54 | 13.716 | |
Outer height | 0.5 | 12.7 | |
Inner rim diameter | 6.75 | 171.45 | |
Open Round End Cap with Outer Lip | |||
Inches | Millimeters | ||
Outer diameter | 12.75 | 323.85 | |
Inner diameter | 8.5 | 215.9 | |
Inner diameter | 0.625 | 15.875 | |
Outer height | 0.368 | 9.3472 | |
Lip | 0.375 | 9.525 | |
Open Round End Cap | |||
Inches | Millimeters | ||
Outer diameter | 12.75 | 323.85 | |
Inner diameter | 8.5 | 215.9 | |
Inner height | 0.5 | 12.7 | |
Outer Height | 0.5 | 12.7 | |
Closed Round End Cap | |||
Inches | Millimeters | ||
Outer diameter | 12.75 | 323.85 | |
Inner diameter | 8.375 | 212.725 | |
Inner height | 0.5 | 12.7 | |
outer height | 0.5 | 12.7 | |
Closed Round End Cap with Bolt Hole | |||
Inches | Millimeters | ||
Outer diameter | 12.75 | 323.85 | |
Inner diameter | 8.375 | 212.725 | |
Inner height | 0.5 | 12.7 | |
Outer height | 0.5 | 12.7 | |
Bolt Hole | 0.625 | 15.875 | |
Open Round End Cap with Flange | |||
Inches | Millimeters | ||
Outer diameter | 5.75 | 146.05 | |
Inner diameter | 2.5 | 63.5 | |
Inner height | 0.5 | 12.7 | |
Outer height | 0.278 | 7.0612 | |
Closed Round End Cap | |||
Inches | Millimeters | ||
Outer diameter | 5.25 | 133.35 | |
Inner diameter | 2.5 | 63.5 | |
Inner height | 0.875 | 22.225 | |
Outer height | 0.172 | 4.3688 |
The purpose of the air filter cover is to prevent dust from entering the engine directly. The role of the air filter: the engine must inhale a lot of air during operation. If the air is not filtered, the suspended dust in the air will be sucked into the cylinder. , will accelerate the wear of the piston group and cylinder. Larger particles entering between the piston and cylinder can cause severe "cylinder pull", especially in dry and sandy working environments; the air filter is installed in front of the carburetor or intake pipe. In order to filter out dust and sand particles in the air, it is possible to ensure that sufficient, clean air enters the cylinder.The filter end caps are stamped into various shapes as per needed from the steel sheet. Filter end cap is mainly used to seal both ends of the filter material and support the filter material.The filter element is mounted on a vehicle,engine or mechanical device.During the operation of the machine,vibration is generated,the air filter is subjected to a large stress,and the end cover can effectively improve the bearing capacity of the filter material.
1.Convenient Payment Methoods
Hebei Anping Changfeng filter material Co., Ltd. is located in Anping, the hometown of wire mesh in China. It is a comprehensive factory integrating production, sales, import and export. Products are exported to Europe, Asia, Africa and other countries and regions, selling well.
The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.
