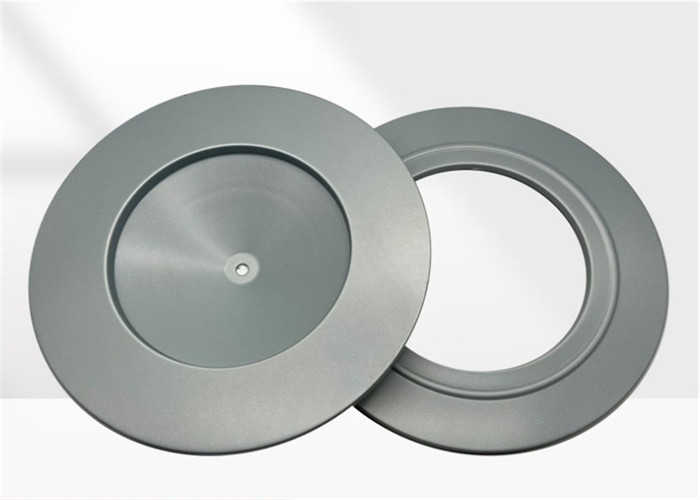

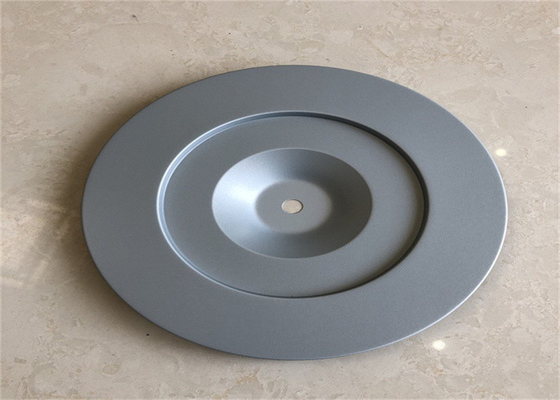

Mechanical Industry Dust Air Filters Material Galvanized Steel End Cap

Product Details:

Place of Origin:	AnPing China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-54-88

Payment & Shipping Terms:

Minimum Order Quantity:	10 / set
Price:	Negotiable
Packaging Details:	covers' packaging: 1.Plastic sheets inside 2.PP Woven bag outside 3.According to your requiry
Delivery Time:	8-10 work days
Supply Ability:	5000 Set/Sets per Week filter end caps 5000 sets/week

Contact Now

Detailed Product Description

Product Name:	Air Filters Material	Condition:	New
Color:	Silver	Type:	Round
Sample:	Available	Machinery Test Report:	Provided
Warranty:	Unavailable	Core Components:	Filter End Cap
Material:	Galvanized Steel	Filter Media:	Pleated Glass Fiber
High Light:	mechanical industry air filters material , galvanized steel air filters material , odm filter end cap

Mechanical Industry Dust Filter Galvanized Steel Filter End Cap Air Filters Material

1. Product Description

The end cover of the filter element mainly plays the role of sealing the two ends of the filter material and supporting the filter material.

It is mainly punched into various shapes from steel plates according to the needs. The filter element is installed on the vehicle and the engine. Under great stress, the end cap can effectively improve the bearing capacity of the filter material. The end cap is generally punched into a groove where the end face of the filter material and the adhesive can be placed, and the other side is bonded with a rubber seal to seal the filter.

2. Specifications

There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.

Open Round End Cap with Tri-Bolt Holes
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.54	13.716
Outer height	0.5	12.7
Inner rim diameter	6.75	171.45
Open Round End Cap with Outer Lip
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner diameter	0.625	15.875
Outer height	0.368	9.3472
Lip	0.375	9.525
Open Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.5	12.7
Outer Height	0.5	12.7
Closed Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
outer height	0.5	12.7
Closed Round End Cap with Bolt Hole
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
Outer height	0.5	12.7
Bolt Hole	0.625	15.875
Open Round End Cap with Flange
	Inches	Millimeters
Outer diameter	5.75	146.05
Inner diameter	2.5	63.5
Inner height	0.5	12.7
Outer height	0.278	7.0612
Closed Round End Cap
	Inches	Millimeters
Outer diameter	5.25	133.35
Inner diameter	2.5	63.5
Inner height	0.875	22.225
Outer height	0.172	4.3688

3. Applications

1. The purpose of the air filter cover is to prevent dust from entering the engine directly. The role of the air filter: the engine must inhale a lot of air during operation. If the air is not filtered, the suspended dust in the air will be sucked into the cylinder. , will accelerate the wear of the piston group and cylinder. Larger particles entering between the piston and cylinder can cause severe "cylinder pull", especially in dry and sandy working environments; the air filter is installed in front of the carburetor or intake pipe. In order to filter out dust and sand particles in the air, it is possible to ensure that sufficient, clean air enters the cylinder.

2.The filter end caps are stamped into various shapes as per needed from the steel sheet. Filter end cap is mainly used to seal both ends of the filter material and support the filter material.

3.The filter element is mounted on a vehicle,engine or mechanical device.During the operation of the machine,vibration is generated,the air filter is subjected to a large stress,and the end cover can effectively improve the bearing capacity of the filter material.

4. Our sevice

1.Convenient Payment Methoods

2.Personalized Service

3.Any inquiries will be replied within 12 hours.

4.OEM/ODM Available

5.Samples is available for your evaluation&formulation development.

6.Fastest delivery: Sample order in stock and 8-10 days for mass production.

5.Company introduction

Hebei Anping Changfeng filter material Co., Ltd. is located in Anping, the hometown of wire mesh in China. It is a comprehensive factory integrating production, sales, import and export. Products are exported to Europe, Asia, Africa and other countries and regions, selling well. As a professional factory with more than 20 years of experience, we have a strict QC team and production team to ensure good control from the beginning of raw material supply, and pay attention to production details to provide high quality at the most reasonable price.
