Air Pu OEM End Cap Filter Injection Plastic Mould For Automobile

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	CF-23

Payment & Shipping Terms:

Minimum Order Quantity:	50 / set
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	8-10 work days
Supply Ability:	1000 Set/Sets per Day

Contact Now

Detailed Product Description

Product Name:	Air Filters Material	Material:	Pp
Size:	OEM	Model Number:	OEM
Product Material:	Plastic	Color:	White
Application:	Air Filter Making	Usage:	Making Air Filter
Shape:	Round And Square	Keyword:	Air Filter Making Machine
High Light:	pu end cap filter , oem end cap filter , air filters material oem

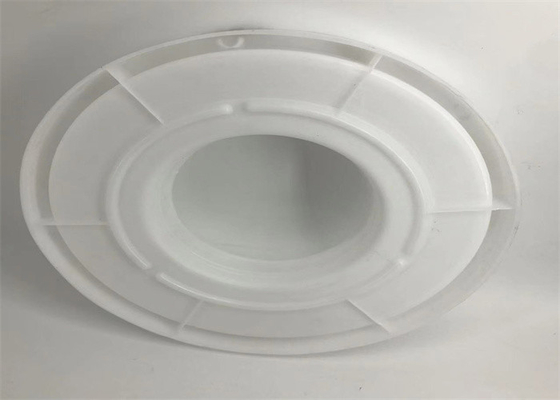

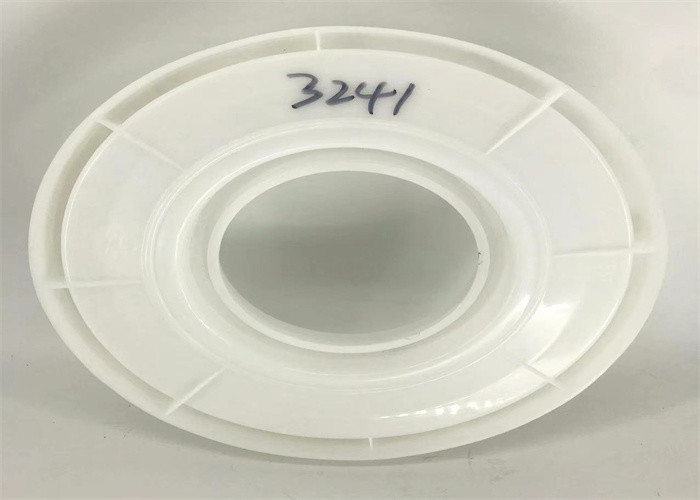

Air Filter Pu End Cap Injection Plastic Mould For Automobile Air Filters Material

1. Product description

pu air filter mould is made of pp material,When you pour the PU material in to the mould and Aacelerated chemical reactiontion can forming the end of air filter quickly.Also not need the mold release agent,when the filter turn off the mould,the surface is sine. PU air filter mould.

2. Parameter table

Model	OEM		Application	Size(HODID)
2833	61-250161-2502		SAIC Motor D6114 950	327×φ279×φ149φ150×110
2841	1109070-50A		FAW	412×φ281×φ198 φ179×125
3047	81.08304.0094 81.08304.0086		SHACMAN D2866 33373	472×φ305×φ168 464×φ169×φ129
3245	A-9903A-9904		Chunlan Truck	450×φ318×φ207φ208×155
2332	C23632/1		JAC	320×φ227×φ116φ115×100
2845D	1-14215203-0		CXZ/CYZ Stirrer	453×φ280×φ176
1534			2000 NAVECO	Φ150×78
1330			HCFHYUNDAI 310 Excavator	304×φ128×φ82φ83
1027	P82-1517P82-2858		Forklift	265×φ106×φ61φ62
1826			KAMA	260×φ179×φ103
1432			CASCADE Forklift	320×φ139×φ82
2041	600-185-3110 611-185-3110		PC200-7 PC210-7	408×φ205×φ106 403×φ107
KU8464A/B	610273 610274	CASCADE Loader 980F		335×φ290×φ185 330×φ185
KU8145A/B	61-2503 61-2504	Excavator 235,235B,235C 769,769B,768C Loader		410×φ280×φ145 385×φ145
3055		Air Compressor		Φ296×200
1227		Air Compressor		Φ125×74
3662	A:106-3969 B:106-3973	CASCADE Generator		620×Φ363×Φ228,620×Φ231×Φ176
3047B		Volvo Generator		Φ305×Φ185
2242		916 Excavator		Φ225×182,Φ183×122
2851	A:DAF1295090 B:KALMAR923110.0578	DAF Truck 2CC Forklift		510×Φ280×Φ145, Φ145×495×Φ145

3. Production process

The pu air filter mould is formed by Injection molding machine ,and using PP and PTFE plastic material .
The pu air filter mould can use in 25-60 degree centigrade range.

4. The PU air filter mould peculiarity

The material PP and PTFE with low surface energy,self-cleaning,Not easy to bond,so the pu air filter mould no need the mold release. the surface of the pu air filter mould is very smooth, when turn off the mould the surface of the pu with shine.

5. Service

We are manufacturerWith 15 years of production experience

High efficiency.

Long working life.

Good anti-humidity performance

Special size available as you request

On-time delivery

Sample offered as request
