Piston Rod Seals Air Filters Material Polyurethane Hydraulic U Seals

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-63-5

Payment & Shipping Terms:

Minimum Order Quantity:	5 Rolls
Price:	Negotiable
Packaging Details:	Insulated plastic outer carton
Delivery Time:	20 days
Supply Ability:	25 Roll/Rolls per Week

Contact Now

Detailed Product Description

Product Name:	Air Filters Material	Style:	O Ring
Model Number:	Rubber Ring	Quality:	High Quality
Item:	Rubber Part	Color:	Customer Requests
Keyword:	Custom High-precision Silicone Seals	Application:	Sealing Industry Dust Removal Equipment
Texture Of Material:	It Is Made Of Neoprene, Nitrile Rubber And Other Materials	Applicable Industries:	Filter Cover， Manufacturing Plant, Machinery Repair Shops
High Light:	air filters material piston rod seals , polyurethane hydraulic u seals , piston rod hydraulic u seals

Piston Rod Seals PU Polyurethane Hydraulic U-Seals Air Filters Material

1. Prodcut introduction

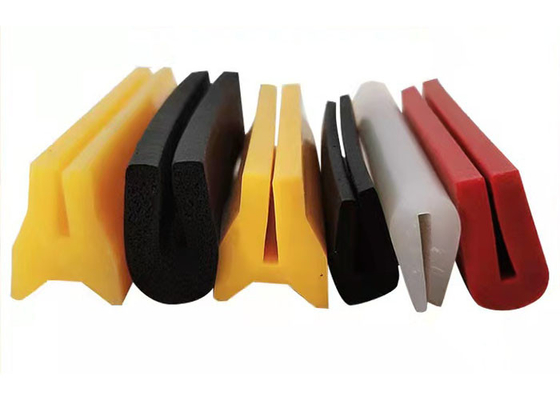

The sealing strip is a kind of elastic band-shaped or rod-shaped material, which is made of rubber and is a necessary product for door and window components. . The sealing strip can play the role of cushioning and reduce too much noise and damage caused by vibration. Not only that, the sealant strip can also prevent some rainwater, sand and dust from invading the house, and can completely seal the doors and windows. A good sealant strip and a good installation process can even isolate the air. The sealing strip, as the name implies, is used for sealing, but its function can not only achieve a good sealing effect, but also play the role of sound insulation, heat insulation and shock absorption.

2. Data Sheet

Rubber material	Letter abbreviation	hardness	temperature	Attributes
Nitrile rubber	NBR	standard 70° customizable 40°~90°	Limit temperature -40°~120℃	Oil resistant wear resistant
Viton	FKM/VITON	standard 75° customizable 50°~90°	Limit temperature -40°~240℃	High temperature resistant Oil resistant Chemical resistance
Silica gel	SIL/VMQ	standard 70°OR60° customizable 40°~90°	Limit temperature -60°~250℃	High temperature resistant Low temperature resistant Avirulent insipidity Food grade
EPDM	EPDM	standard 70° customizable 40°~90°	Limit temperature -40°~150℃	Strong acid and alkali resistance Resistant to 150° steam anti-aging Resistance to ozone
Hydrogenated nitrile	HNBR	standard 70° customizable 40°~90°	Limit temperature -40°~150℃	Wear oil resistantResistance to cold media Polar-resistant solvent The deformation resistance
Chlorosilicone rubber	CR	standard 70° customizable 40°~90°	Limit temperature -40°~120℃	Ozone resistant Weather resistance Chemical resistance Anti-aging
Fluorosilicone rubber	FVMQ	standard 70° customizable 45°~70°	Limit temperature -60°~177℃	Oil resistance, acid and alkali resistance Heat resistance, cold resistance, high voltage resistance, atmospheric aging resistance, hydrocarbon solvent resistance
Perfluoroether rubber	FFKM	standard 75° customizable 50°~90°	conventional 250℃ Special formula 320°~330℃	Very excellent performance, can almost be used in all kinds of bad conditions, PTFE as excellent high temperature resistance, chemical resistance, corrosion resistance, can resist all kinds of solvents, while having the elasticity of rubber
PTFE	PTFE/F4	Generally 55°~65°	Generally -80°~260℃ Reachable -190°~260℃	Corrosion resistance, wear resistance, high temperature resistance, low temperature resistance, aging resistance, high pressure resistance, organic solvents (almost insoluble in all organic solvents)

3. Product advantages

1. The sealing ring shall have good sealing performance within the working pressure and certain temperature range, and can automatically improve the sealing performance with the increase of pressure.

2. The friction between the sealing ring device and the moving parts shall be small and the friction coefficient shall be stable.

3. The sealing ring has strong corrosion resistance, not easy to aging, long service life and good wear resistance. It can be automatically compensated to a certain extent after wear.

4. Simple structure, convenient use and maintenance, so that the sealing ring has a longer service life.

4. Why choose us ?

1. Quick response in 12 hours

2.Reliable imported raw material

3.Strict analysis and testings on raw material before production

4. Assistance from first idea through prototype

5.First prototype inspection after mould and before volume production

6.Quick delivery of prototypes or production needs

7.Design assistance and parts consolidation

8.In-house mold design (Insert, polyurethane, urethane molding)

9.In-house formulations to provide the best possible urethane for your application

10. Low-cost tooling

11.Over 20 years of in-house experience

12.Reliable after-sales service and support
