Odm Rubber Sealing Ring Air Compressor Valve Filter Element Auto Parts Fluorine

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-63-4

Payment & Shipping Terms:

Minimum Order Quantity:	5 Rolls
Price:	Negotiable
Packaging Details:	Insulated plastic outer carton
Delivery Time:	20 days
Supply Ability:	25 Roll/Rolls per Week

Contact Now

Detailed Product Description

Product Name:	Air Filters Material	Style:	O Ring
Quality:	High Quality	Item:	Rubber Part
Hardness:	20-90 Shore A	Color:	Dark /green/blue/black
Product Use:	Dust Removal Seal And Guide Ring	Application:	Sealing Industry Dust Removal Equipment
Texture Of Material:	It Is Made Of Neoprene, Nitrile Rubber And Other Materials	Applicable Industries:	Filter Cover， Manufacturing Plant, Machinery Repair Shops
High Light:	odm rubber sealing ring , fluorine rubber sealing ring , fluorine rubber ring air filters material

Air Compressor Valve Filter Element Rubber Ring Auto Parts Fluorine Rubber Sealing Ring Air Filters Material

1. Prodcut introduction

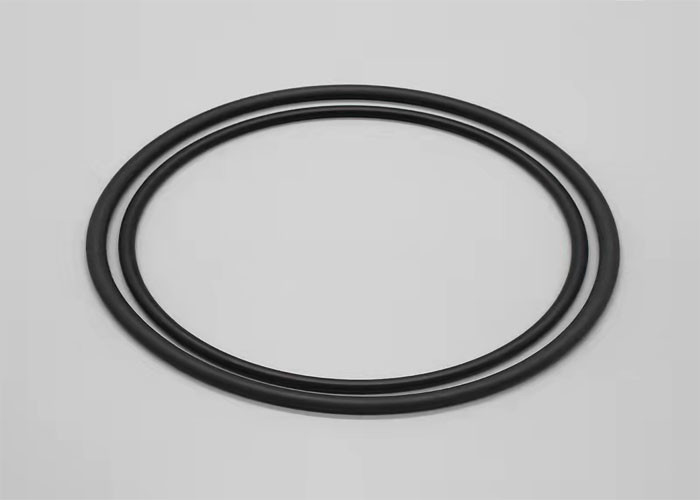

O-ring is a kind of rubber sealing ring with a circular cross-section. Because its cross-section is O-shaped, it is called O-ring rubber sealing ring, also called O-ring. It began to appear in the mid-19th century, when it was used as a sealing element for steam engine cylinders. O-rings are the most common mechanical design for seals because of their low cost, simplicity of manufacture, reliable function, and simple installation requirements. O-rings are subjected to pressures of tens of megapascals (kilo pounds). O-rings can be used in static applications as well as in dynamic applications where there is relative movement between components, such as shafts of rotary pumps and pistons of hydraulic cylinders.

2. Data Sheet

Rubber material	Letter abbreviation	hardness	temperature	Attributes
Nitrile rubber	NBR	standard 70° customizable 40°~90°	Limit temperature -40°~120℃	Oil resistant wear resistant
Viton	FKM/VITON	standard 75° customizable 50°~90°	Limit temperature -40°~240℃	High temperature resistant Oil resistant Chemical resistance
Silica gel	SIL/VMQ	standard 70°OR60° customizable 40°~90°	Limit temperature -60°~250℃	High temperature resistant Low temperature resistant Avirulent insipidity Food grade
EPDM	EPDM	standard 70° customizable 40°~90°	Limit temperature -40°~150℃	Strong acid and alkali resistance Resistant to 150° steam anti-aging Resistance to ozone
Hydrogenated nitrile	HNBR	standard 70° customizable 40°~90°	Limit temperature -40°~150℃	Wear oil resistantResistance to cold media Polar-resistant solvent The deformation resistance
Chlorosilicone rubber	CR	standard 70° customizable 40°~90°	Limit temperature -40°~120℃	Ozone resistant Weather resistance Chemical resistance Anti-aging
Fluorosilicone rubber	FVMQ	standard 70° customizable 45°~70°	Limit temperature -60°~177℃	Oil resistance, acid and alkali resistance Heat resistance, cold resistance, high voltage resistance, atmospheric aging resistance, hydrocarbon solvent resistance
Perfluoroether rubber	FFKM	standard 75° customizable 50°~90°	conventional 250℃ Special formula 320°~330℃	Very excellent performance, can almost be used in all kinds of bad conditions, PTFE as excellent high temperature resistance, chemical resistance, corrosion resistance, can resist all kinds of solvents, while having the elasticity of rubber
PTFE	PTFE/F4	Generally 55°~65°	Generally -80°~260℃ Reachable -190°~260℃	Corrosion resistance, wear resistance, high temperature resistance, low temperature resistance, aging resistance, high pressure resistance, organic solvents (almost insoluble in all organic solvents)

3. Product advantages

1. The sealing ring should have good sealing performance within the working pressure and a certain temperature range, and can automatically improve the sealing performance with the increase of pressure.
2. The friction between the sealing ring device and the moving parts should be small, and the friction coefficient should be stable.
3. The sealing ring has strong corrosion resistance, not easy to age, long working life, good wear resistance, and can automatically compensate to a certain extent after wear.
4. The structure is simple, the use and maintenance are convenient, and the sealing ring has a longer life.

4. Why choose us ?

1. Quick response in 12 hours

2.Reliable imported raw material

3.Strict analysis and testings on raw material before production

4. Assistance from first idea through prototype

5.First prototype inspection after mould and before volume production

6.Quick delivery of prototypes or production needs

7.Design assistance and parts consolidation

8.In-house mold design (Insert, polyurethane, urethane molding)

9.In-house formulations to provide the best possible urethane for your application

10. Low-cost tooling

11.Over 20 years of in-house experience

12.Reliable after-sales service and support

5. Installation method

Put the sponge cover on the split ends, and evenly apply about 0.5mm of grease on the inner circumference. After removing the sponge sheath, apply a special adhesive to the section mold under the split. The butt split surface is pressed tightly and held for 10 to 20 seconds.

Odm Rubber Sealing Ring Air Compressor Valve Filter Element Auto Parts Fluorine 0
