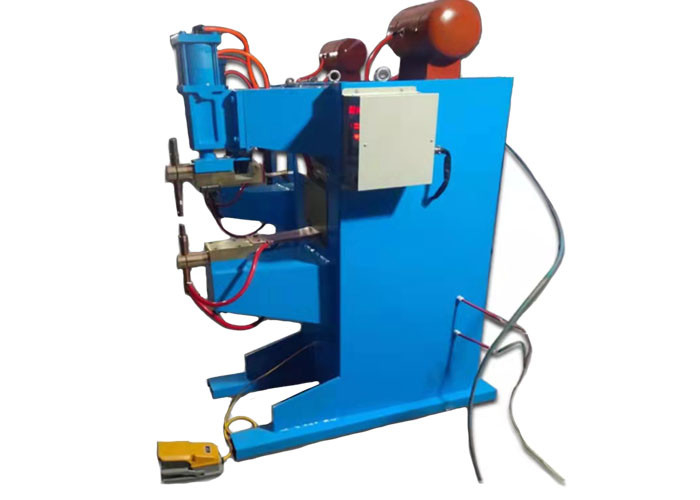

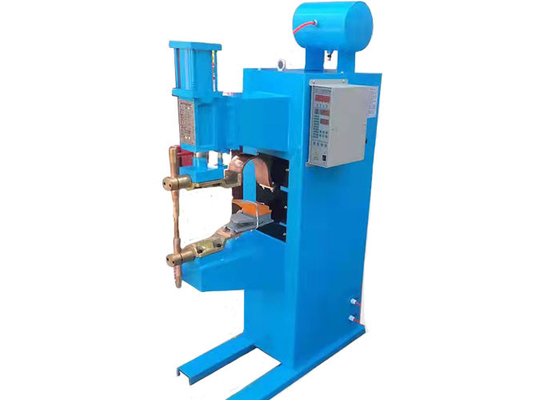

Vertical All Copper 380V Metal Spot Welder Multi Function

Vertical All Copper 380V Metal Spot Welder Multi Function

  • Vertical All Copper 380V Metal Spot Welder Multi Function
  • Vertical All Copper 380V Metal Spot Welder Multi Function
Vertical All Copper 380V Metal Spot Welder Multi Function
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9003-24
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: standard wooden case packing
Delivery Time: Est. Time(days) 15 To be negotiated
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: 0il Filter Making Machine Color: Blue
Power: 100 Voltage: 380V
Way To Control: CNC Weight: 800kg
Dimension(L*W*H): 1430*1550*1400 Mm Type: All Copper Spot Welding Machine
Keyword: Metal Welding Spot Welding Machine After-sales Service Provided: Free Spare Parts, Engineers Available To Service Machinery Overseas
High Light:

380v metal spot welder


multifunction metal spot welder


multifunction copper spot welder

Vertical All-Copper Multi-Function Metal Spot Welder Oil Filter Making Machine


1. Product introduction


According to the purpose, the spot welding machine is divided into universal type (universal type) and special type; according to the number of welding points welded at the same time, there are single-point type, double-point type and multi-point type; Bilateral; according to the transmission mode of the pressurizing mechanism, there are pedal type, motor-cam type, pneumatic type, hydraulic type, compound type (pneumatic-hydraulic type); according to the characteristics of operation, there are non-automation and automation; according to The installation method is divided into fixed type, mobile type or portable type (suspension type); according to the moving direction of the movable electrode (usually the upper electrode) of the welding machine, there are vertical stroke (the electrode moves in a straight line) and arc stroke; According to the power supply mode, there are power frequency welding machine (using 50 Hz AC power supply), pulse welding machine (DC pulse welding machine, energy storage welding machine, etc.), variable frequency welding machine (such as low frequency welding machine).


2. Parameter table


Product name knife ppleating machine by munualcontrol for oil filter pleating
Advantage low cost,easy operation
Material paper
Feature oil filter media pleating
Application Pleating oil filter media
Efficiency 95%-99%
Certification CE,ISO
(L*W*H) 1430×1550×1400mm/
Basic weight 780kg
speed 20-120pleats/min
Voltage 380V
Warranty 1Year
supply ability 500 Set/Set per Year
Pleating height 8 - 55mm
Layers pleated 44201
Pleating speed 20 - 150 pleats/min
Max. pleating width 1100mm
Thickness of material 0.5 - 4mm
Speed adjustable motor 1.5KW
Power 1.5KW 380V Heater Power: 3KW Heat Temperature: 200°C
Machine weight 800kgs
Machine dimension 1430mm x 1550mm x 1400mm
Alternative width B-600,B-800,B-1500,B-2100,B3000 mm
Alternative height 15-160 mm



3. Product characteristics


The power on mode of pre heat and main heat shall be preheated before welding to ensure stable welding quality. Maintain the continuity of energy density, short welding time and reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds and output continuously).

Automatic reciprocating folding machine is suitable for folding various materials, including filter paper, non-woven fabric, non-woven felt, wave fiber material, composite material, PP / PET polyester material, metal material. The end face of the folding material is flat, and the folding height is automatically adjustable. The full-automatic reciprocating origami machine is composed of material frame, slitting part and folding fixed part. The machine can not only fold single-layer materials, but also fold multi-layer materials, with more than 7 layers. The whole machine is driven by 7 servo motors to realize full four axis control. The main advantage is that there is no need for the operator to adjust the folding height manually, and all parameters can be adjusted on the touch screen, which greatly reduces the adjustment time of the equipment required for replacing products, and makes the operation more convenient.


4. Technology


All dirt, oil stain, scale and rust must be removed from the steel weldment before welding. For hot-rolled steel, the welded joint shall be pickled, sandblasted or removed with grinding wheel. Although the unclean weldment can be spot welded, it seriously reduces the service life of the electrode and reduces the production power and quality of spot welding together.


lVertical All Copper 380V Metal Spot Welder Multi Function 0Vertical All Copper 380V Metal Spot Welder Multi Function 1

Vertical All Copper 380V Metal Spot Welder Multi Function 2

Vertical All Copper 380V Metal Spot Welder Multi Function 3
