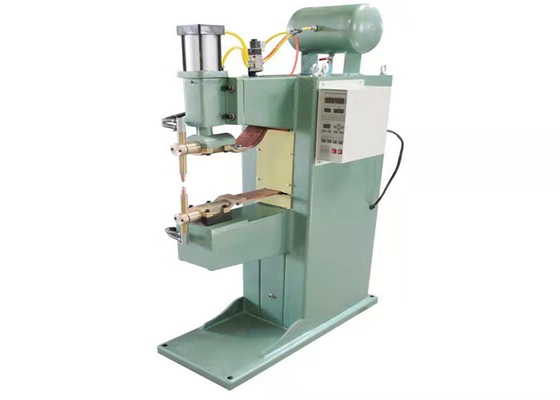

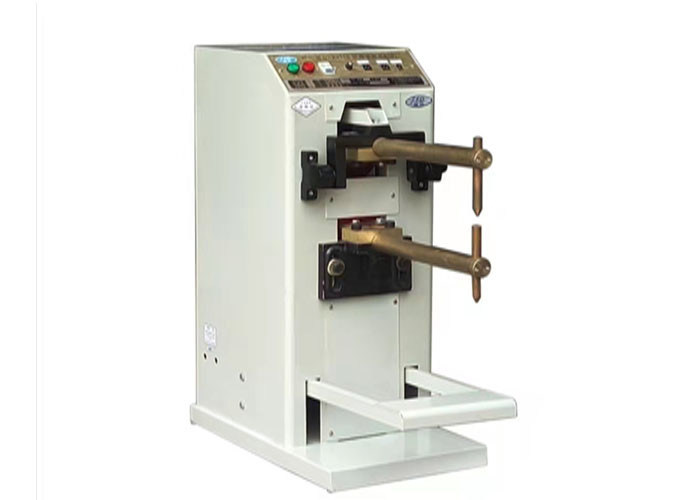

Foot Operated Small Spot Welding Machine Oil Filter Making

Foot Operated Small Spot Welding Machine Oil Filter Making

  • Foot Operated Small Spot Welding Machine Oil Filter Making
  • Foot Operated Small Spot Welding Machine Oil Filter Making
Foot Operated Small Spot Welding Machine Oil Filter Making
Product Details:
Place of Origin: An Ping China
Brand Name: Chang Feng
Certification: ISO9001
Model Number: 9003-1001
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: standard wooden case packing
Delivery Time: Est. Time(days) 15 To be negotiated
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: 0il Filter Making Machine Certification: CE
Computerized: YES Voltage: 380V
Place Of Origin: Hebei, China Color: White/Green/Blue Etc.
Keyword: Knife Pleating Machine Feature: Energy Saving And High Output Efficiency
Function: Simplified Structure And Improved Solder Joint Quality After-sales Service Provided: Free Spare Parts, Engineers Available To Service Machinery Overseas
High Light:

foot operated small spot welding machine


oil filter small spot welding machine


oil filter making spot welding machine

Power Frequency Foot-Operated Spot Welding Machine Oil Filter Making Machine


1. Product introduction


Spot welding machine is a kind of mechanical equipment, which adopts the principle of double-sided double-point overcurrent welding. When working, two electrodes pressurize the workpiece to form a certain contact resistance between the two layers of metal under the pressure of two electrodes, and when the welding current flows from one electrode to the other electrode, an instantaneous hot fusion is formed at the two contact resistance points, And the welding current instantly flows from the other electrode along the two workpieces to this electrode to form a circuit, and will not damage the internal structure of the workpiece to be welded.

This sealing machine is specialized in sealing the spin-on filter. Easy operation and high efficiency.


2. Parameter table


Output 12 pics/min.
Height of filter (house) 50 - 325mm
Thickness of metal material 0.3 - 1.2mm
Air pressure 0.6Mpa
Power of motor 4KW 380V
Machine Dimension 940 x 640 x 2150mm
Machine weight 800kg


3. Product application


Shelf industry: in our common supermarket shelves, spot welding machines are used in the production of shelves. The multi-point welding machines for shelf stiffeners manufactured by welding equipment have very good quality and welding efficiency, and are supplied to many large and medium-sized shelf manufacturers. Electronic industry: medium frequency inverter spot welder and precision spot welder are also widely used in the electronic industry.


4. Product advantages


Precision inverter DC welding power supply is adopted, which has fast response speed. Inductive load voltage and constant current control in feedback mode can significantly improve the control accuracy and realize high-quality welding. The use of precision inverter welding power supply has obvious process advantages. The welding current is pulsating DC without AC zero crossing and heating the workpiece, which improves the welding process performance, reduces the welding current required for the same welding object, reduces the heating of the electrode and has a long service life.


5. Service


1.We have stock for the parts 2.High quality, Reliable and Durable 3.Short Lead Time 4.100% test before selling 5.Best after-sale service6.We can supply the samples to customers and accept the trial order with small quantity.


6. FAQ


Q: Are you the factory or trading company?
A: We are the first manufacturer of filter/application from 1990.


Q: What is your Minimum Order Quantity of your Product?
A: Normally the MOQ is 1 set;


Q: What's your payment term?
A: Usually, TT, Paypal, Alpay, Wei Xin, western union, can be selected according to your convenience


Q: What's your after-sales service?
A: Free online Technology Services 24h hours or engineers are available to serve machines overseas but travel cost will be born by your side;


Q: How Arrive to the factory?
A:If you fly, you can go to zhengding international airport. If you take the train, you can go to hengshui railway station. We will pick you up when you arrive.
