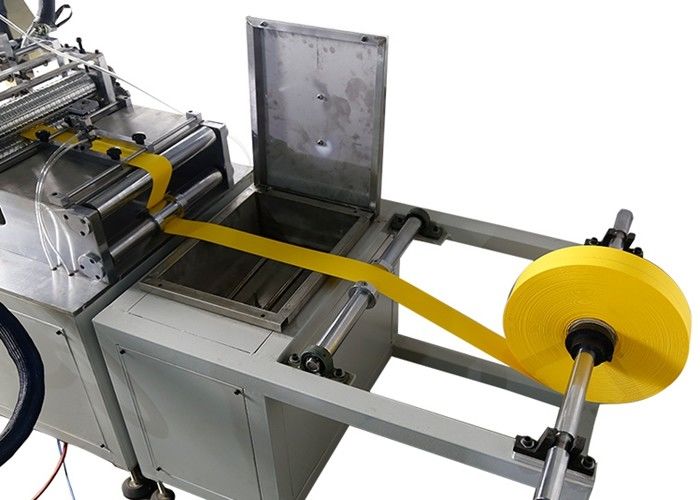

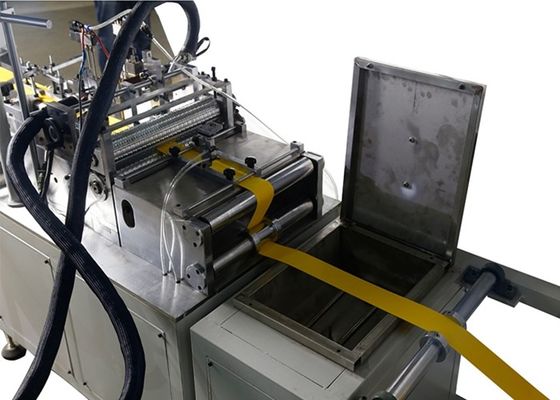

8-55 Mm 380V Efficiency 99% Filter Paper Pleated For Automotive Filter Parts Oil Filter Making Machine
1. Product introduction
The hvac oil filter making machines are robust, compact and highly functional machines. They are capable of pleating multi-layered media i.e. fabric and wire mesh, multiple layers of filter papers etc. They are versatile and can pleat varieties of materials like:Paper,Cardboard,Synthetic Materials,Copper,Aluminum,Metallic Foils
2. Parameter table
| Product name |
knife ppleating machine by munualcontrol for oil filter pleating |
| Advantage |
low cost,easy operation |
| Material |
paper |
| Feature |
oil filter media pleating |
| Application |
Pleating oil filter media |
| Efficiency |
95%-99% |
| Certification |
CE,ISO |
| (L*W*H) |
1430×1550×1400mm/ |
| Basic weight |
780kg |
| speed |
20-120pleats/min |
| Voltage |
380V |
| Warranty |
1Year |
| supply ability |
500 Set/Set per Year |
| Pleating height |
8 - 55mm |
| Layers pleated |
44201 |
| Pleating speed |
20 - 150 pleats/min |
| Max. pleating width |
1100mm |
| Thickness of material |
0.5 - 4mm |
| Speed adjustable motor |
1.5KW |
| Power |
1.5KW 380V Heater Power: 3KW Heat Temperature: 200°C |
| Machine weight |
800kgs |
| Machine dimension |
1430mm x 1550mm x 1400mm |
| Alternative width |
B-600,B-800,B-1500,B-2100,B3000 mm |
| Alternative height |
15-160 mm |
3. Product characteristics
Automatic reciprocating folding machine is suitable for folding various materials, including filter paper, non-woven fabric, non-woven felt, wave fiber material, composite material, PP / PET polyester material, metal material.
The end face of the folding material is flat, and the folding height is automatically adjustable.
The full-automatic reciprocating origami machine is composed of material frame, slitting part and folding fixed part.
The machine can not only fold single-layer materials, but also fold multi-layer materials, with more than 7 layers.
The whole machine is driven by 7 servo motors to realize full four axis control.
The main advantage is that there is no need for the operator to adjust the folding height manually, and all parameters can be adjusted on the touch screen, which greatly reduces the adjustment time of the equipment required for replacing products, and makes the operation more convenient.
4. Product use
The device is suitable for folding any filter paper material or multi-layer material.
Applicable materials include filter paper, non-woven fabric, non-woven felt, wave fiber material,
composite material, PP / PET polyester material, metal material.
The production line is suitable for automobile three-way industry,
hydraulic industry, purification industry and water treatment industry.
5. FAQ
Q: Are you the factory or trading company?
A: We are the first manufacturer of filter/application from 1990.
Q: What's your payment term?
A: Usually, TT, Paypal, Alpay, Wei Xin, western union, can be selected according to your convenience
Q: What's your after-sales service?
A: Free online Technology Services 24h hours or engineers are available to serve machines overseas but travel cost will be born by your side;
Q: How Arrive to the factory?
A:If you fly, you can go to zhengding international airport. If you take the train, you can go to hengshui railway station. We will pick you up when you arrive.
