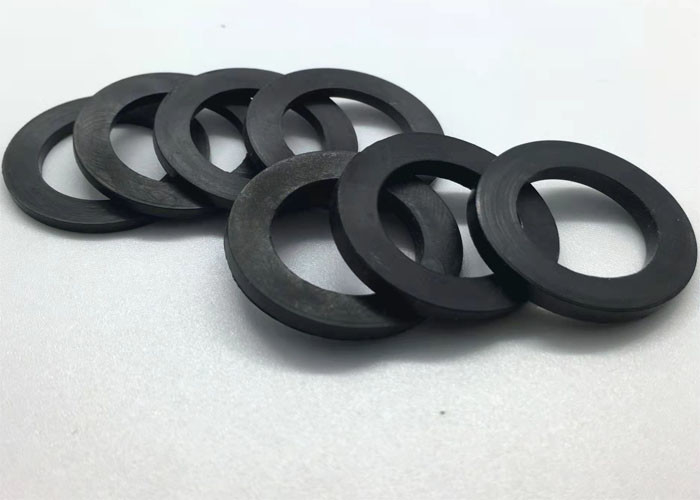

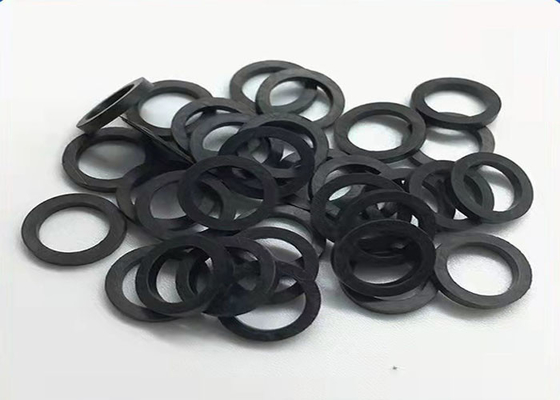

Silicone Rubber High Rebound Air Filter Seal , Polyurethane O Ring Oil Resistant

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-63-3

Payment & Shipping Terms:

Minimum Order Quantity:	5 Rolls
Price:	Negotiable
Packaging Details:	Insulated plastic outer carton
Delivery Time:	20 days
Payment Terms:	L/C, T/T
Supply Ability:	25 Roll/Rolls per Week

Contact Now

Detailed Product Description

Product Name:	Air Filter Seal	Color:	Colorful
Item:	Rubber Part	Hardness:	20-90 Shore A
Style:	O Ring	Feature:	Oil Resistance
Product Use:	Dust Removal Seal And Guide Ring	Application:	Sealing Industry Dust Removal Equipment
Texture Of Material:	It Is Made Of Neoprene, Nitrile Rubber And Other Materials	Applicable Industries:	Filter Cover， Manufacturing Plant, Machinery Repair Shops
High Light:	oil resistant polyurethane o ring , high rebound air filter seal , high rebound polyurethane o ring

Environment Friendly Polyurethane O-Ring, Oil Resistant Silicone Rubber Air Filter Seal

1. Specification parameters

• Abrasion resistant

• High rebound

• Low compression set

• High load capacity

• High temperature

• Excellent dynamic mechanical formulation

• Oil resistance

• Solvent resistance

• Hydrolysis resistance

• Fire retardancy , anti-static, antioxidant, mildew resistance, anti-aging, lubrication and many more…

The rubber strip is a kind of strip-shaped colloid used for bonding, repairing or making glue between tires and treads. It has a unique cold-resistant and heat-resistant process formula. It has excellent air-tightness, so that the repaired tire can adapt to all-weather conditions. Various road environments can effectively improve the wear resistance and service life of retreaded tires, and at the same time make the retreaded tires more beautiful.

2. Data Sheet

Rubber material	Letter abbreviation	hardness	temperature	Attributes
Nitrile rubber	NBR	standard 70° customizable 40°~90°	Limit temperature -40°~120℃	Oil resistant wear resistant
Viton	FKM/VITON	standard 75° customizable 50°~90°	Limit temperature -40°~240℃	High temperature resistant Oil resistant Chemical resistance
Silica gel	SIL/VMQ	standard 70°OR60° customizable 40°~90°	Limit temperature -60°~250℃	High temperature resistant Low temperature resistant Avirulent insipidity Food grade
EPDM	EPDM	standard 70° customizable 40°~90°	Limit temperature -40°~150℃	Strong acid and alkali resistance Resistant to 150° steam anti-aging Resistance to ozone
Hydrogenated nitrile	HNBR	standard 70° customizable 40°~90°	Limit temperature -40°~150℃	Wear oil resistantResistance to cold media Polar-resistant solvent The deformation resistance
Chlorosilicone rubber	CR	standard 70° customizable 40°~90°	Limit temperature -40°~120℃	Ozone resistant Weather resistance Chemical resistance Anti-aging
Fluorosilicone rubber	FVMQ	standard 70° customizable 45°~70°	Limit temperature -60°~177℃	Oil resistance, acid and alkali resistance Heat resistance, cold resistance, high voltage resistance, atmospheric aging resistance, hydrocarbon solvent resistance
Perfluoroether rubber	FFKM	standard 75° customizable 50°~90°	conventional 250℃ Special formula 320°~330℃	Very excellent performance, can almost be used in all kinds of bad conditions, PTFE as excellent high temperature resistance, chemical resistance, corrosion resistance, can resist all kinds of solvents, while having the elasticity of rubber
PTFE	PTFE/F4	Generally 55°~65°	Generally -80°~260℃ Reachable -190°~260℃	Corrosion resistance, wear resistance, high temperature resistance, low temperature resistance, aging resistance, high pressure resistance, organic solvents (almost insoluble in all organic solvents)

3.Why choose us ?

• Quick response in 12 hours

• Reliable imported raw material

• Strict analysis and testings on raw material before production

• Assistance from first idea through prototype

• First prototype inspection after mould and before volume production

• Quick delivery of prototypes or production needs

• Design assistance and parts consolidation

• In-house mold design (Insert, polyurethane, urethane molding)

• In-house formulations to provide the best possible urethane for your application

• Low-cost tooling

• Over 20 years of in-house experience

• Reliable after-sales service and support

4. FAQ

Q: What's the MOQ(Minimum Order Quantity)?
A: All filter products : MOQ = 300 pcs

Q: Could we apply samples?
A: You can easily contact us by E-mail, Skype, or telephone to make further arrangement for our samples.

Q: What's your terms of packing?
A: Covered with PE bags, outer brown carton and we could be customized for your request.

Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q: What are the payment terms?
A: T/T, Western Union, Cash, L/C. First time buyer transaction: Cash Payment or at least 7 days at sight. Please pay some deposit of payment in advance, if payment ≥ 35,000 USD, 30% deposit in advance, balance before shipment.

Q: What is your loading port, terms of delivery and delivery time?
A: 1. Ningbo Port 2. FOB 3. Generally two weeks upon two weeks upon receipts of the deposit. If you have special requirement of delivery, please let us know.

5. Installation method

Put the sponge cover on the split ends, and evenly apply about 0.5mm of grease on the inner circumference. After removing the sponge sheath, apply a special adhesive to the section mold under the split. The butt split surface is pressed tightly and held for 10 to 20 seconds.

6. matters needing attention

Before installing the seal ring, it is necessary to carefully check the surface finish of the seal ring, especially the installation touch layer. Generally, the installation surface is required to be smooth and clean. If there are burrs and unevenness on the surface of the seal, it is not recommended to use it.
