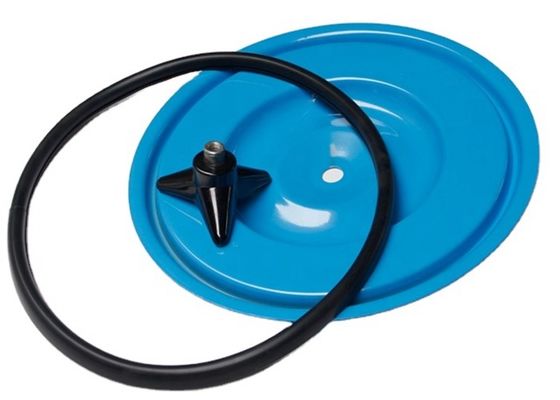

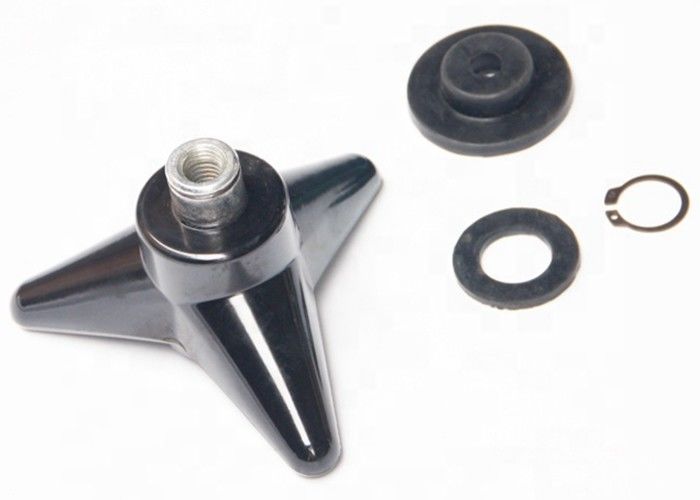

Three Piece Anti Spray Air Filter Covers Plate With Round Rubber Ring Triangular Handle

Three Piece Cover Plate With Round Rubber Ring Triangular Handle Filter End Caps





1. Product Description





  A cover, cover or top used to close or cover the end or top of the cross-section of a container, box or structure. The first layer of wood or waterproof material on the outer wall of the wooden house or on the roof of the wooden house. The upper cover used in the CNC drilling of printed circuit boards. The main function of the cover plate is to improve the quality of drilling and increase the yield. It is an indispensable plate in the current printed circuit board CNC drilling process.





2. Specifications



There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.



Open Round End Cap with Tri-Bolt Holes
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.54	13.716
Outer height	0.5	12.7
Inner rim diameter	6.75	171.45
Open Round End Cap with Outer Lip
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner diameter	0.625	15.875
Outer height	0.368	9.3472
Lip	0.375	9.525
Open Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.5	12.7
Outer Height	0.5	12.7
Closed Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
outer height	0.5	12.7
Closed Round End Cap with Bolt Hole
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
Outer height	0.5	12.7
Bolt Hole	0.625	15.875
Open Round End Cap with Flange
	Inches	Millimeters
Outer diameter	5.75	146.05
Inner diameter	2.5	63.5
Inner height	0.5	12.7
Outer height	0.278	7.0612
Closed Round End Cap
	Inches	Millimeters
Outer diameter	5.25	133.35
Inner diameter	2.5	63.5
Inner height	0.875	22.225
Outer height	0.172	4.3688



3. Characteristics



Product Name	OEM Filter End Caps
Material	Galvanized steel, stainless steel, anti-fingerprint, copper/brass, etc customized
Thickness	0.30 mm to 3.00 mm
Outer Diameter	20.00 mm to 1000 mm
Types	Open/closed, with/without holes, customized
Delivery Time	According to customer's requirement
Packing	Polybag/Piece or customized
Applications	Dust filters, air filter, fuel filter, oil filter, air compressor, water filter, activated carbon filters cartridges, etc.
OEM	Available
Quality Control	ISO Certification
After-sale Service	Product test report, online follow-up.



4. Applications



Changfeng supplied filter end caps/filter covers are widely used for dust filters, air filters, oil filters, fuel filters, activated carbon filter cartridges.



5. Product advantage



25 years' experience in producing filter end caps.
2. Accurate size according to customer requirements
3. Ensure the filters have a longer life with excellent heat and chemical resistance.
4. Effectively improve the capacity of the filter material.
5. Various exist mold to save your cost.
6. Qualified raw materials with certifications to make the filter caps.

6. Service

we can provide a free sample with our catalog. But the courier charge will on your side. We'll send back the courier charge if you make an order.



7. Technology



  Spiral installation: commonly used in the market for industrial dust filter installation method, applicable to the vertical, horizontal and Oblique installation of the filter cartridge, namely the dust collector panel of the welded scaffold, and extend to the height of the filter cartridge. After the scaffold, weld a screw rod at the joint. When installed, the filter cartridge is internally passed through the screw and the scaffold, and the top part of the filter cartridge is passed through the screw and the scaffold. The sealing ring contacts the mounting plate of the dust collector. At this point, in the industrial dust filter at the bottom of the installation hole to find the screw Rod (screw rod and bracket height and length should be moderate) . The screw thread is then screwed through the rotation of the nut so that the industrial dust filter element is completely fixed and the sealing ring is in complete contact with the mounting plate.



8. FAQ



1.Certificates:

RoHs,UL,SGS,MSDS,DIN53438

2.Payment terms:

50% deposit upon getting the order,balance against the B/L copy.

3.Delivery date:

About 7 working days(≤500pcs), special order is negotiable to be quicker.

4.Sample Terms:

We can supply 1-2 small samples for tree but express cost is covered by your side.

5.Minimum Order Quantity:

No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.

6.Price Terms:

EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.

7.Lead time:

3 Days for a 40ft container, weeks for two 40ft container.



9. Method of operation



This product is a sealing product at both ends of the filter element, which can be stuck with specific glue.



10. Note:



  Speaking of making air filter, we first think of is the Outer Net, the outer net in the process of cutting must calculate the size, so convenient in the welding process can be completed quickly. So how to calculate the size of the outer net? In fact, we all know that the general air filter is circular, the calculation of the net formula is: diameter x Pi {3.14} through this formula we can get the exact circumference of the net, in addition to the corresponding lap, it is OK!



11. Production Process and Packing



There is the production process of expanded metal mesh. We can see that there are strict procedures from raw materials to finished products. Chang feng could provide production visualization service for clients, which ensures customers can grasp the production schedule in time.



12. Company introduction



Hebei Anping Changfeng filter material Co., Ltd. is a solid factory for 25 years. Our company is a modern enterprise which produces and sells filter core raw materials, filter equipment and screen deep processing filter industry. After 25 years of efforts, it has gradually developed and expanded, with more than 300 engineers, technicians and workers. Our factory covers an area of 30 mu. 4 large workshops of 1000 square meters, two workshops of 500 square meters, with 30 press, 12 CNC punch machines, hydraulic press and lathe and other filter equipment welding machines.

The main products are: air filter equipment and all filter raw materials. Air filter, end cover, glue, filter paper, filter screen, rubber filter ring, rubber filter end cover mold, frame, filter equipment and other models are complete, high quality. The filter performance of automatic filter is high (good cleaning effect), automatic calorimeter (large capture quantity). It has long oscillation and high durability, which will not cause dust leakage. Water resistance, no blocking air entry, easy and light loading and unloading. In addition, there are screen deep processing filter products, oil and fuel engineering machine finished filter, petroleum ore screen pipe and other screen products. The company's products are sold to Russia, Britain, Africa, Australia and Southeast Asia and the Middle East and many other countries, well received by customers. Our company has a complete and scientific quality management system. The products are of good quality and various specifications. We uphold the business philosophy of "honesty, good quality, customer first", and in the spirit of mutual benefit, we are willing to establish good business relations with businesses all over the world. In the face of increasingly fierce market competition, the company carries out all staff training, cultivates talents, changes ideas, improves, strengthens cultivation, adjusts strategies, transforms local advantages into the core competitiveness of survival first and development later, so as to maintain a stable development momentum and meet challenges in the new century. Anping Changfeng filter material Co., Ltd. is recognized by customers for its integrity, strength and product quality. We should be responsible for every customer and every product.

Hebei Anping Changfeng Co., Ltd. is located in No.5 filter material city, Anping County, Hebei Province, which is "the hometown of China international silk screen". It is adjacent to Beijing, Tianjin, Shijiazhuang, Baoding, Hengshui and other large and medium-sized cities, with superior geographical location and developed transportation and logistics. It is 250 kilometers away from Beijing Capital Airport and 200 kilometers away from Tianjin port. Welcome friends from all over the world to visit, guide and business negotiation. We will serve you wholeheartedly.
