Sintered Element Air Filter For Plastic Spraying Gray Punching Hole Equipment

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-54-86

Payment & Shipping Terms:

Minimum Order Quantity:	10 / set
Price:	Negotiable
Packaging Details:	covers' packaging: 1.Plastic sheets inside 2.PP Woven bag outside 3.According to your requiry
Delivery Time:	8-10 work days
Payment Terms:	L/C, T/T
Supply Ability:	5000 Set/Sets per Week filter end caps 5000 sets/week

Contact Now

Detailed Product Description

Product Name:	Filter End Caps	Surface Treatment:	Spray
Thickness:	0.5-1.5	Core Components:	Bearing, Pump
Packing Type:	Bags Or Cartons	Marketing Type:	New Product 2020
Applicable Industries:	Food And Beverage Factories,	Weight:	0.1-2kgs, 2-20KG, 750kg, 1-100kg
Material:	Galvanized, Metal, Steel, Anti-fingerprint	Dimension:	It Can Be Customized According To Requirements
High Light:	sintered element air filter , spraying gray punching element air filter , sintered air filter element

Special Cover For Plastic Spraying Gray Punching Hole Filtering Equipment Filter End Caps

1. Product Description

The hydraulic oil filter element is mainly made of stainless steel woven mesh, sintered mesh, iron woven mesh and. Because the filter materials used are mainly glass fiber filter paper, chemical fiber filter paper and wood pulp filter paper, it has the characteristics of high concentricity, high pressure bearing, good straightness, stainless steel without any burr and long service life, Its structure is made of single-layer or multi-layer metal mesh and filter material. In specific use, the number of layers and the mesh constituting the mesh are determined according to different service conditions and uses.

2. Specifications

There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.

Open Round End Cap with Tri-Bolt Holes
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.54	13.716
Outer height	0.5	12.7
Inner rim diameter	6.75	171.45
Open Round End Cap with Outer Lip
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner diameter	0.625	15.875
Outer height	0.368	9.3472
Lip	0.375	9.525

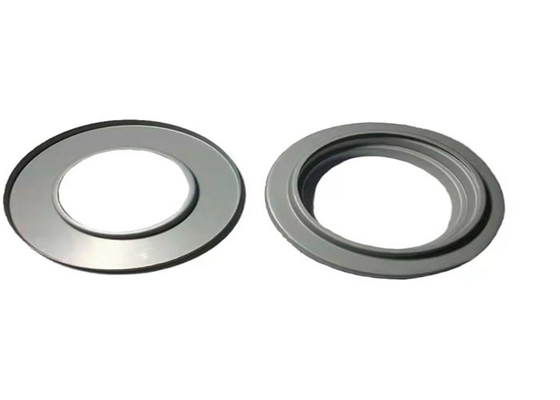

Open Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.5	12.7
Outer Height	0.5	12.7

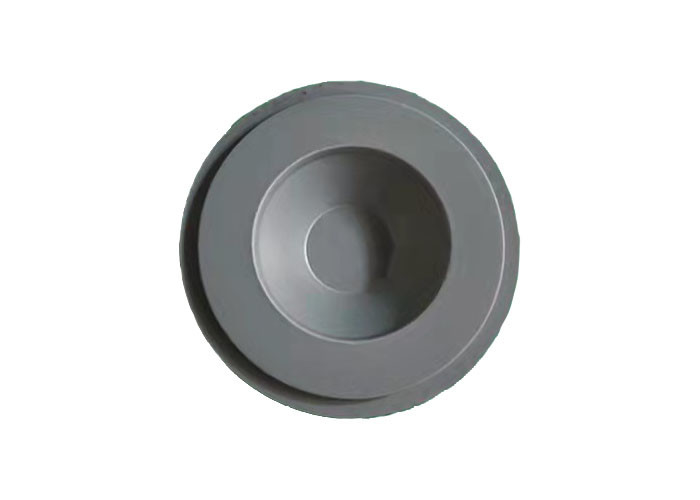

Closed Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
outer height	0.5	12.7
Closed Round End Cap with Bolt Hole
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
Outer height	0.5	12.7
Bolt Hole	0.625	15.875
Open Round End Cap with Flange
	Inches	Millimeters
Outer diameter	5.75	146.05
Inner diameter	2.5	63.5
Inner height	0.5	12.7
Outer height	0.278	7.0612
Closed Round End Cap
	Inches	Millimeters
Outer diameter	5.25	133.35
Inner diameter	2.5	63.5
Inner height	0.875	22.225
Outer height	0.172	4.3688

3. Product advantage

The end cover and internal and external protection net of hydraulic oil filter element adopt high-quality electrolytic plate, which not only has good strength, but also has good anti rust and anti-corrosion performance. The inner and outer protective nets adopt advanced connection technology, which does not damage the metal surface of the protective net, so as to further strengthen the anti rust and anti-corrosion performance of the hydraulic oil filter element. At the same time, the filter material of the hydraulic oil filter element is not damaged by the protective net.

4. Matters Needing Attention

When it comes to making an air filter, the first thing everyone thinks of is the outer net. The outer net must be dimensioned during the cutting process, so that the process can be completed quickly when welding. So how do you calculate the size of the external network? In fact, everyone knows that the general air filter element is circular. The formula for calculating the outer net is: diameter through this formula we can get the exact circumference of the outer net, and add the corresponding edge, That's it!
