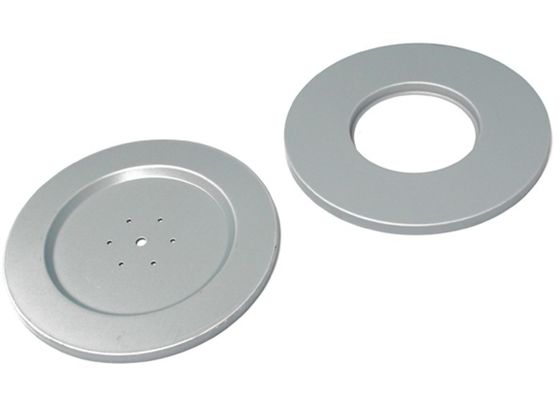

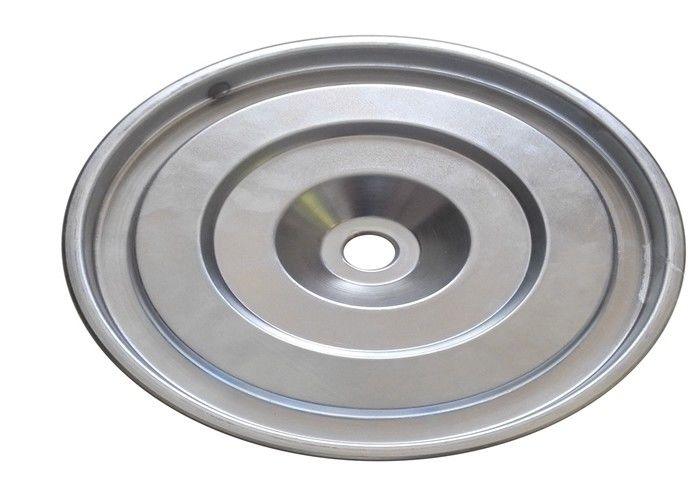

Cold Rolled Od 20mm Filter End Caps Square Circular Punching

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-56-86

Payment & Shipping Terms:

Minimum Order Quantity:	10 / set
Price:	Negotiable
Packaging Details:	covers' packaging: 1.Plastic sheets inside 2.PP Woven bag outside 3.According to your requiry
Delivery Time:	8-10 work days
Payment Terms:	L/C, T/T
Supply Ability:	5000 Set/Sets per Week filter end caps 5000 sets/week

Contact Now

Detailed Product Description

Product Name:	Filter End Caps	Core Components:	Bearing, Pump
Brand Name:	CHANGFENG	Size:	Customzised
Place Of Origin:	Hebei, China	Warranty:	3 Months
Dimension:	As Your Requirements	Thickness:	0.30 Mm To 3.00 Mm,
Outer Diameter:	20.00 Mm To 1000 Mm,	Packing Type:	Binding Rope Or Woven Bag
High Light:	od 20mm filter end caps , od 20mm air filter covers , sintered mesh filter end caps

Cold Rolled Square Circular Punching Upper And Lower Covers Filter End Caps

1. Product Description

The hydraulic oil filter element is mainly made of stainless steel woven mesh, sintered mesh, and iron woven mesh. Since the filter material it uses is mainly glass fiber filter paper, chemical fiber filter paper, and wood pulp filter paper, it has high concentricity and can withstand high pressure. , Good straightness, stainless steel material, without any burrs, to ensure the characteristics of long service life, its structure is made of single-layer or multi-layer metal mesh and filter material, and its number of layers and composition wire mesh in specific use The number of meshes depends on different conditions of use and purpose.

2. Specifications

Open Round End Cap with Tri-Bolt Holes
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.54	13.716
Outer height	0.5	12.7
Inner rim diameter	6.75	171.45
Open Round End Cap with Outer Lip
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner diameter	0.625	15.875
Outer height	0.368	9.3472
Lip	0.375	9.525
Open Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.5	12.7
Outer Height	0.5	12.7
Closed Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
outer height	0.5	12.7
Closed Round End Cap with Bolt Hole
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
Outer height	0.5	12.7
Bolt Hole	0.625	15.875
Open Round End Cap with Flange
	Inches	Millimeters
Outer diameter	5.75	146.05
Inner diameter	2.5	63.5
Inner height	0.5	12.7
Outer height	0.278	7.0612
Closed Round End Cap
	Inches	Millimeters
Outer diameter	5.25	133.35
Inner diameter	2.5	63.5
Inner height	0.875	22.225
Outer height	0.172	4.3688

3. Product advantage

We are a physical factory with 25 years of experience in production. We are strict with our products and pay attention to the quality and production as well as the details of the products. We promise that no middleman will make any profit from it, all the prices reported to you are ex-works prices.

4. Installation method

Spiral installation: The commonly used industrial dust filter installation method in the market is suitable for vertical, horizontal and oblique installation of the filter cartridge, that is, the welding scaffold of the dust collector panel, and extends to the height of the filter cartridge. Finally, weld a screw at the joint of the scaffold. During installation, the inside of the filter cartridge passes through the screw and scaffold, and the top of the filter cartridge passes through the screw and scaffold. The sealing ring is in contact with the mounting plate of the dust collector. At this time, find the threaded rod in the bottom mounting hole of the industrial dust removal filter element (the height and length of the threaded rod and the bracket need to be moderate). Then tighten the thread through the rotation of the nut, so that the industrial dust filter element is completely fixed, and the sealing ring is in complete contact with the mounting plate.
