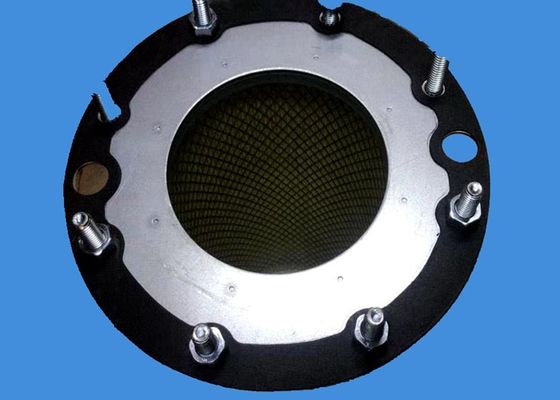

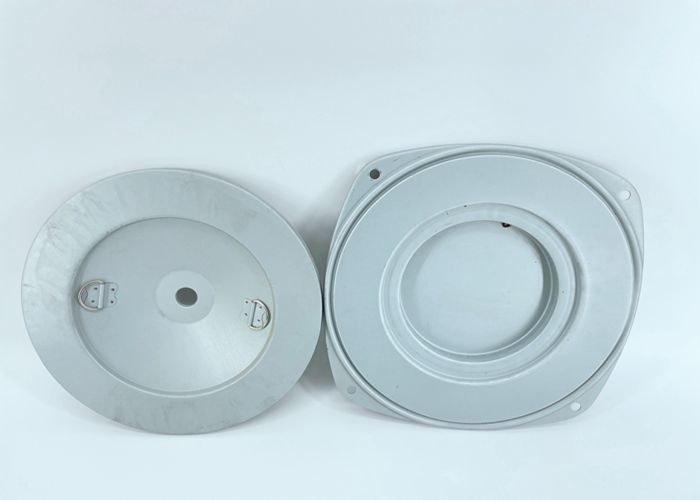

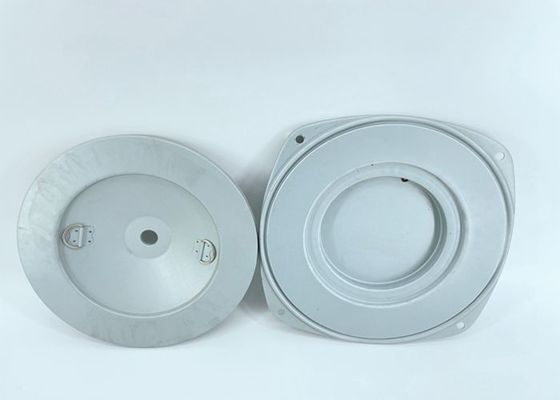

Chrome Air Filter Cover ISO9001 Approved 12.75 Inches Outer Diameter Zinc Plated

Chrome Air Filter Cover ISO9001 Approved 12.75 Inches Outer Diameter Zinc Plated

  • Chrome Air Filter Cover ISO9001 Approved 12.75 Inches Outer Diameter Zinc Plated
  • Chrome Air Filter Cover ISO9001 Approved 12.75 Inches Outer Diameter Zinc Plated
Chrome Air Filter Cover ISO9001 Approved 12.75 Inches Outer Diameter Zinc Plated
Product Details:
Place of Origin: An Ping China
Brand Name: ChangFeng
Certification: ISO9001
Model Number: 9009-54-84
Payment & Shipping Terms:
Minimum Order Quantity: 10 / set
Price: Negotiable
Packaging Details: covers' packaging: 1.Plastic sheets inside 2.PP Woven bag outside 3.According to your requiry
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 Set/Sets per Week filter end caps 5000 sets/week
Contact Now
Detailed Product Description
Product Name: Filter End Caps Core Components: Bearing, Pump
Size: Customzised Place Of Origin: Hebei, China, Hebei
Warranty: 3 Months MOQ: 50 PCS
Dimension: As Your Requirements Type: Air Filter Cartridge End Caps
Outer Diameter: 20.00 Mm To 1000 Mm, Or Customized Surface Treatment: Zinc-plated/powdered/anti-fingerprint/plastic Spraying Or Else
High Light:

ISO9001 chrome air filter cover

,

12.75 Inches air filter covers

,

Zinc plated air filter covers

OEM Processing Metal Material, Filter Accessories, Filter Element Material Filter End Caps



1. Product Description



  The filter end cap is mainly used to seal both ends of the filter material and support the filter material to effectively improve the bearing capacity of the filter material. Chang Feng has been specialized in metal filter end caps since 1996 with a wide range of existing molds for air filter end caps for the cartridge filter. We are able to advise customers on the best material proper thickness opt for. Welcome to contact us to have further discussion.



2. Specifications



There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.



Open Round End Cap with Tri-Bolt Holes
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner height 0.54 13.716
Outer height 0.5 12.7
Inner rim diameter 6.75 171.45
Open Round End Cap with Outer Lip
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner diameter 0.625 15.875
Outer height 0.368 9.3472
Lip 0.375 9.525
Open Round End Cap
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner height 0.5 12.7
Outer Height 0.5 12.7
Closed Round End Cap
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.375 212.725
Inner height 0.5 12.7
outer height 0.5 12.7
Closed Round End Cap with Bolt Hole
  Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.375 212.725
Inner height 0.5 12.7
Outer height 0.5 12.7
Bolt Hole 0.625 15.875
Open Round End Cap with Flange
  Inches Millimeters
Outer diameter 5.75 146.05
Inner diameter 2.5 63.5
Inner height 0.5 12.7
Outer height 0.278 7.0612
Closed Round End Cap
  Inches Millimeters
Outer diameter 5.25 133.35
Inner diameter 2.5 63.5
Inner height 0.875 22.225
Outer height 0.172 4.3688






3. Product advantage



25 years' experience in producing filter end caps.
2. Accurate size according to customer requirements
3. Ensure the filters have a longer life with excellent heat and chemical resistance.
4. Effectively improve the capacity of the filter material.
5. Various exist mold to save your cost.
6. Qualified raw materials with certifications to make the filter caps.

4. Service

we can provide a free sample with our catalog. But the courier charge will on your side. We'll send back the courier charge if you make an order.



5. Technology



Ensure the filters have a longer life with excellent heat and chemical resistance.
Effectively improve the capacity of the filter material.

Various exist mold to save your cost.

Metal raw materials use stamping technology to achieve the desired shape and effect of the product.





Chrome Air Filter Cover ISO9001 Approved 12.75 Inches Outer Diameter Zinc Plated 0Chrome Air Filter Cover ISO9001 Approved 12.75 Inches Outer Diameter Zinc Plated 1Chrome Air Filter Cover ISO9001 Approved 12.75 Inches Outer Diameter Zinc Plated 2

Chrome Air Filter Cover ISO9001 Approved 12.75 Inches Outer Diameter Zinc Plated 3

Chrome Air Filter Cover ISO9001 Approved 12.75 Inches Outer Diameter Zinc Plated 4Chrome Air Filter Cover ISO9001 Approved 12.75 Inches Outer Diameter Zinc Plated 5Chrome Air Filter Cover ISO9001 Approved 12.75 Inches Outer Diameter Zinc Plated 6
