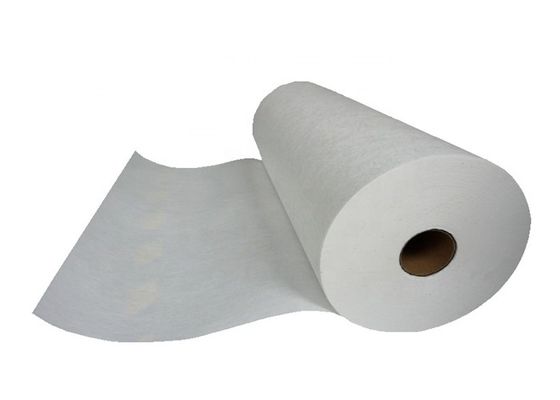

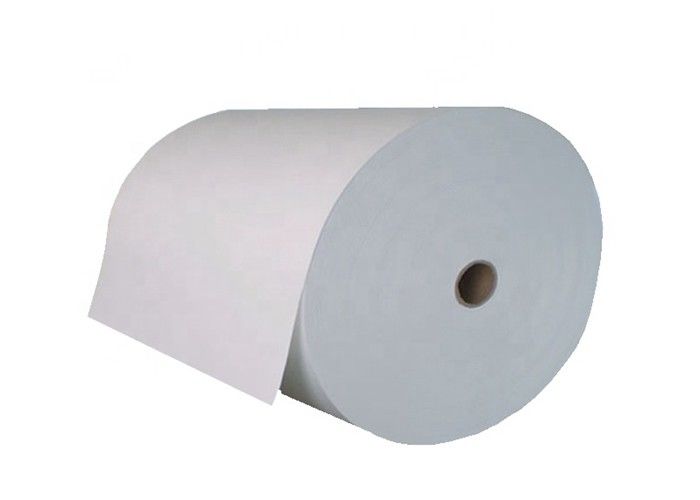

H11 H12 H13 H14 0.3um PP+PET Filter Paper HEPA Filter Paper
1. Product introduction
Glass microfiber filter media, comprised primarily of glass microfibers, is produced with a wet laid process which is similar to that used in the production of paper. Our offerings range from various ASHRAE grades (F6-F9), HEPA grades (H10-H14) to ULPA grades (U15-U16) with exceptional dust holding performance and provide with the highest available efficiency at a minimal resistance to air flow. Our products are available in a laminated form to meet special air filtration requirements.
Applications: Industrial Cleaning Rooms, Food Processing, Hospital Operating Rooms, Genetic Research, Nuclear Containment, Pharmaceutical Processing, Chemical Processing, Compressor Inlet Filtration, Equipment Intake/Exhaust Air, Gas Turbine Air Intake, High-Temperature Industrial, HVAC System, Paint Spray Booth, Prefiltration for HEPA Systems, etc.
2. Parameter table
| Classification |
Grade |
Efficiency(≥%) |
Basic Weight
(+-5g/m2) |
Thickness
(±0.02mm)
@100kpa
|
Air Resistance
Pa @5.3cm/s |
Tensile
Strength
|
Stiffness
( ≥mg)
MD
|
|
(+-200N/M)
MD
|
| ULPA |
HZO -U17 |
99.9999 |
73 |
0.37 |
500+-20 |
1200 |
1000 |
| HZO-U16 |
99.9999 |
73 |
0.37 |
440+-20 |
1200 |
1000 |
| HZO -U15 |
99.999 |
73 |
0.37 |
390+-20 |
1200 |
1000 |
| HEPA |
HZO -H14 |
99.995 |
70 |
0.34 |
340+-20 |
1200 |
1000 |
| HZO -H13 |
99.97 |
70 |
0.34 |
290+-20 |
1200 |
1000 |
| HZO -H12 |
99.8 |
70 |
0.34 |
250+-20 |
1200 |
1000 |
| HZO -H11 |
98 |
70 |
0.34 |
120+-20 |
1200 |
1000 |
| HZO -H10 |
94 |
70 |
0.34 |
80+-15 |
1200 |
1000 |
| ASHRAE |
HZO -F9 |
85 |
70 |
0.34 |
55+-10 |
1200 |
1200 |
| HZO -F8 |
55 |
70 |
0.34 |
35+-5 |
1200 |
1200 |
| HZO -F7 |
40 |
70 |
0.34 |
33+-5 |
1200 |
1200 |
| HZO-F6 |
30 |
70 |
0.33 |
20+-5 |
1200 |
1200 |
3. Product characteristics
1. High efficiency
2. Low resistance
3. Light weight and easy pleated
4. Material safe, non-toxic and odorless
5. Different color and size available for all types of air filter
4. Technology
1. Efficiency and Air Resistance were tested by TSI8130, 0.3µm 5.33cm/s
2. Other specification is also available according to customer's requirement or sample. Dimensions and packing conditions can be selected.
5. Service
1. Making the sample until you are satisfied with it.
2. Providing production schedule photos to ensure you know every process.
3. Offering professional one-on-one service and replying your E-mail within three hours
4. Shipment sample for checking before shipment.
5. Priority to get the our latest product information after our cooperation
6. FAQ
1.The Material?
100%polyester,100% viscos,polyester mix viscos
2.Worked Temperature?
-40℃-150℃
3.The roll Size?
Could according your requirement,generally 100m-1000m
4.Quality Control?
No splice,no hole,with the test report each shipment
5.Sample
Yes,free sample(about 50M),freight collect.
