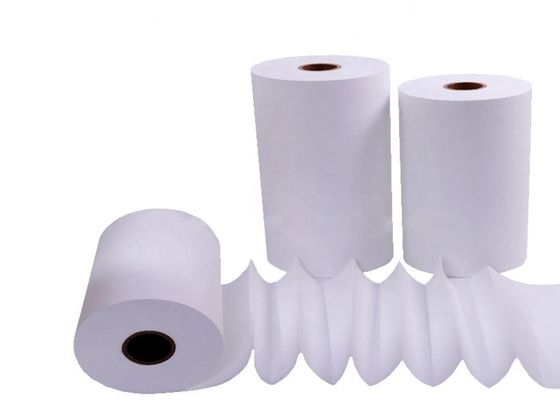

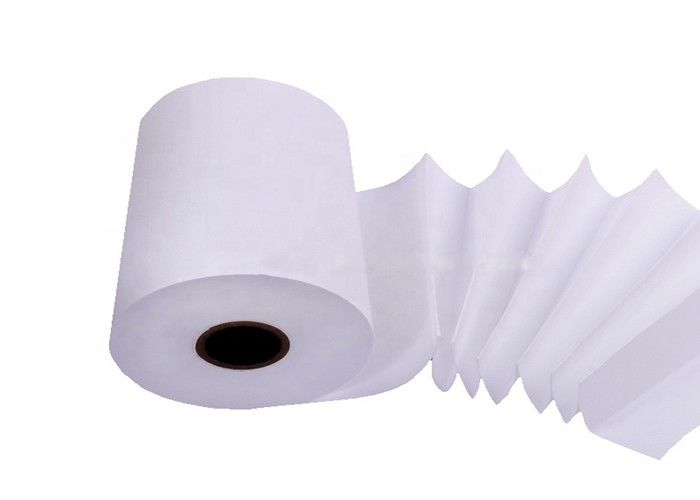

Glass Microfiber Hepa Filter Cloth By The Yard 0.5mm Thickness

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	9009-55-2

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Kilogram/Kilograms(Min. Order)
Price:	Negotiable
Packaging Details:	Vacuum Cleaner Cooking Oil The Truck Air Filter Paper 1,Inner Packing:Plastic Film 2,Middle Packing:Craft Paper 3,Outer Packing:Plastic Film 4,top and bottom Packing:Paper pallet 5,20ft can load 5.5-6 tons 6,40HQ can load 13.5-16 tons (110 g Hepa Roll Filt
Delivery Time:	1 - 5000 Est. Time15(days)
Payment Terms:	L/C, T/T
Supply Ability:	30 Ton/Tons per Quarter

Contact Now

Detailed Product Description

Product Name:	HEPA Filter Paper	Certification:	ISO9001&ISO14000
Type:	Quantitative	Usage:	Air Filter
Thickness:	0.5mm	Color:	White
MPPS[um:	2	Penetration[%:	2
Properties:	High Dust Holding Capacity,good Pleating Durability	Application:	Aviation,marines,heavy-duty Machineries,nuclear Power Stations,etc
High Light:	hepa filter material roll , 0.5mm hepa filter cloth by the yard , Glass Microfiber hepa filter cloth by the yard

ISO9001&ISO14000 Air Filter Glass Fiber HEPA Filter Paper

1. Product introduction

Glass fiber filter media are comprised primarily of glass microfibers and are produced by wet laid process. It is ideal media for air filtration. Our offers range from various ASHRAE grades (F6-F9), HEPA grades (H10-H14), to ULPA grades (U15-U17)

2. Parameter table

No minal size	Actual size	Thickness	Protective net	Rated air volume	surface air speed	Rated initial resistance


(inch)	(mm)	(mm)		(m3h)	(mls)		(Pa)
WxHxD	W×H×D						H13	H14	u15	u16
2×2	570×570	50	Double-sided protective net	367	0.35		108	115	135	148

2×4	1170x570	50	Double-sided protective net	775	0.35		1o8	115	135	148

2×1	610×305	5o	Double-sided protective net	20o	0.35		108	115	135	148

	610×610	50	Double-sided protective net	423	0.35	1o8		115	135	148

2.5×2	762x610	5o	Double-sided protective net	535	0.35	108		115	135	148

3x2	915×610	50	Double-sided protective net	646	0.35	1o8		115	135	148

4×3	1170×870	50	Double-sided protective net	1206	0.35	108		115	135	148

4x4	1170×1170(with	5o	Double-sided protective net	1637	0.35	108		115	135	148
	ribs)
	570×570	70	Double-sided protective net	472	0.45	1oo		11o	125	140

4×2	1170×570	7o	Double-sided protective net	1oo0	0.45	1oo		11o	125	14o

2×1	610×305	7o	Double-sided protective net	258	0.45	1oo		11o	125	140

2×2	610×610	7o	Double-sided protective net	545	0.45	1oo		11o	125	14o

Resistance [Pa]	108.61
Penetration[%]	0.002973
Efficiency[%]	99.997027
MPPS[um]	0.15518

3. Product characteristics

Uniform fiber dispersion

Exceptional dust holding performance

High efficiency

Minimal resistance to air flow.

4. Product use

ASHRAE grades (F6-F9): ordinary air-conditioning system, gas turbine air intake, air compressor, etc

HEPA grades (H10-H14): 10,000 to 100,000 grade cleaning rooms or working places, air exhauste equipment for nuclear, high-grade household vacuum cleaner, air purifier, masks, etc

ULPA grades (U15-U17): chip factories, 100, 10 even 1 grade cleaning rooms, etc.
