Heavy Duty Air Filters Material White Polypropylene Polyurethane Mould

Product Details:

Place of Origin:	An Ping China
Brand Name:	Chang Feng
Certification:	ISO9001
Model Number:	CF-22

Payment & Shipping Terms:

Minimum Order Quantity:	50 / set
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	8-10 work days
Supply Ability:	1000 Set/Sets per Day

Contact Now

Detailed Product Description

Product Name:	PU Filter Mould	Place Of Origin:	Hebei,China
Material:	PP	ISO:	ISO9001
Color:	White	MOQ:	50 SETS
Sample:	OK	Size:	OEM/ Customer Settings
Shaping Mode:	Plastic Injection Mould
High Light:	Polyurethane Mould Air Filter Element Material , ISO9001 PU Mould Air Filters Material , polypropylene Mould Air Filters Material

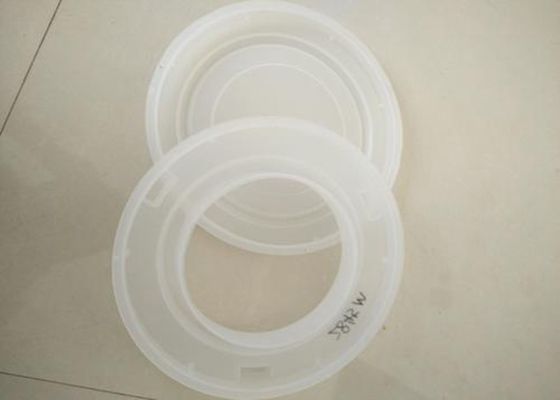

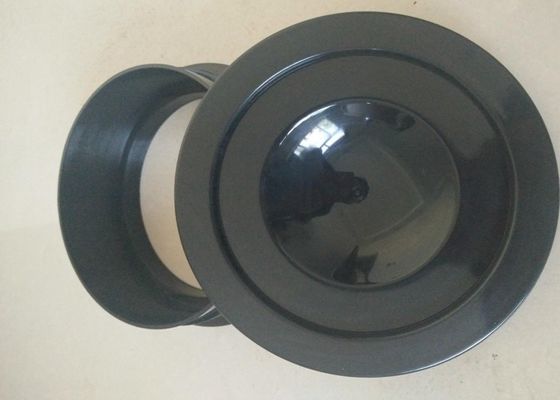

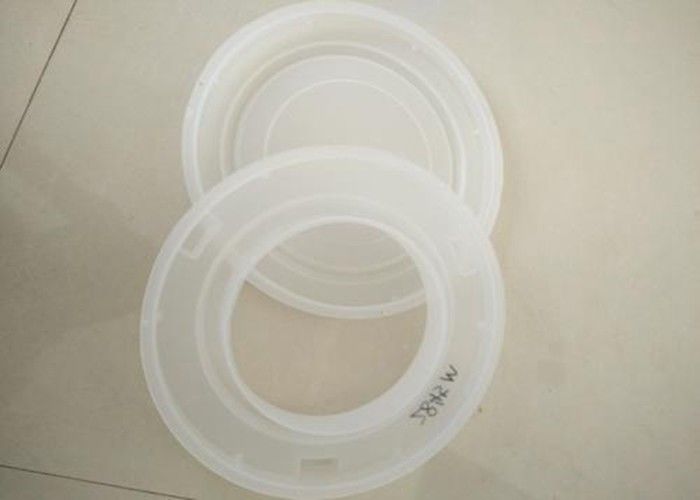

Heavy-Duty Air Filter Element Material PP PU Material Mold Is Used To Make Filter Element End Cover

1. Product introduction

Air filter is widely used in many kinds of automobile and engineering equipment. In order to work smoothly, all machines need to replace the filter.

To make the filter, Pu mold is inevitable. High quality Pu mold can be reused up to 80 times, greatly reducing the cost of the filter. Pu mold is made of plastic PP material. Our company purchases high-quality raw materials to meet the quality requirements of customers at home and abroad.

2. Parameter table

Model	OEM		Application	Size(HODID)
2833	61-250161-2502		SAIC Motor D6114 950	327×φ279×φ149φ150×110
2841	1109070-50A		FAW	412×φ281×φ198 φ179×125
3047	81.08304.0094 81.08304.0086		SHACMAN D2866 33373	472×φ305×φ168 464×φ169×φ129
3245	A-9903A-9904		Chunlan Truck	450×φ318×φ207φ208×155
2332	C23632/1		JAC	320×φ227×φ116φ115×100
2845D	1-14215203-0		CXZ/CYZ Stirrer	453×φ280×φ176
1534			2000 NAVECO	Φ150×78
1330			HCFHYUNDAI 310 Excavator	304×φ128×φ82φ83
1027	P82-1517P82-2858		Forklift	265×φ106×φ61φ62
1826			KAMA	260×φ179×φ103
1432			CASCADE Forklift	320×φ139×φ82
2041	600-185-3110 611-185-3110		PC200-7 PC210-7	408×φ205×φ106 403×φ107
KU8464A/B	610273 610274	CASCADE Loader 980F		335×φ290×φ185 330×φ185
KU8145A/B	61-2503 61-2504	Excavator 235,235B,235C 769,769B,768C Loader		410×φ280×φ145 385×φ145
3055		Air Compressor		Φ296×200
1227		Air Compressor		Φ125×74
3662	A:106-3969 B:106-3973	CASCADE Generator		620×Φ363×Φ228,620×Φ231×Φ176
3047B		Volvo Generator		Φ305×Φ185
2242		916 Excavator		Φ225×182,Φ183×122
2851	A:DAF1295090 B:KALMAR923110.0578	DAF Truck 2CC Forklift		510×Φ280×Φ145, Φ145×495×Φ145

3. Method of operation

1. Before using glue every day, mix material a evenly with electric hand drill, and shake material B.

2. Turn on the electric heating plate and adjust the temperature to 40-50 ℃. In winter, preheat a and B materials in small containers.

3. Wipe the mold with mold release agent.

4. Mix a and B materials in the ratio of 100:40, then add 40% talc powder, and use 2800 RPM motor to stir the mixed glue solution. The stirring time is determined by the amount of glue, about 7-10 seconds per 100 grams of glue.

4. FAQ

1.Q:Can you provide free samples?
A:Sorry, Free samples are not available. But after you place the order, samples cost would be return. Which is "FREE" in some way.
2.Q:Can we have the company LOGO to be printed on the products?
A:Of course. Private Label is absolutely welcome.
3. Q: Can you give me a discount price?
A: It is depending on the volume. The larger the volume is, the more discount you can enjoy.

4.Q:How do you guarantee your quality ?
A: Our workers and technical employees are with many years experiences to ensure the products are good. After production finished,check will be made by quality inspector.

5. Q:How can you guarantee the quality of mass production is same with the sample sent to me before?

6. Q: How can you deal with quality issues that customers feedback after receiving the goods?
A: We will follow below steps to solve the quality issues the may occur.
1) Customers take photos of unqualified goods and then our sales staff will send them to Quality Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
